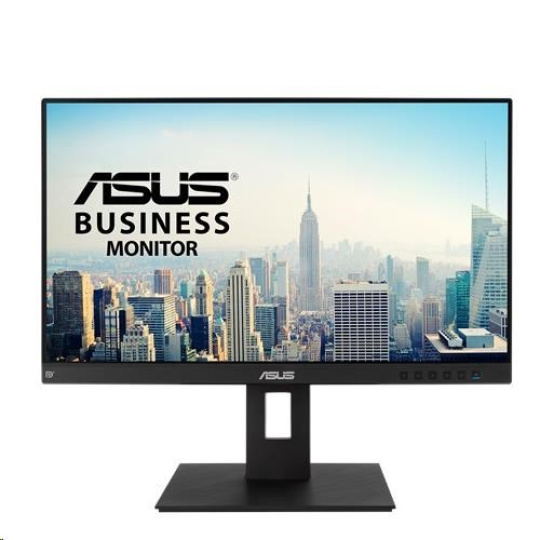

ASUS LCD 23.8" BE24EQSB 1920x1080 BUSINESS IPS VGA HDMI DP 300cd repro vesa10x10 Mini-PC Mount, PIVOT
Popis a parametry
ASUS LCD 23.8" BE24EQSB 1920x1080 BUSINESS IPS VGA HDMI DP 300cd repro vesa10x10 Mini-PC Mount, PIVOT
https://www.asus.com/Monitors/BE24EQSB/
ASUS BE24EQSB Business Monitor – 23.8 inch, Full HD, IPS, Frameless, Mini-PC Mount Kit, Flicker free, Low Blue Light, Ergonomic Stand Display
Panel Size: Wide Screen 23.8"(60.5cm) 16:9
Color Saturation : 72% NTSC
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 527.04 x 296.46 mm
Display Surface : Non-glare
Pixel Pitch : 0.275mm
Brightness(Max) : 300 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Flicker free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Video Intelligence Technology
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes ( Modes)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 55 ~96 KHz (H) /48 ~77 Hz(V)
Digital Signal Frequency : 55 ~96 KHz (H) /48 ~77 Hz(V)
Power Consumption
Power Consumption:<15W*
Power Saving Mode:<0.5W
Power Off Mode:0W(hard switch)
Voltage: 100–240V, 50 / 60 Hz
Mechanical Design
Chassis Colors : Black
Tilt : -5°~+35°
Swivel : +180°~-180°
Pivot : +90°~-90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension(with Stand)(WxHxD): 540x(332~462)x211mm (with stand)
Phys. Dimension(without Stand ,For VESA Wall Mount)(WxHxD): 540x330x47mm
Box Dimension (WxHxD): 649 x474x192mm
Weight
Net: 7.8kg (with stand) , 5.0kg (without stand),
Gross: 10.5 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable
Quick start guide
HDMI cable (Optional)
Warranty Card
MiniPC Kit (Optional)
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CEL level , CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, TUV-Ergo, TUV-GS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, TCO, ICES-3, PC recycle
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
.
ASUS BE24EQSB Business Monitor – 23.8 inch, Full HD, IPS, Frameless, Mini-PC Mount Kit, Flicker free, Low Blue Light, Ergonomic Stand Display
Panel Size: Wide Screen 23.8"(60.5cm) 16:9
Color Saturation : 72% NTSC
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 527.04 x 296.46 mm
Display Surface : Non-glare
Pixel Pitch : 0.275mm
Brightness(Max) : 300 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Flicker free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Video Intelligence Technology
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes ( Modes)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 55 ~96 KHz (H) /48 ~77 Hz(V)
Digital Signal Frequency : 55 ~96 KHz (H) /48 ~77 Hz(V)
Power Consumption
Power Consumption:<15W*
Power Saving Mode:<0.5W
Power Off Mode:0W(hard switch)
Voltage: 100–240V, 50 / 60 Hz
Mechanical Design
Chassis Colors : Black
Tilt : -5°~+35°
Swivel : +180°~-180°
Pivot : +90°~-90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension(with Stand)(WxHxD): 540x(332~462)x211mm (with stand)
Phys. Dimension(without Stand ,For VESA Wall Mount)(WxHxD): 540x330x47mm
Box Dimension (WxHxD): 649 x474x192mm
Weight
Net: 7.8kg (with stand) , 5.0kg (without stand),
Gross: 10.5 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable
Quick start guide
HDMI cable (Optional)
Warranty Card
MiniPC Kit (Optional)
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CEL level , CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, TUV-Ergo, TUV-GS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, TCO, ICES-3, PC recycle
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
.
ParametryPorovnání
Rozlišení displeje
1920x1080 (Full HD)
Rozhraní
3.5mm Jack
Výbava
Redukce modrého světla
Typ panelu
IPS
Úhlopříčka displeje (")
23,8
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
10,5
Jas (cd/m2)
300
ASUS LCD 23.8" BE24EQSB 1920x1080 BUSINESS IPS VGA HDMI DP 300cd repro vesa10x10 Mini-PC Mount, PIVOT
