ASUS LCD 24.1" PA248QV 1920x1200 ProArt Professional 16:10 IPS WUXGA 100% sRGB 5ms 300cd repro VGA HDMI DP USB PIVOT
Popis a parametry
ASUS LCD 24.1" PA248QV 1920x1200 ProArt Professional 16:10 IPS WUXGA 100% sRGB 5ms 300cd repro VGA HDMI DP USB PIVOT
https://www.asus.com/Monitors/ProArt-Display-PA248QV/
https://www.asus.com/cz/events/infoM/activity_proart5years/
ASUS ProArt Display PA248QV Professional Monitor – 24.1-inch, 16:10, IPS, WUXGA (1920 x 1200), 100% sRGB, 100% Rec.709, Color Accuracy ?E < 2, Calman Verified, ProArt Preset, ProArt Palette, Ergonomic Stand

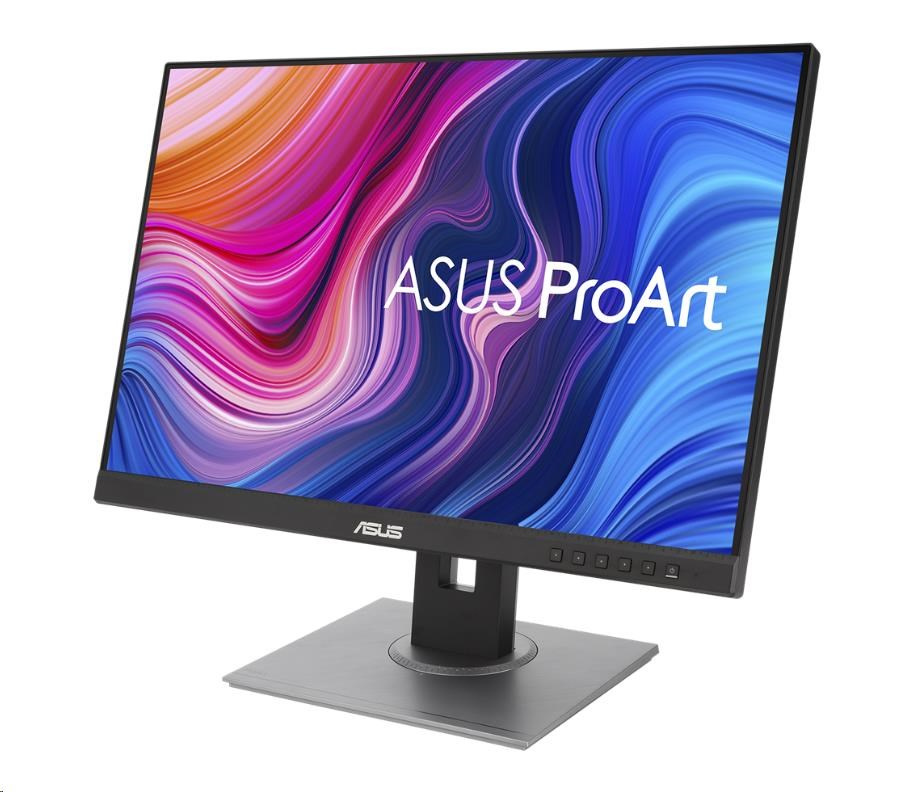

24.1-inch 16:10 WUXGA (1920 x 1200) IPS display with frameless design
International color standard 100% sRGB and 100% Rec. 709 wide color gamut
Calman Verified with factory pre-calibrated for excellent color accuracy (?E < 2)
ASUS exclusive ProArt Preset and ProArt Palette provides several adjustable color parameters and preset modes
75Hz refresh rate and Adaptive-Sync technology (48~75Hz) to animated content with fast action and eliminate screen tearing
Extensive connectivity with DisplayPort, HDMI, D-sub, Audio in, Earphone jack plus four USB 3.0 ports for the most flexibility

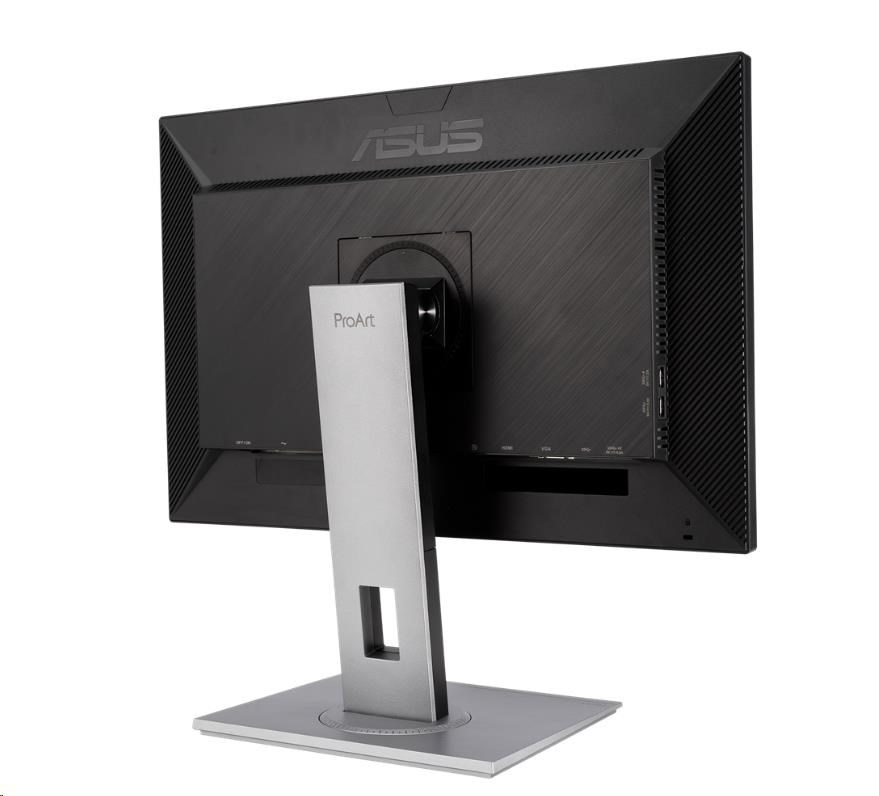

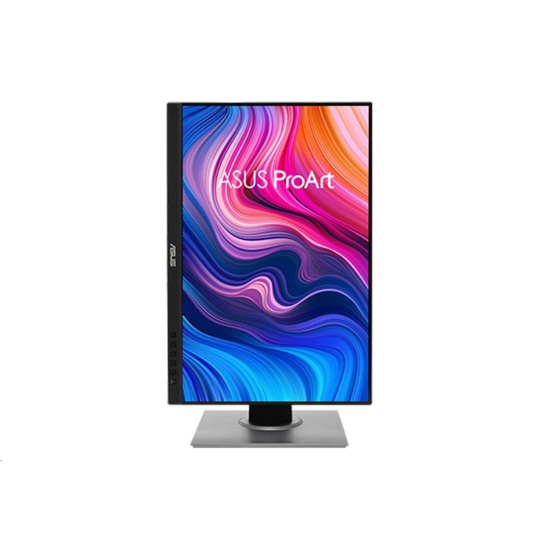

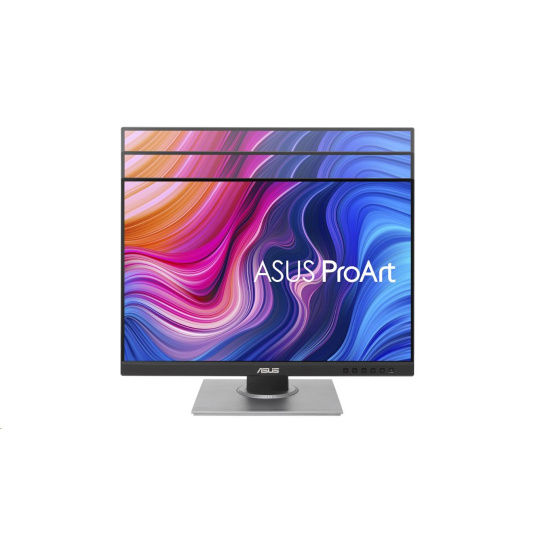

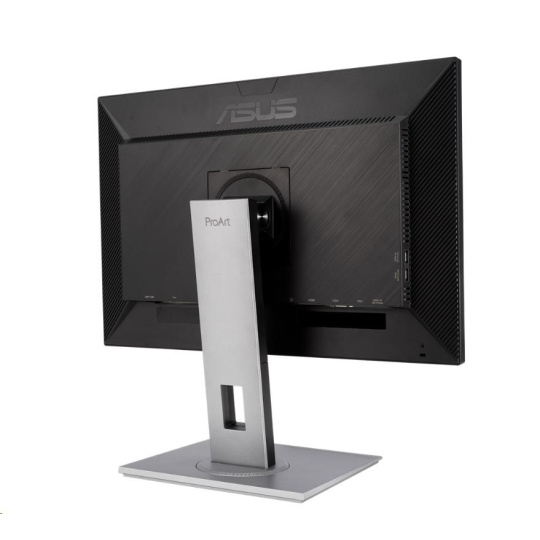

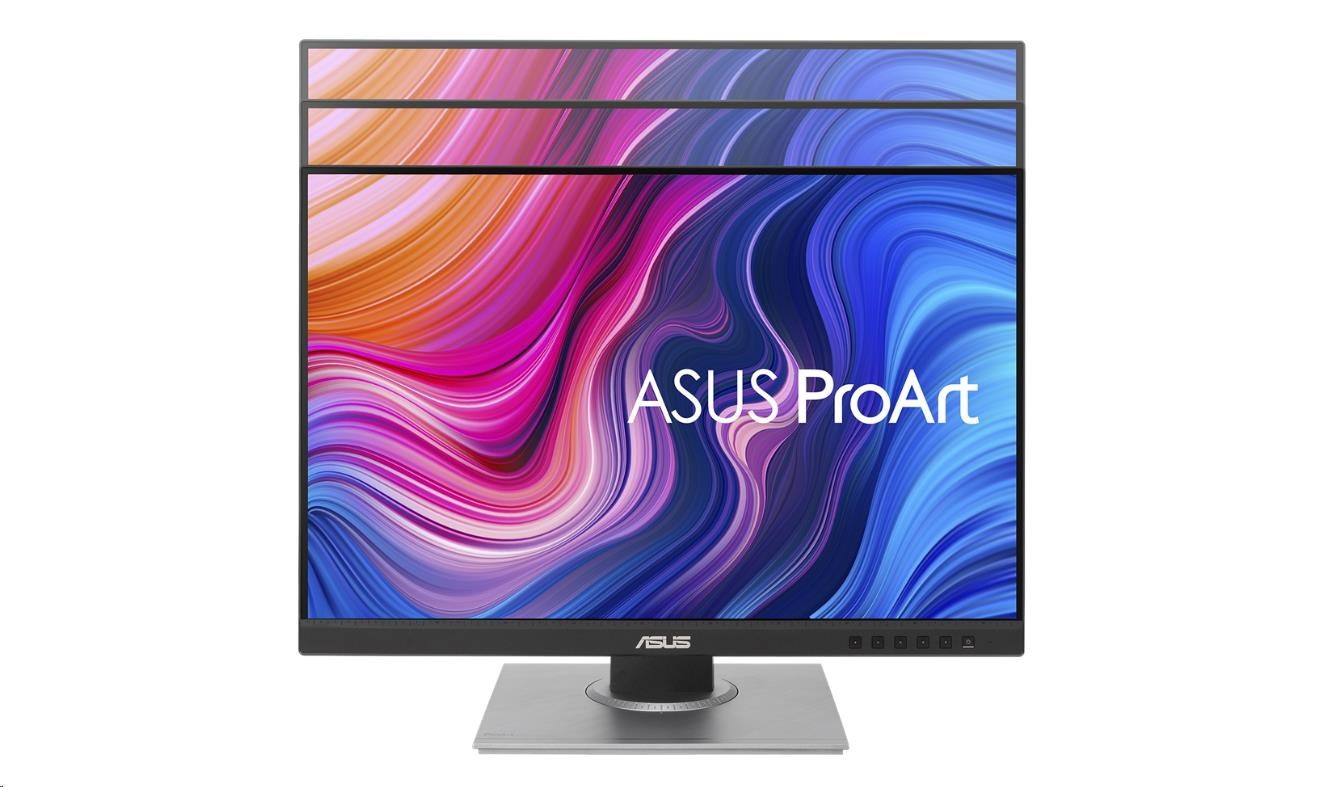

VESA wall-mountable and ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
Display
Panel Size: Wide Screen 24.1"(61.13cm) 16:10
Color Saturation : 100% sRGB / 100% Rec. 709
Panel Type : IPS
True Resolution : 1920x1200
Display Viewing Area(HxV) : 518.4 x 324.0 mm
Display Surface : Non-glare
Pixel Pitch : 0.270mm
Brightness(Max) : 300 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Flicker free : Yes
Video Feature
Trace Free Technology : Yes
ProArt Preset : 9 Modes(sRGB Mode/Rec. 709 Mode/Scenery Mode/Standard Mode/Rapid Rendering/User Mode 1/User Mode 2/Reading Mode/Darkroom Mode)
ProArt Palette : Yes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler Modes)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Adaptive-Sync supported :Yes
Motion Sync: Yes
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Digital Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Power Consumption
Power Consumption:<15W*
Power Saving Mode:<0.5W
Power Off Mode:0W(hard switch)
Voltage: 100–240V, 50 / 60 Hz
Mechanical Design
Chassis Colors : Black

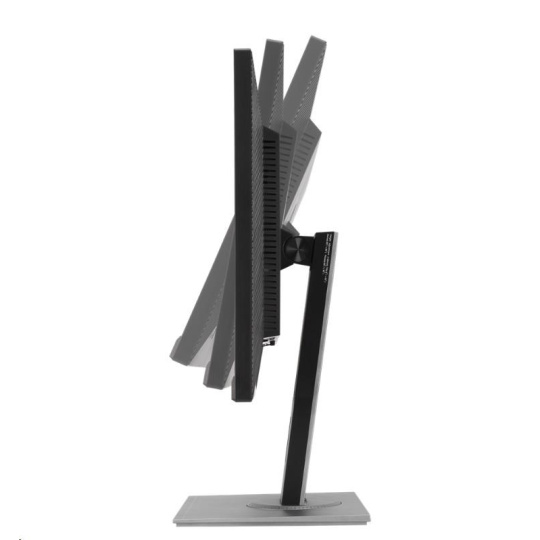

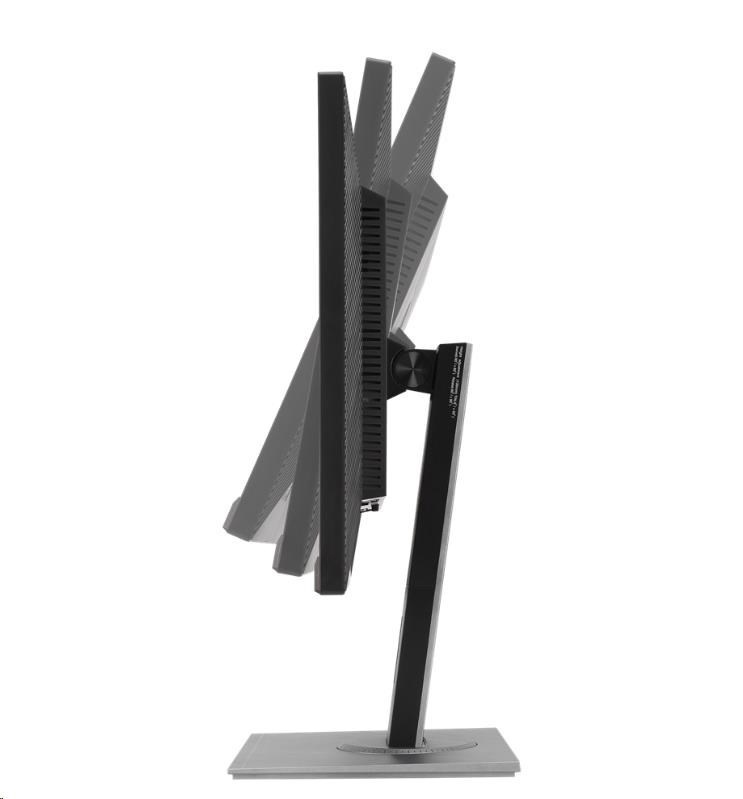

Tilt : -5°~+35°
Swivel : +90°~-90°

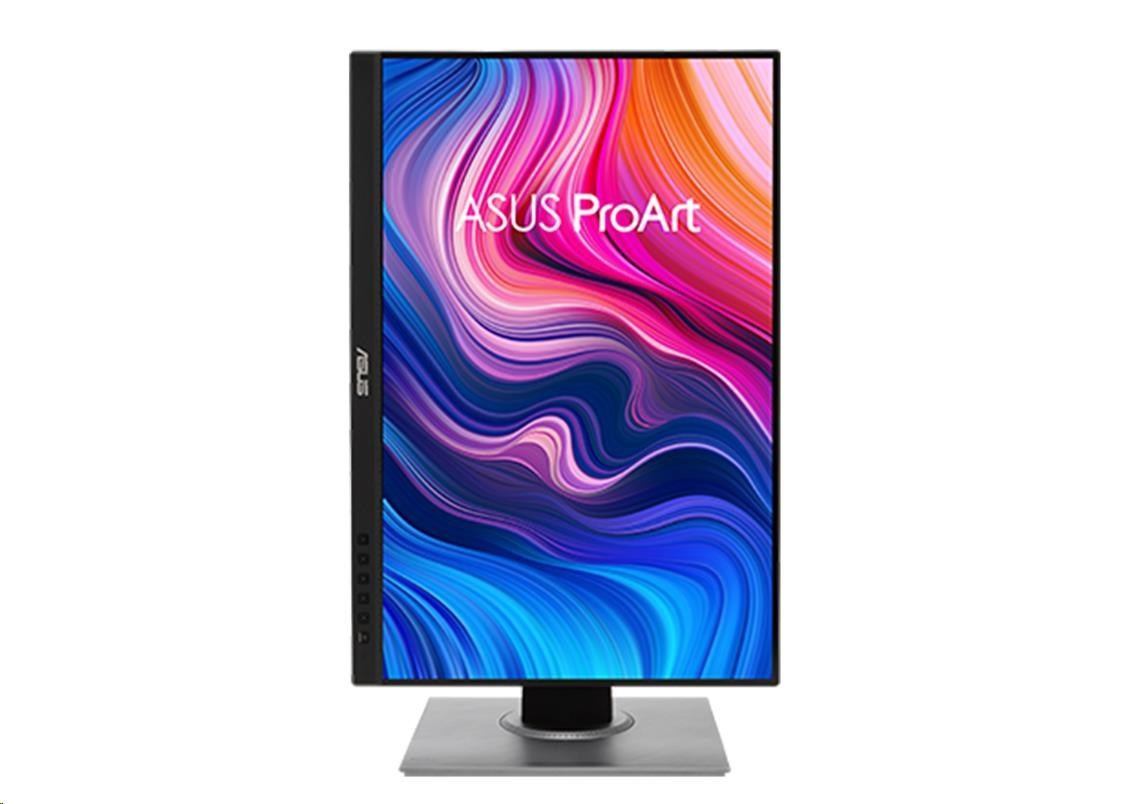

Pivot : +90°~-90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 533 x (375 - 505) x 211 mm
Phys. Dimension without Stand (WxHxD) : 533 x 360 x 47 mm
Box Dimension (WxHxD) : 649 x 474 x 192 mm
Weight
Net Weight (Esti.) : 6.1 kg, Without Stand (Esti.) : 3.9 Kg,
Gross Weight (Esti.) : 8.3 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable(Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Color pre-calibration report
Welcome Card
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSB, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 7), MEPS, RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, ICES-3, PC recycle, CEC
Note
* Adaptive-Sync only can be activated within “48Hz ~ 75Hz” via HDMI and DisplayPort ports
*To activate Rapid Rendering needs turn off Adaptive-Sync and only be activated at 75Hz. Brightness, Blue Light Filter, ASCR, Trace Free cannot be adjusted when using this function.
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
.
https://www.asus.com/cz/events/infoM/activity_proart5years/
ASUS ProArt Display PA248QV Professional Monitor – 24.1-inch, 16:10, IPS, WUXGA (1920 x 1200), 100% sRGB, 100% Rec.709, Color Accuracy ?E < 2, Calman Verified, ProArt Preset, ProArt Palette, Ergonomic Stand
24.1-inch 16:10 WUXGA (1920 x 1200) IPS display with frameless design
International color standard 100% sRGB and 100% Rec. 709 wide color gamut
Calman Verified with factory pre-calibrated for excellent color accuracy (?E < 2)
ASUS exclusive ProArt Preset and ProArt Palette provides several adjustable color parameters and preset modes
75Hz refresh rate and Adaptive-Sync technology (48~75Hz) to animated content with fast action and eliminate screen tearing
Extensive connectivity with DisplayPort, HDMI, D-sub, Audio in, Earphone jack plus four USB 3.0 ports for the most flexibility
VESA wall-mountable and ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
Display
Panel Size: Wide Screen 24.1"(61.13cm) 16:10
Color Saturation : 100% sRGB / 100% Rec. 709
Panel Type : IPS
True Resolution : 1920x1200
Display Viewing Area(HxV) : 518.4 x 324.0 mm
Display Surface : Non-glare
Pixel Pitch : 0.270mm
Brightness(Max) : 300 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Flicker free : Yes
Video Feature
Trace Free Technology : Yes
ProArt Preset : 9 Modes(sRGB Mode/Rec. 709 Mode/Scenery Mode/Standard Mode/Rapid Rendering/User Mode 1/User Mode 2/Reading Mode/Darkroom Mode)
ProArt Palette : Yes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler Modes)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Adaptive-Sync supported :Yes
Motion Sync: Yes
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Digital Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Power Consumption
Power Consumption:<15W*
Power Saving Mode:<0.5W
Power Off Mode:0W(hard switch)
Voltage: 100–240V, 50 / 60 Hz
Mechanical Design
Chassis Colors : Black
Tilt : -5°~+35°
Swivel : +90°~-90°
Pivot : +90°~-90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 533 x (375 - 505) x 211 mm
Phys. Dimension without Stand (WxHxD) : 533 x 360 x 47 mm
Box Dimension (WxHxD) : 649 x 474 x 192 mm
Weight
Net Weight (Esti.) : 6.1 kg, Without Stand (Esti.) : 3.9 Kg,
Gross Weight (Esti.) : 8.3 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable(Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Color pre-calibration report
Welcome Card
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSB, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 7), MEPS, RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, ICES-3, PC recycle, CEC
Note
* Adaptive-Sync only can be activated within “48Hz ~ 75Hz” via HDMI and DisplayPort ports
*To activate Rapid Rendering needs turn off Adaptive-Sync and only be activated at 75Hz. Brightness, Blue Light Filter, ASCR, Trace Free cannot be adjusted when using this function.
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
.
ParametryPorovnání
Formát obrazovky
16:10
Rozlišení displeje
1920x1200
Povrchová úprava displeje
Matný
Rozhraní
DisplayPort
Rozhraní
HDMI
Rozhraní
3.5mm Jack
Rozhraní
VGA
Výbava
Reproduktory
Výbava
Pivot
Výbava
VESA montáž
Výbava
Redukce modrého světla
Výbava
Redukce blikání (flicker-free)
Typ panelu
IPS
Úhlopříčka displeje (")
24,1
Obnovovací frekvence displeje (Hz)
75
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
8,3
Jas (cd/m2)
300
