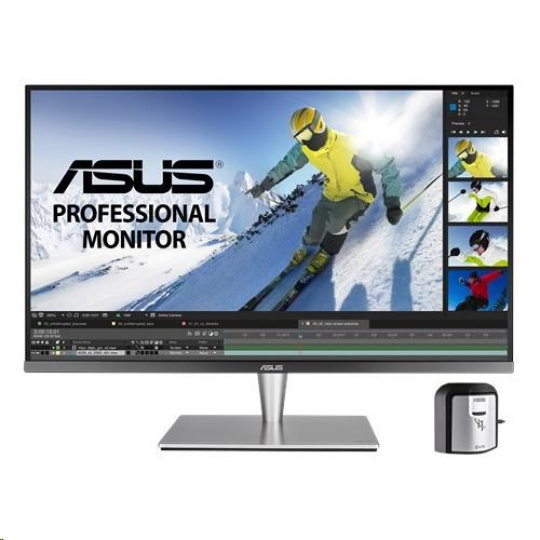

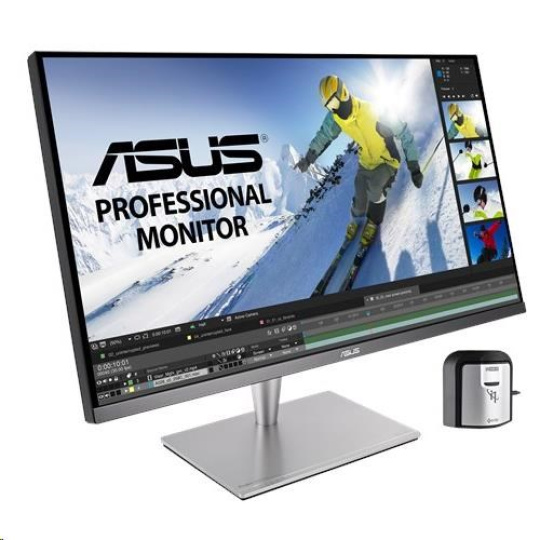

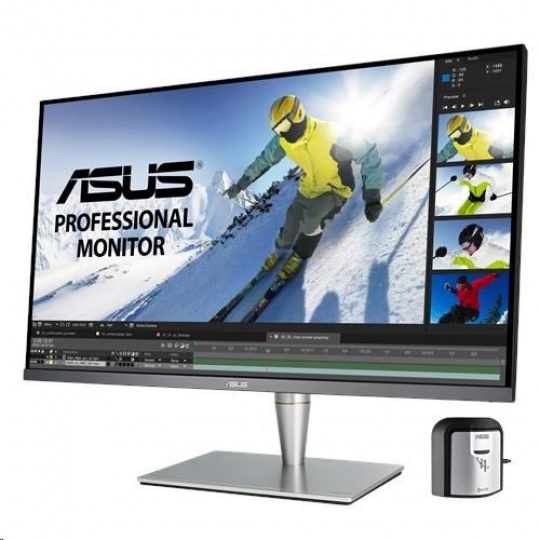

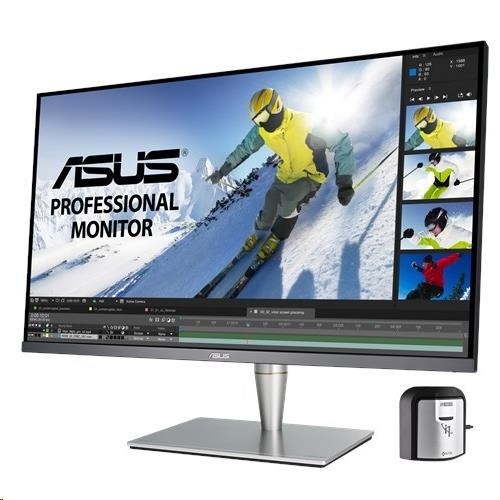

ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
Popis a parametry
ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
https://www.asus.com/Monitors/PA32UC-K/specifications/
Display
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 85% Rec.2020, 99.5% Adobe RGB, over 95% DCI-P3 and 100% sRGB
Panel Type : IPS
True Resolution : 3840x2160
Display Surface Non-glare
Pixel Pitch : 0.1845 mm
Brightness(Max) : 1000 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1.07 Billion
Flicker free
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes
Dynamically Local Dimming : Yes, 384 Zones
Video Feature
SPLENDID Video Preset Modes : 8 Modes (Adobe RGB Mode/Rec. 2020/DCI-P3/HDR/sRGB Mode/Standard Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (A4/B5/Alignment Grid/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes, DisplayPort / Thunderbolt™ 3 ports
HDR (High Dynamic Range) Support :Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x4, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB upstream : USB3.0 Type-B x1
USB downstream : USB3.0 Type-A x2, USB3.0 Type-C x1
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 56.84W
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz
Mechanical Design
Chassis Colors : Gray
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 229 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 69 mm
Box Dimension (WxHxD) : 913 x 365 x 521 mm
Weight
Net Weight (Esti.) : 11.4 kg
Net Weight Without Stand (Esti.) : 7.8 kg
Gross Weight (Esti.) : 16.7 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB 3.0 cable
Quick start guide
HDMI cable
Support CD
Warranty Card
Cable Clip
X-rite i1 Display Pro Calibrator
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ICES, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, UHDA
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
*HDR performance requires compatible with monitors, streaming, video graphic cards, OS and software for PC devices or media players which all support HDR function.
.
Display
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 85% Rec.2020, 99.5% Adobe RGB, over 95% DCI-P3 and 100% sRGB
Panel Type : IPS
True Resolution : 3840x2160
Display Surface Non-glare
Pixel Pitch : 0.1845 mm
Brightness(Max) : 1000 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1.07 Billion
Flicker free
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes
Dynamically Local Dimming : Yes, 384 Zones
Video Feature
SPLENDID Video Preset Modes : 8 Modes (Adobe RGB Mode/Rec. 2020/DCI-P3/HDR/sRGB Mode/Standard Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (A4/B5/Alignment Grid/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes, DisplayPort / Thunderbolt™ 3 ports
HDR (High Dynamic Range) Support :Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x4, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB upstream : USB3.0 Type-B x1
USB downstream : USB3.0 Type-A x2, USB3.0 Type-C x1
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 56.84W
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz
Mechanical Design
Chassis Colors : Gray
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 229 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 69 mm
Box Dimension (WxHxD) : 913 x 365 x 521 mm
Weight
Net Weight (Esti.) : 11.4 kg
Net Weight Without Stand (Esti.) : 7.8 kg
Gross Weight (Esti.) : 16.7 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB 3.0 cable
Quick start guide
HDMI cable
Support CD
Warranty Card
Cable Clip
X-rite i1 Display Pro Calibrator
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ICES, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, UHDA
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
*HDR performance requires compatible with monitors, streaming, video graphic cards, OS and software for PC devices or media players which all support HDR function.
.
ParametryPorovnání
Formát obrazovky
16:9
Rozlišení displeje
3840x2160 (4K UHD)
Povrchová úprava displeje
Matný
Rozhraní
Thunderbolt
Výbava
Redukce modrého světla
VESA rozměry
100x100
Typ panelu
IPS
Úhlopříčka displeje (")
32
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
11,4
Jas (cd/m2)
1000
ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
