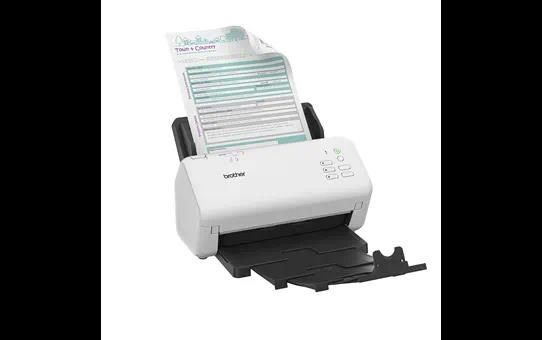

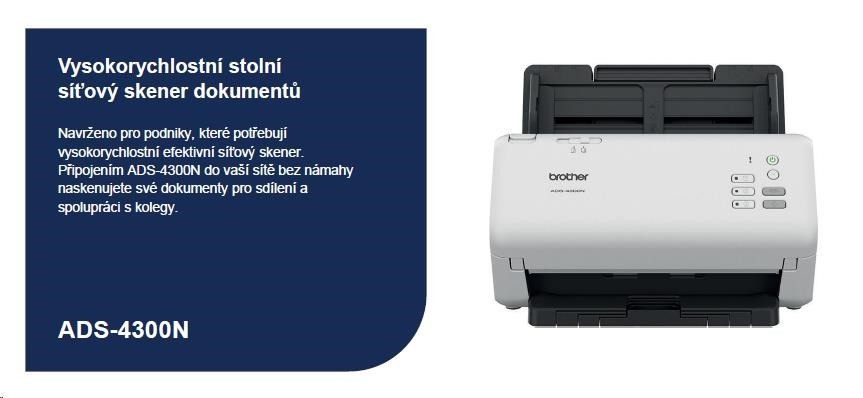

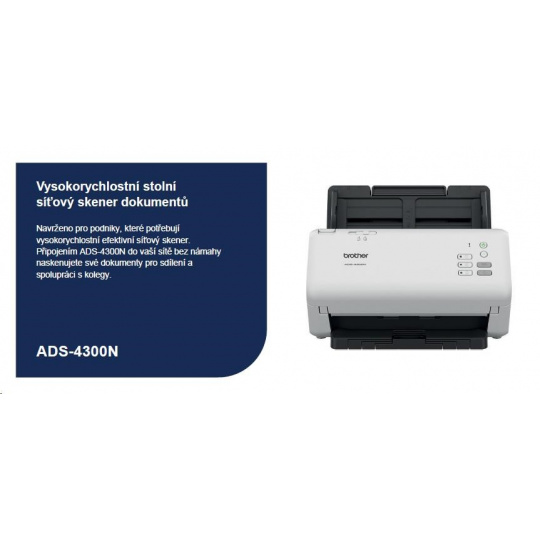

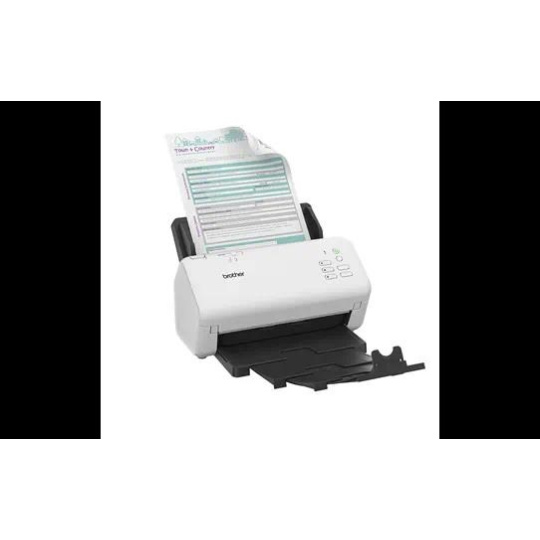

BROTHER skener ADS-4300N DUALSKEN A4 40ppm/80dual 600x600 60ADF USB LAN
Popis a parametry
BROTHER skener ADS-4300N DUALSKEN A4 40ppm/80dual 600x600 60ADF USB LAN
SPECIFICATIONS
| Industry-Specific Certifications | Cerner Certified |
|---|---|
| Kofax VAR Elite™ / Kofax Express™ Compatibility‡ | Yes |
| Mobile Device Compatibility‡ | AirPrint®, Brother Mobile Connect |
| Operating Systems Compatibility | Windows 7 SP1, 8.1, 10 Home, 10 Pro, 10 Education, 10 Enterprise; Windows Server 2012, 2012 R2, 2016, 2019; macOS v10.14.x, v10.15.x, v11.x, v12.x. |
| Standard Interface(s) | Ethernet, SuperSpeed USB 3.0 (USB 2.0 compatible) |
| Supported Network Protocols (IPv4) | APIPA (Auto IP), DHCP, DNS Resolver, HTTP/HTTPS Server, ICMP, LLMNR Responder, mDNS, SNMPv1/v2c/v3, SNTP Client, WINS/NetBIOS Name Resolution, Web Services (Scan) |
| Supported Network Protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR Responder, HTTP/HTTPS Server, ICMPv6, SNTP Client, Web Services (Scan) |
| USB Host Location(s) | Back: Scan to USB Memory Stick |
| Carton Dimensions (W" x D" x H") | 15.5" x 9.5" x 12.25" |
|---|---|
| Carton Weight (lbs) | 7.37 |
| Unit Dimensions (W" x D" x H") | 11.7" x 8.5" x 7.5" |
| Unit Weight (lbs) | 6.1 |
| Automatic Document Feeder Capacity (max. pages) | 80 |
|---|---|
| Daily Duty Cycle‡ (max. pages) | 6,000 |
| Media Types | Plain, Receipts, Photos (carrier sheet required), Business Cards, Plastic/Laminated Cards (including embossed), Index Card |
| Media Weights: (min/max) | 11 - 53 lbs. |
| Paper Size (min) | 2.0"(W) - 2.0" (L) |
| Paper Size: Single Sheet‡ (max.) | 8.5" (W) - 197" (L) |
| Plastic Card Sizes (Min/Max) | 2.13" (W) x 3.37" (L) |
| Plastic Card Thickness | Embossed: Up to 1.32mm (0.05") Without Embossing: Up to 1.10mm (0.04") |
| ENERGY STAR® Certified | Yes |
|---|---|
| EPEAT® Registered | Silver |
| Operating Environment: Humidity | 20% / 80% |
| Operating Environment: Temperature | 41°F - 95°F (5°C - 35°C) |
| Power Consumption - Power Off/Ready/Scanning/Sleep | 0.1W / 6.8W / 24W / 1.7W |
| Power Source | AC Adapter |
| Advanced Scanning Features | Continuous Scan‡, Barcode Metadata, Index, Multi-page Feed Sensor, 1 to 2 Scan, 2 to 1 Scan, Color Drop Out, Hole Punch Removal, Background Color Removal, Auto Image Rotation, Auto Scan Size, Bleed-through Removal, Scan Preview, Document Separation, ADF Auto Deskew, Blank Page Skip |
|---|---|
| Automatic Document Feeder Capacity (max. pages) | 80 |
| Barcode Types Supported | UPC-A, UPC-E, JAN8, JAN13, Code39, Code93, ITF, Code128, Codabar, GS1_128, PDF417, QR Code, Data Matrix |
| Cloud Services‡ | GOOGLE DRIVE™/GOOGLE DRIVE for Business, ONEDRIVE/ONEDRIVE for Business, DROPBOX/DROPBOX for Business |
| Duplex Scan Speeds (black & color) (max ipm)‡ | 80 |
| Duplex Scanning | Yes |
| Image Sensor | Dual CIS |
| Included Software‡ | Kofax PaperPort™ SE with OCR for Windows, Brother ScanEssentials for Windows, Brother Mobile Connect for iOS and Android™, Brother iPrint&Scan (desktop) for Windows and Mac® |
| Interpolated Scan Resolution (max. dpi) | Up to 1200 x 1200 dpi |
| Optical Scan Resolution (max. dpi) | 600 x 600 dpi |
| Paper Jam Sensor | Yes |
| Scan Driver OS Compatibility‡ | Windows, Mac OS®, Linux |
| Scan Drivers Included‡ | TWAIN, WIA, ISIS, SANE |
| Scan File Formats | PDF Single page/Multi-page (Secure PDF, Searchable PDF, Signed PDF, PDF/A, High Compression PDF), Microsoft Office Excel (XLSX), Windows Bitmap (BMP), Microsoft Office Word (DOCX), JPEG (JPG), PDF Single-page/Multi-page (PDF/A, High Compression PDF, Microsoft Office PowerPoint (PPTX), TIFF Single-page/Multi-page (TIF), Text (TXT) |
| Scan To Feature | Mobile Devices‡, Cloud Services (Brother iPrint&Scan)‡, SharePoint, PC (File, Email, Image, OCR), FTP, USB Memory Stick, Network Folder (CIFS - Windows only), SSH Server (SFTP) |
| Scanner Type | Sheetfed |
| Scanning Capability | Black and White, Color |
| Scanning Modes | 24-Bit Color, 8-Bit Gray Scale, 1-Bit Monochrome |
| Simplex Scan Speeds (black & color) (max ppm)‡ | 40 |
| Security Functions | IP Filter, TLS/SSL, Enterprise Security (802.1x) |
|---|---|
| Security Protocols (Wired) | SMTP-AUTH, SNMP v3, SSL/TLS (IPPS, HTTPS, SMTP), 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) |
| Carton Contents | Brother ADS-4300N, AC Adapter, USB 3.0 Interface Cable, Quick Setup Guide |
|---|
ParametryPorovnání
Funkce
Automatické oboustranné skenování
Typ skeneru
Plochý
Skutečné rozlišení skeneru (v DPI)
600
Automatický podavač dokumentů
Ano
Rozhraní
RJ-45 (Ethernet)
Formát
A4
