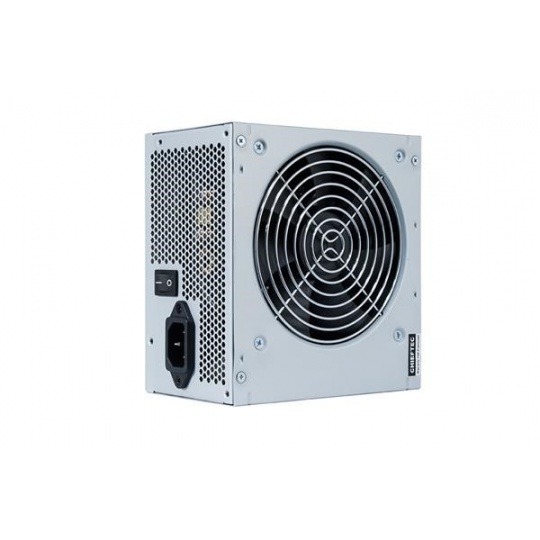

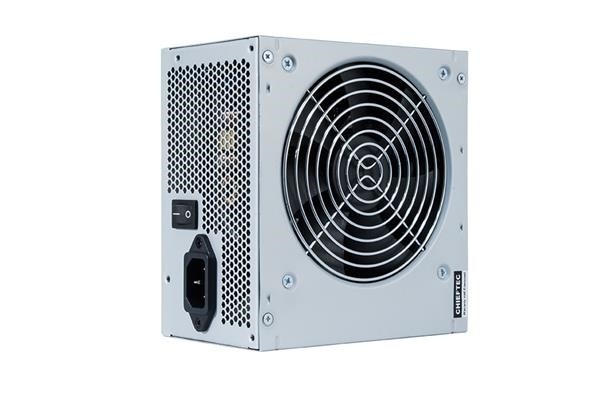

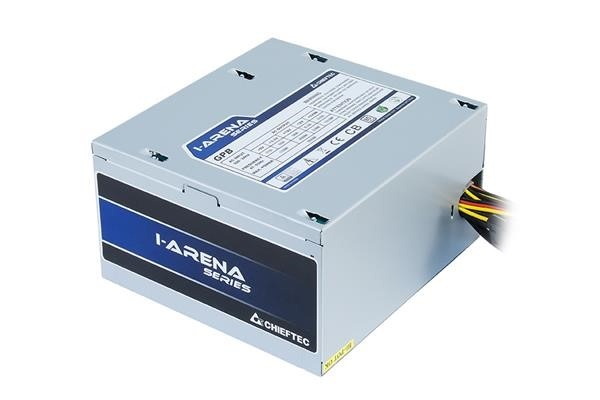

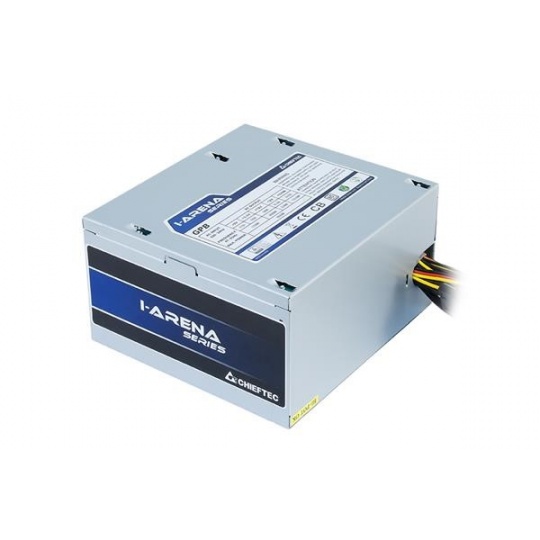

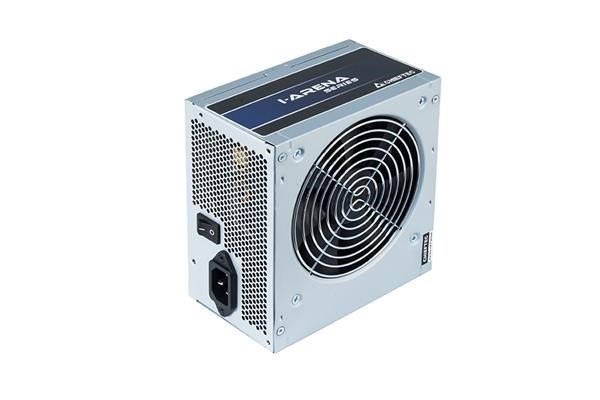

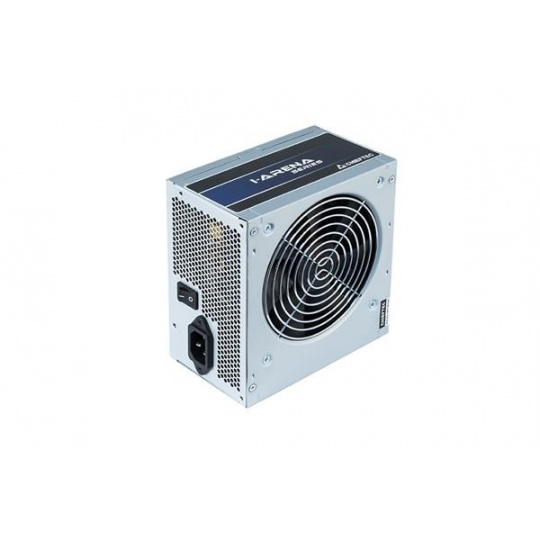

CHIEFTEC zdroj iARENA, GPB-450S, 450W, 120mm fan, PFC, bulk, účinnost 85%
Popis a parametry
CHIEFTEC zdroj iARENA, GPB-450S, 450W, 120mm fan, PFC, bulk, účinnost 85%
Performance
AC Input: | 200-240V / 3.5A |
Frequency: | 47-63 Hz |
+5V: | 16A |
+3,3V: | 17A |
+5V & +3,3V combined: | 100W |
+12V 1: | 34A/408W |
+12V 2: | N/A |
+12V 1 & +12V 2 combined: | N/A |
+12V 3: | N/A |
+12V 4: | N/A |
+12V 3 & +12V 4 combined: | N/A |
P.F.: | >0,9 |
-12V: | 0,3A / 3,6W |
+5VSB: | 2,5A / 12,5W |
Maximum Load: | 450W |
Connectors
Native cable:
20+4PIN: | |
===400mm===[20+4PIN] | |
SATA: | |
===400mm===[Molex]===150mm===[SATA]===150mm===[SATA] | |
Molex/Sata: | |
===400mm===[SATA]===150mm===[Molex]===150mm===[Molex] | |
Molex/Sata: | |
===400mm===[SATA]===150mm===[SATA] | |
6+2PIN PCIe: | |
===400mm===[6+2PIN PCIe] | |
4PIN 12V : | |
===400mm===[4PIN 12V] |
Specification: | ATX 12V 2.3 |
Form factor: | PS II |
Wirkungsgrad: | >85% |
Dimension (DxWxH): | 140 mm x 150 mm x 87 mm |
PFC: | Active PFC (0,9) (only 230V) |
Fan dimension: | 120mm silent fan |
Security: |
|
Certificates: |
|
Warranty: |
|
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
Molex
Konektory
SATA 15-pin
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Výkon zdroje (W)
450
