Club3D adaptér USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
Popis a parametry
Club3D adaptér USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)

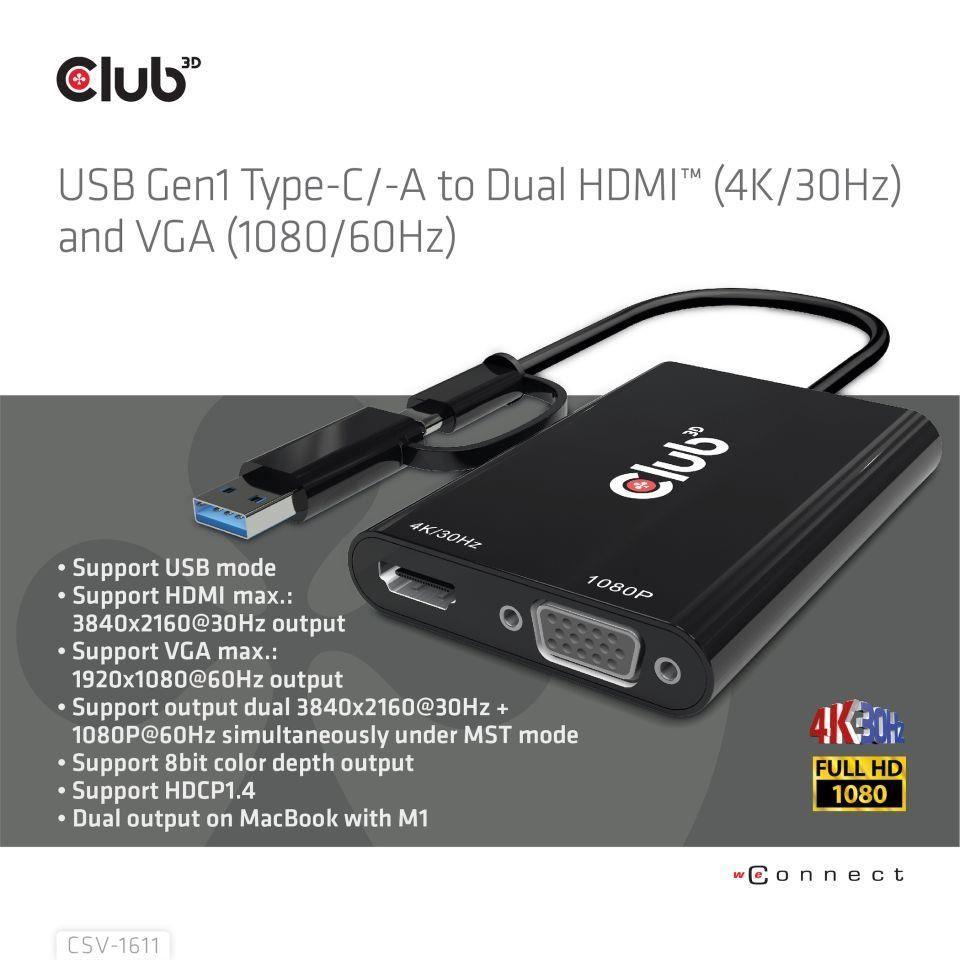

The Club 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual Display adapter which provides most advanced, efficient solution to extend a single USB Type-C or Type-A port to HDMI™ and VGA displays. It supports single HDMI™ 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of different videos. It can work on USB Mode and DP Alt mode supported Type-C and USB-A host. Dual Video output on MacBook with M1. Support USB Gen1 with max 5Gbps data transmission. The unit is powered thru the USB Type-A or Type-C host connection. No external power needed.

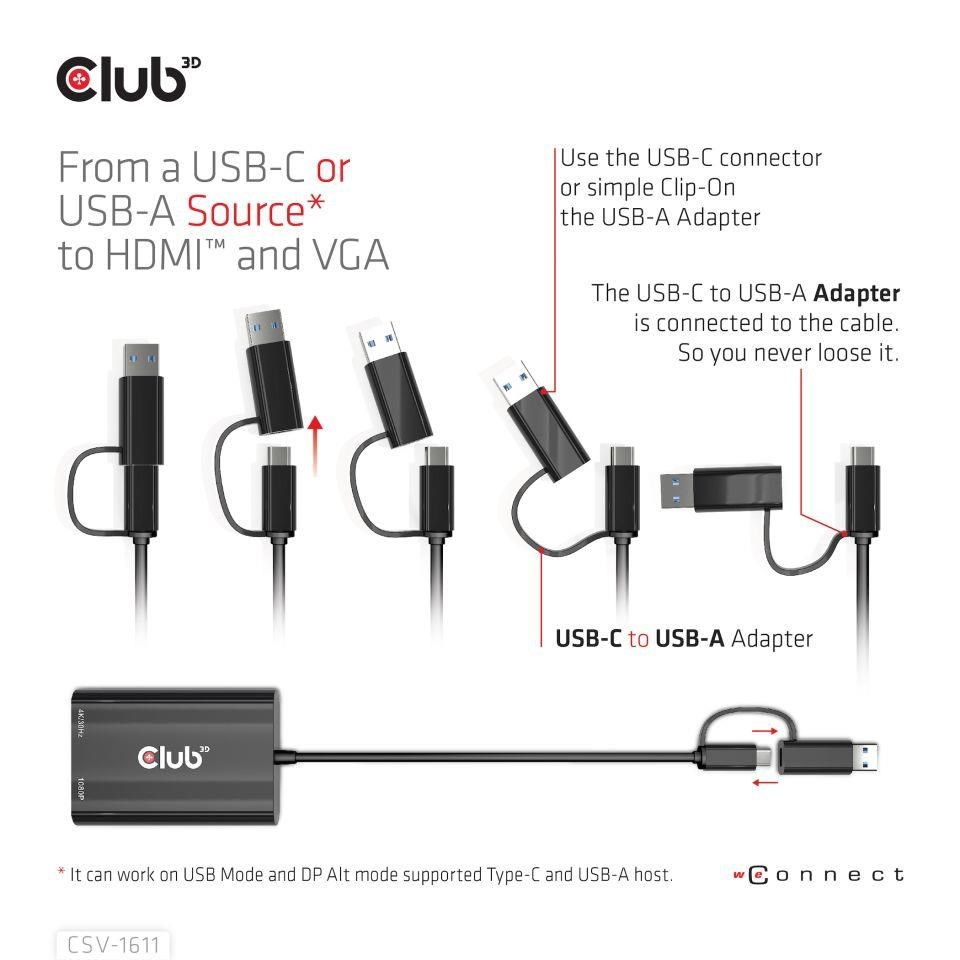

- Works with both USB Gen1 Type-A or Type-C input
- No external power needed
- Support USB mode

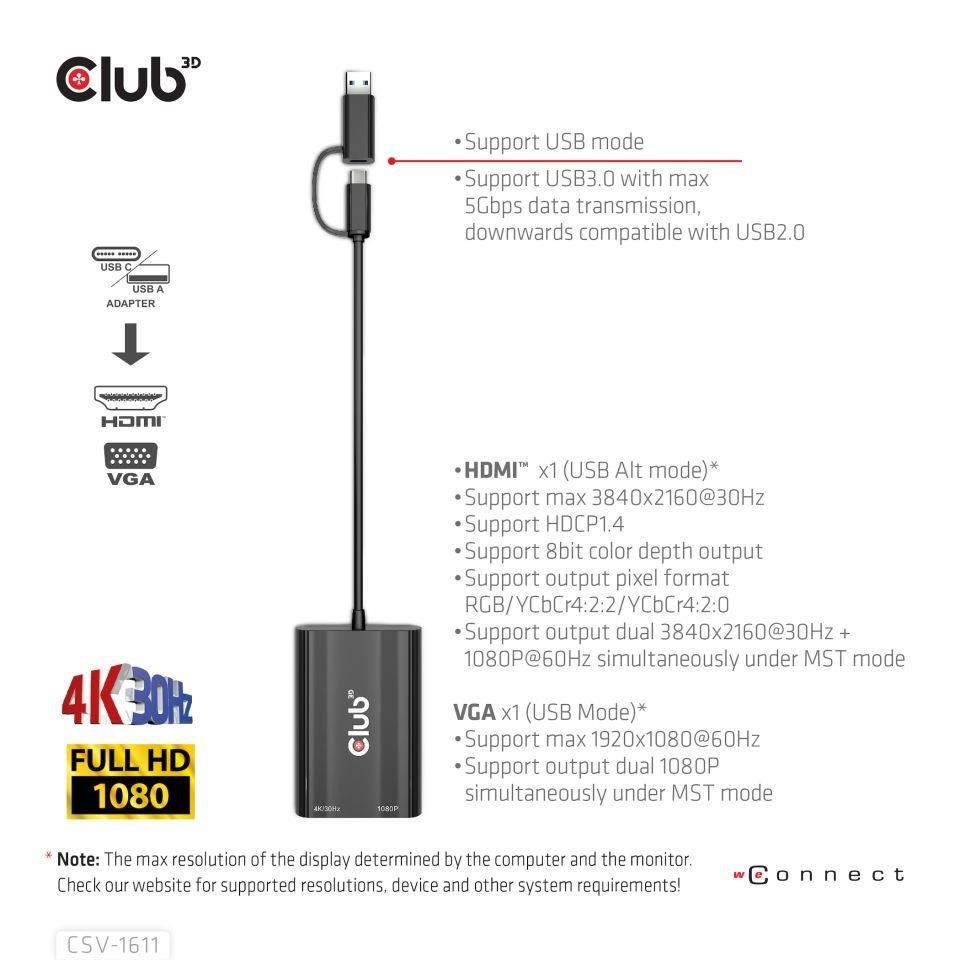

- Support USB Gen1 with max 5Gbps data transmission
- Dual output on MacBook with M1
- Support HDMI™ max 3840x2160@30Hz output
- Support output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
- Support VGA max 1920x1080@60Hz output

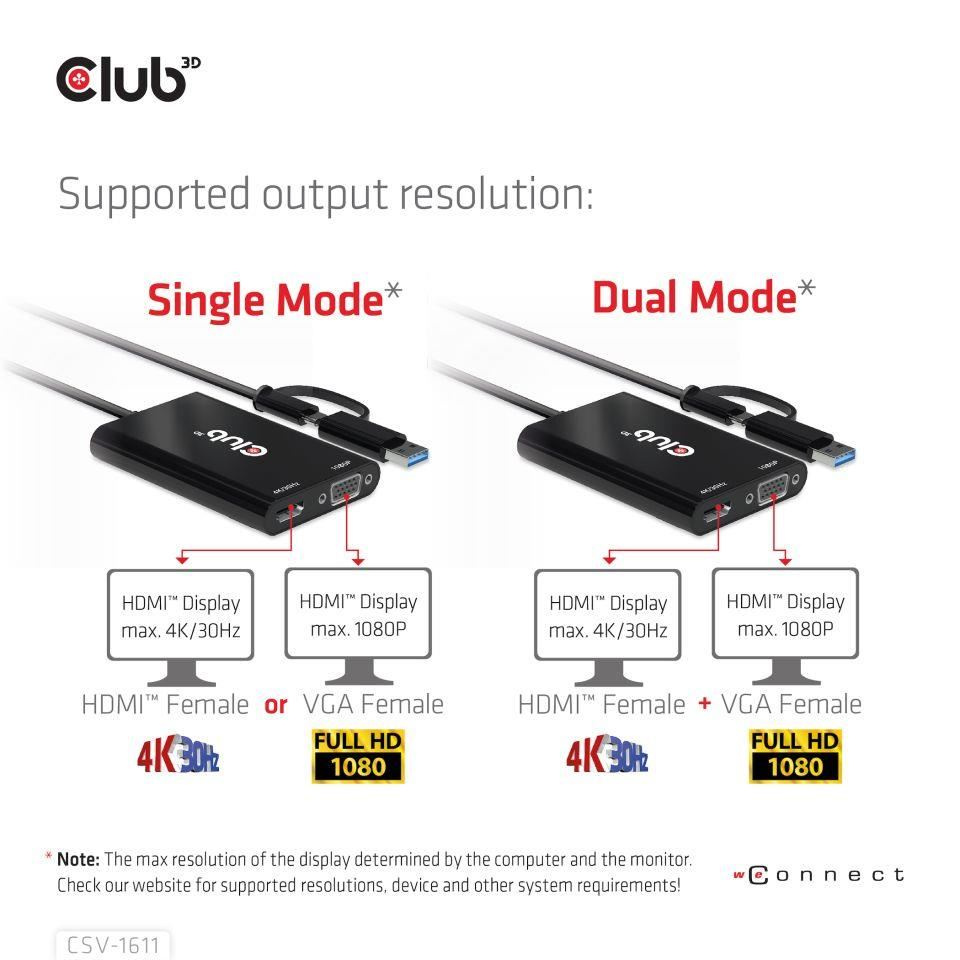

- Support output dual 3840x2160@30Hz + 1080P@60Hz simultaneously under MST mode
- Support 8bit color depth output
- Support HDCP1.4
TECHNICAL SPECIFICATIONS
| OS Support | All |
| In the box | CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz) |

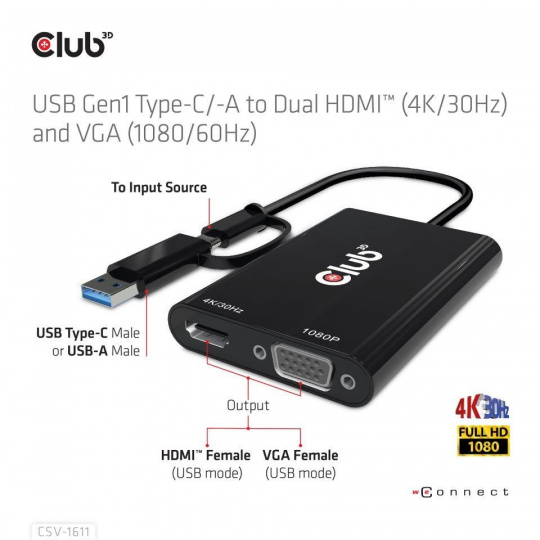

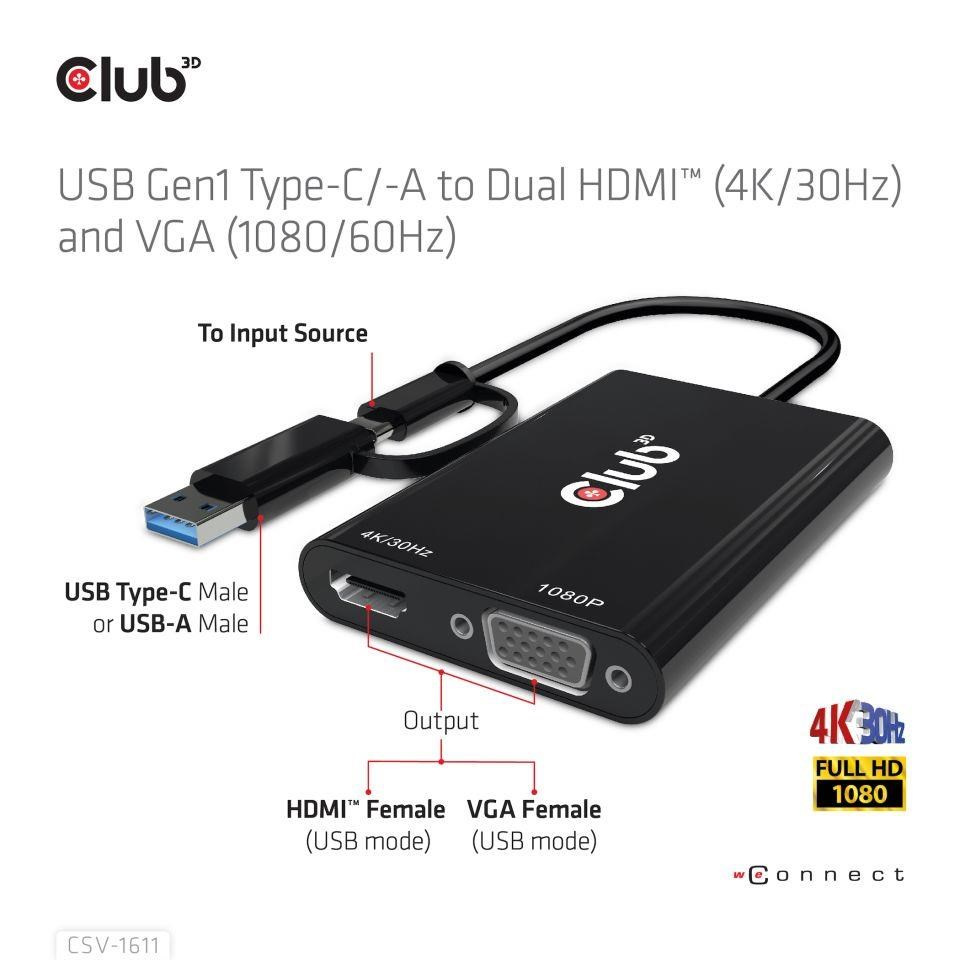

| Available Interfaces | Input: • USB Type-C Male • USB Type-A Male Output: • 1x HDMI™ Female • 1x VGA Female |

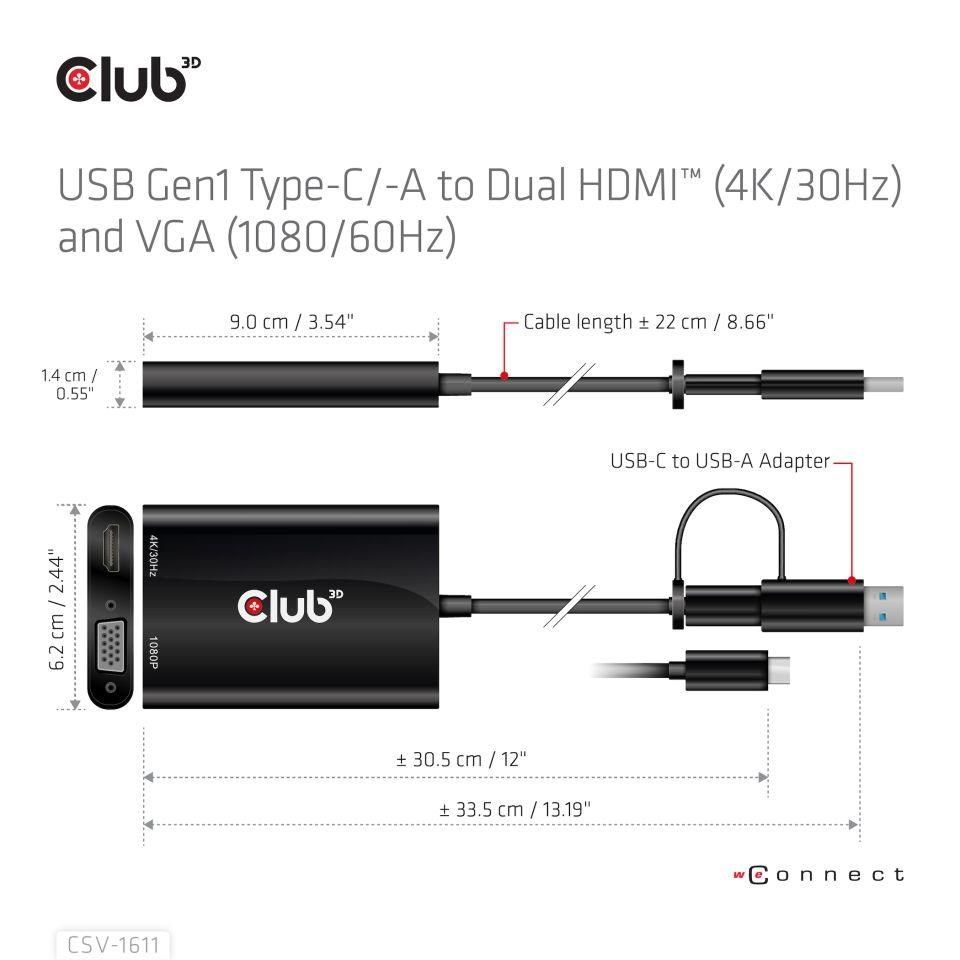

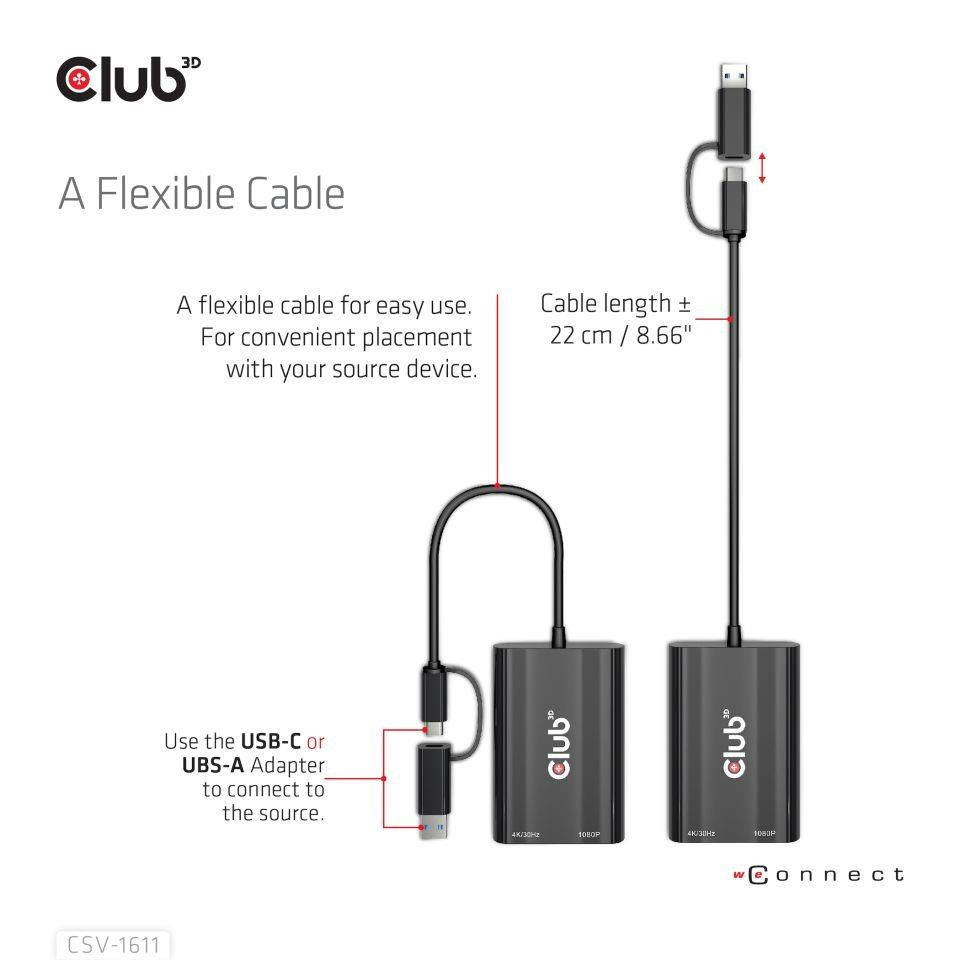

| Other info | • Box size: 25 x 8 x 3.5 cm / 9.84 x 3.15 x 1.38" • Device size: 9.1 x 6.22 x 1.41cm / 3.58 x 2.45 x 0.55" • USB Host Cable length approx.: 22 cm / 8.66" • Total length approx.: 33 cm / 13" • USB Type-C Male Connector dimensions: - 3.4 x 1.2 x 0.7cm / 1.34 x 0.47 x 0.28" • USB Type-A Male Connector dimensions: - 4.3 x 1.6 x 0.9 cm / 1.69 x 0.63 x 0.35" • Device Weight: 130 gr / 4.59 oz • Box Weight: 58 gr / 2.05 oz • Total Weight: 188 gr / 6.64 oz • Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.ParametryPorovnání
Specifikace kabelu / redukce
Adaptér, Redukce
Input
USB-C
Input
USB
Output
HDMI
Output
VGA kabel (D-SUB)
Club3D adaptér USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
