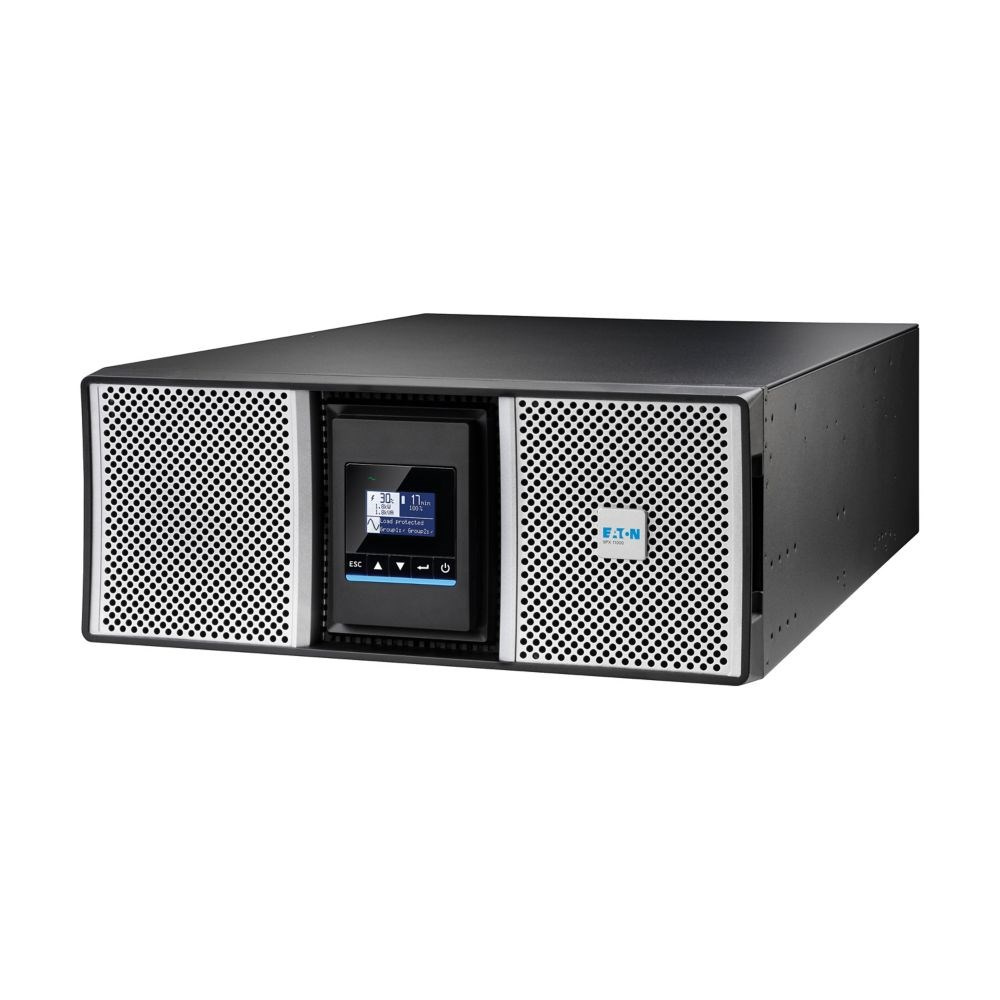

Eaton 9PX 11000i RT4U HotSwap Netpack, UPS 11000VA, LCD rack/tower G2

Name: Eaton 9PX 11000i RT4U HotSwap Netpack, UPS 11000VA, LCD rack/tower G2
Brand: Eaton
SKU: 149606
Price: 212927 CZK
Availability: OutOfStock

-6%

Kód: 149606

EAN: 3553340710629

Záruka: 24 Měsíc(ů)

Výrobce: Eaton

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Eaton 9PX 11000i RT4U HotSwap Netpack, UPS 11000VA, LCD rack/tower G2

General specifications

Product Name	Eaton 9PX Gen2 UPS
Catalog Number	9PX11KIRTNBPG2
EAN	3553340710629
Product Length/Depth	725 mm
Product Height	174 mm
Product Width	440 mm
Product Weight	83.4 kg
Warranty	3 year on electronics, 2 year on battery
Compliances	LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM
Model Code	Eaton 9PX 11000i RT4U HotSwap Netpack G2

Baterie

Battery type	Sealed, lead-acid

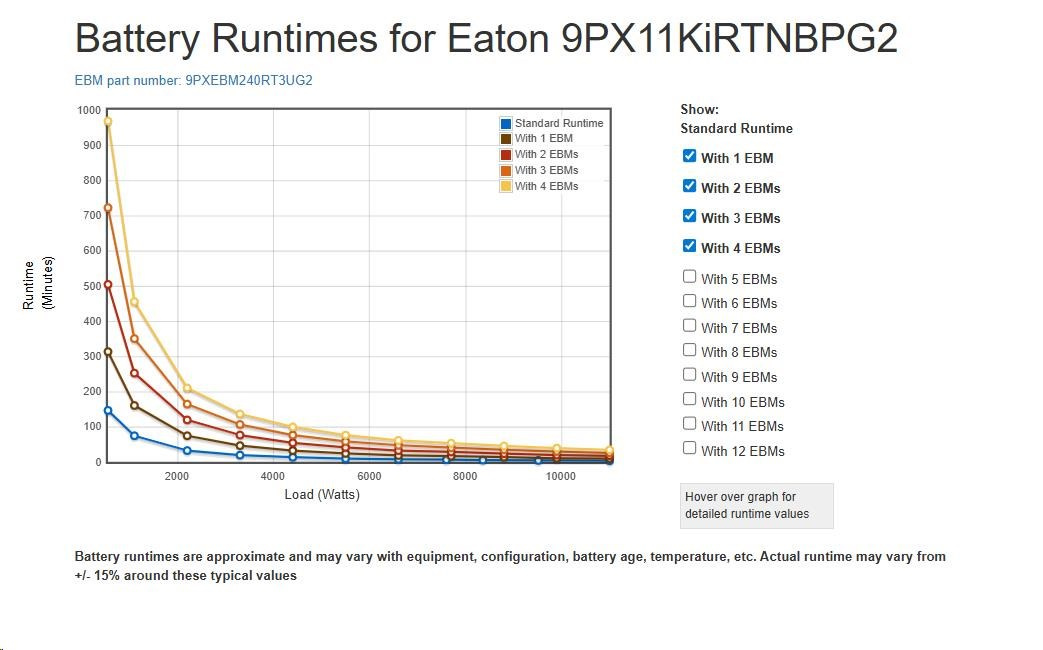

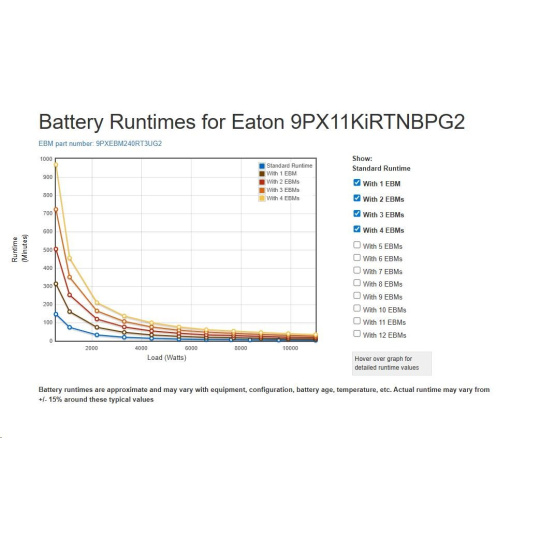

Runtime graph
Battery quantity	20
Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
Battery rating	12 V / 9 Ah
Extended battery capability	Yes

Výstup

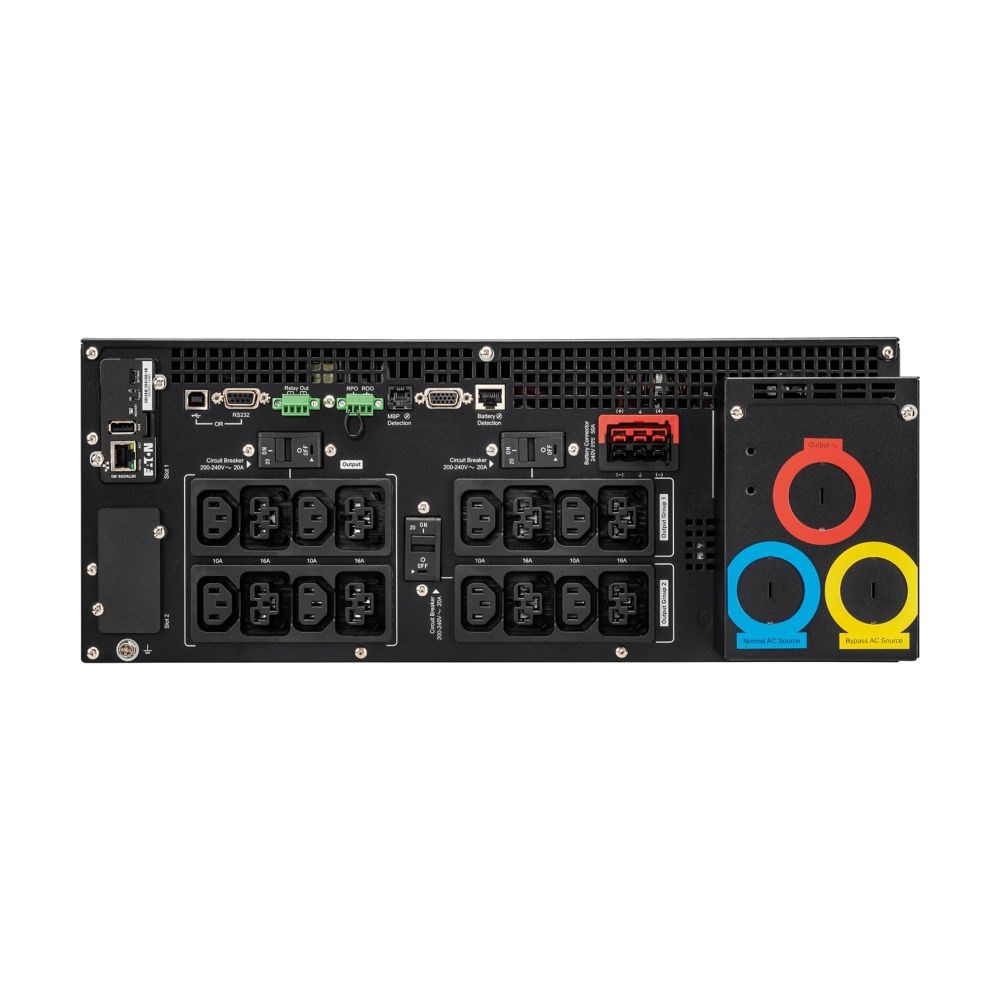

Receptacle	(8) C13, (8) C39, Hardwired
Voltage	230V
VA rating	11 kVA
Wattage	11 kW
Output power factor	1
Output voltage range	200/208/220/230/240 V +/- 1%
Output waveform	Sine wave
Output nominal voltage	230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max	1
Feed type	1
Topology	Online/Double-conversion

Vstup

Nominal frequency	50/60 Hz
Input power factor	>.99
Input voltage range	176-276 V (100-276 V with derating)
Input frequency range	40-70 Hz

Novinky a informační sdělení

Includes network card	Yes
Communication	USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for dry contacts outputs (2 contacts) Network card
Ethernet interface	Yes
User interface	Multilingual graphical LCD display
Potential free switch contact	Yes
Expansion slots	2 slots, network card included
Software compatibility	Eaton Brlightlayer Software suite
Type of interface	Other

Prostředí

Altitude	3000 m
Noise level	<37 dB at 1 meter
Temperature range	0° to 40°C (32° to 104°F)
Relative humidity	0-95% non-condensing

Další specifikace

Construction type	482.6 mm (19 inch) device
Package contents	UPS (3) cable glands (2) IEC-IEC output cables (1,2m) USB cable (1,8m) Network Management Card Maintenance Bypass Supports for tower mounting Rack-mounting kit with brackets and slides for UPS Mounting kit for Maintenance Bypass Safety instructions Quickstart guide
Internal bypass	Yes
Auto shutdown function	Yes
Color	Black/silver
Efficiency at max. load	97
Rack mounting kit	Yes
Hot swap power	Yes
