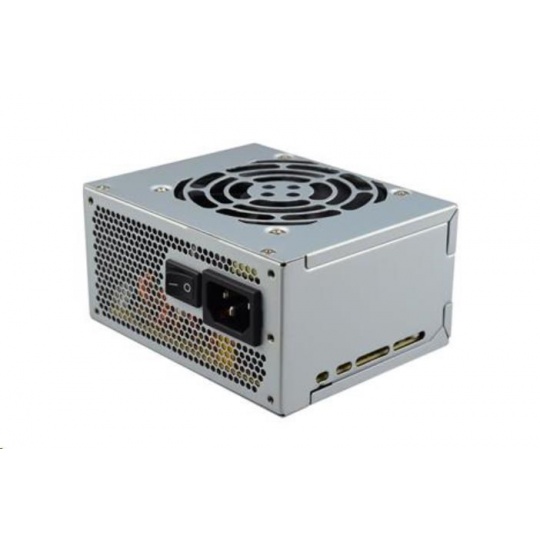

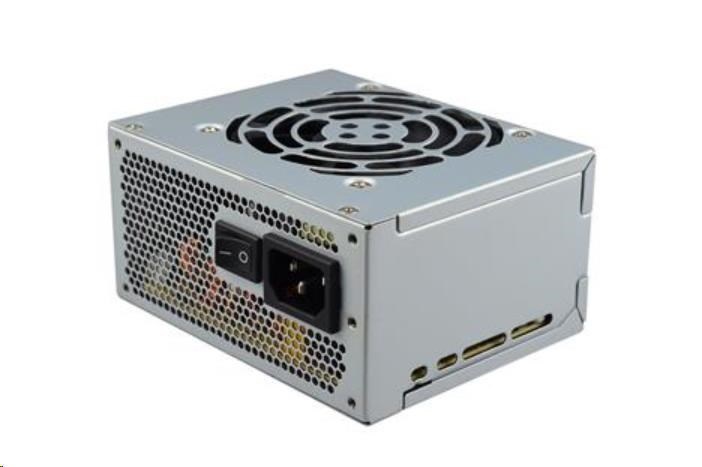

Fortron zdroj FSP350-50SAC 80PLUS BRONZE, SFX, 350W
Popis a parametry
Fortron zdroj FSP350-50SAC 80PLUS BRONZE, SFX, 350W
FSP/Fortron SFX FSP350-50SAC 80PLUS BRONZE, bulk, 350W
FSP SAC Series features with eco-friendly design, which allows SAC series to reach up to 85% efficiency. SAC series also equipped with complete protection to prevent your system from damage. SAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
- Certified CB 62368-1
- Meet 80 Plus Bronze
- Intel Design ATX 12V V1.4
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
TECHNICAL SPECIFICATIONS
| Model | FSP350-50SAC |
| Format | SFX |
| Power supply | 350W |
| PFC | Active PFC |
| Power supply fan | 80mm |
| Efficiency | 80 Plus Bronze |
| Dimensions (L x W x H) | 100 x 125 x 63.5 (mm) 3.94 x 4.92 x 2.50 (inch) |
| Hold-up time at 100% | 115V / 60Hz: >= 16ms 230V / 50Hz: >= 16ms |
| Operating altitude | 2,000 meters above sea level |
| Working temperature | 0°C to 50°C |
| Storage temperature | -20°C to +80°C |
| Working humidity | 90% RH non-condensing |
| Storage humidity | 90% RH non-condensing |
| MTBF | 100,000 hours of continuous operation at 25°C, Max. output load |
| Input voltage | 90-264Vac |
| Input frequency | 50-60Hz |
| Input current | 115Vac @ 5A, 230Vac @ 2A |
.
ParametryPorovnání
Formát zdroje
SFX
Konektory
SATA 15-pin
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 4-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Výkon zdroje (W)
350
