FRACTAL DESIGN vodní chladič Celsius S36, 3x120mm

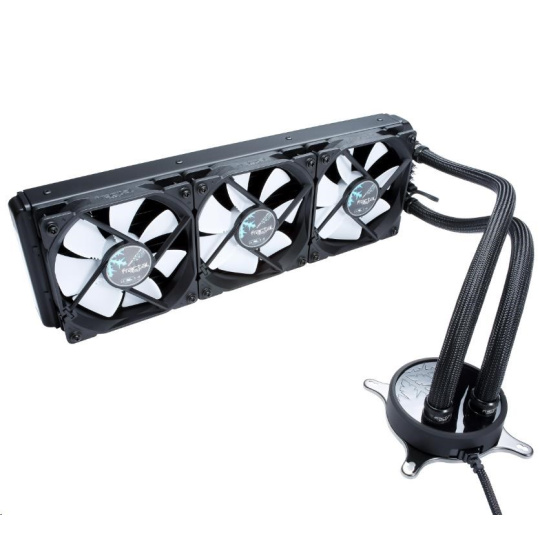

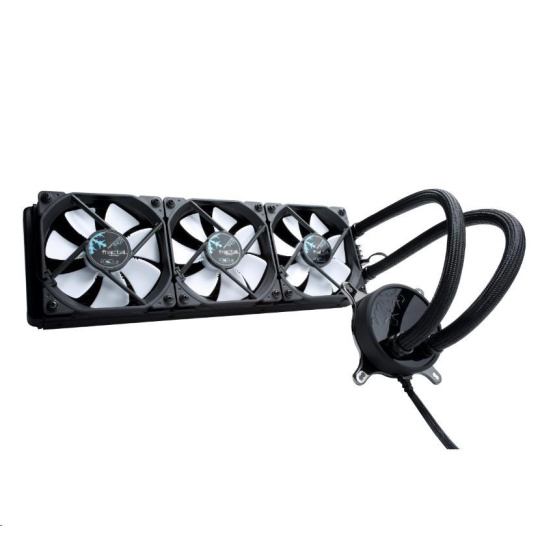

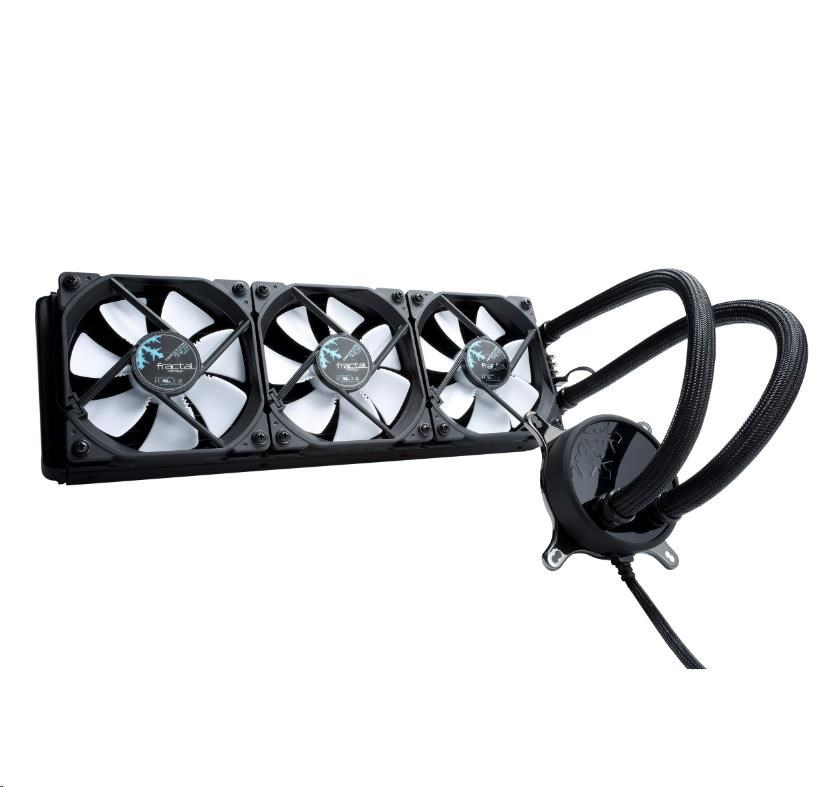

Celsius S36
The Celsius series is all about delivering the best possible cooling with the least possible noise. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5.
- Smart temperature-controlled mode adjusts fan/pump speeds in real-time
- PWM mode enables precision manual tuning for any situation
- Included PWM fans with wide speed adjustment range (500-2000 RPM)
- Compatible with LGA 1700 and AM5
TECHNICAL SPECIFICATIONS

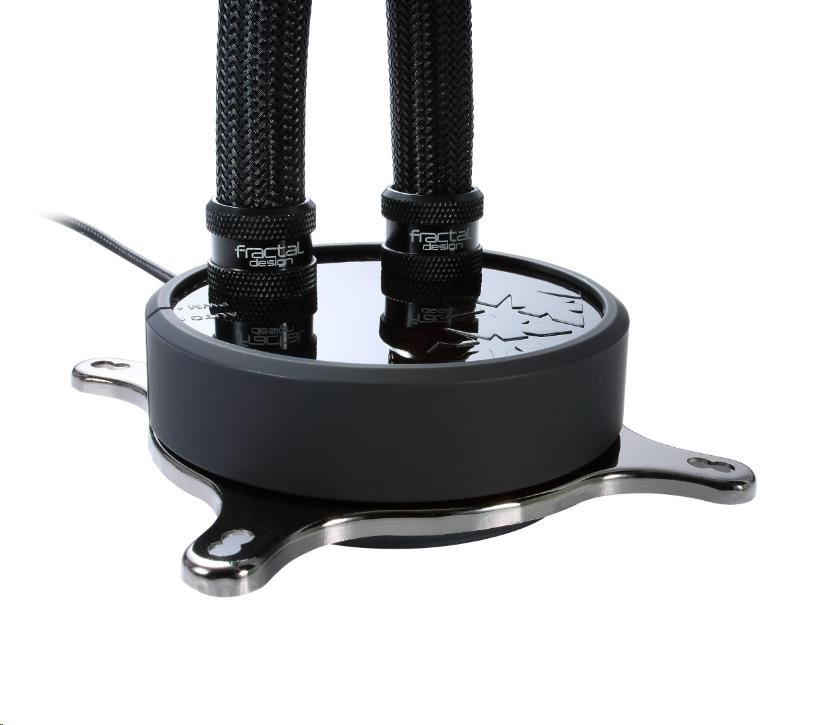

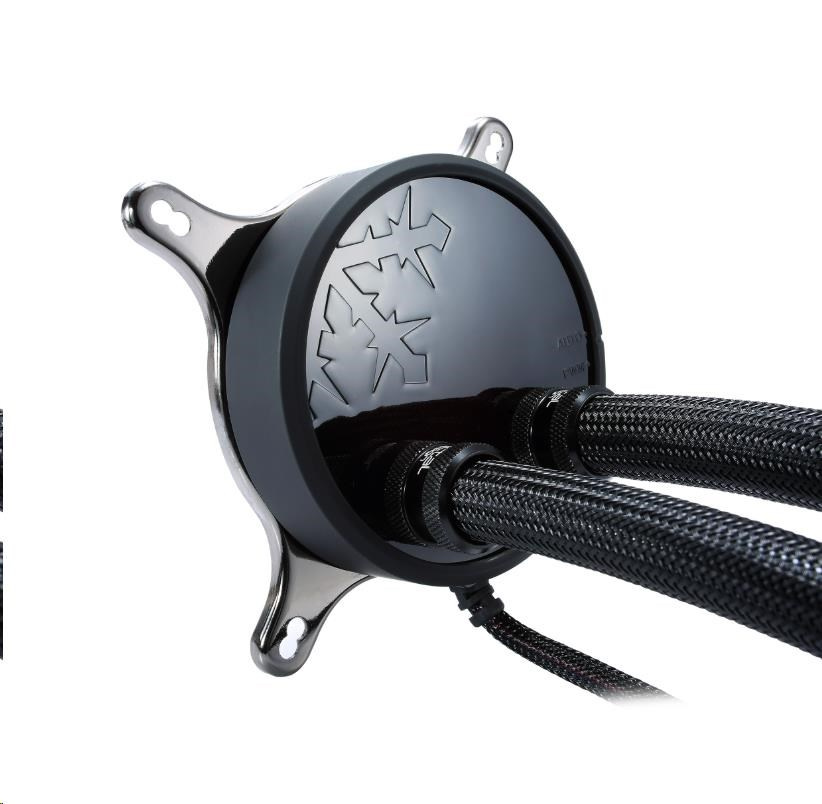

| Coldplate technology | Fifth generation |

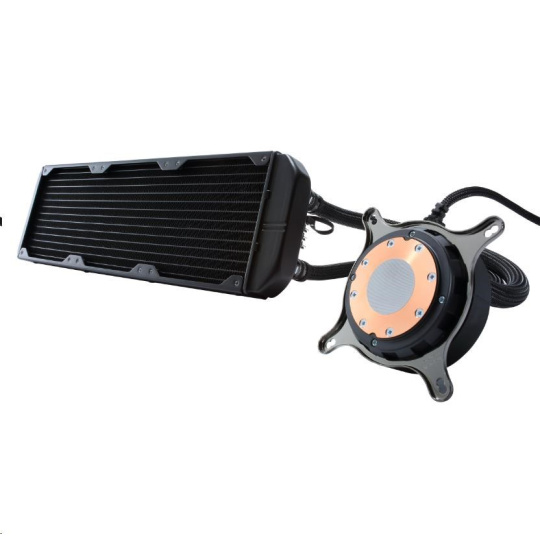

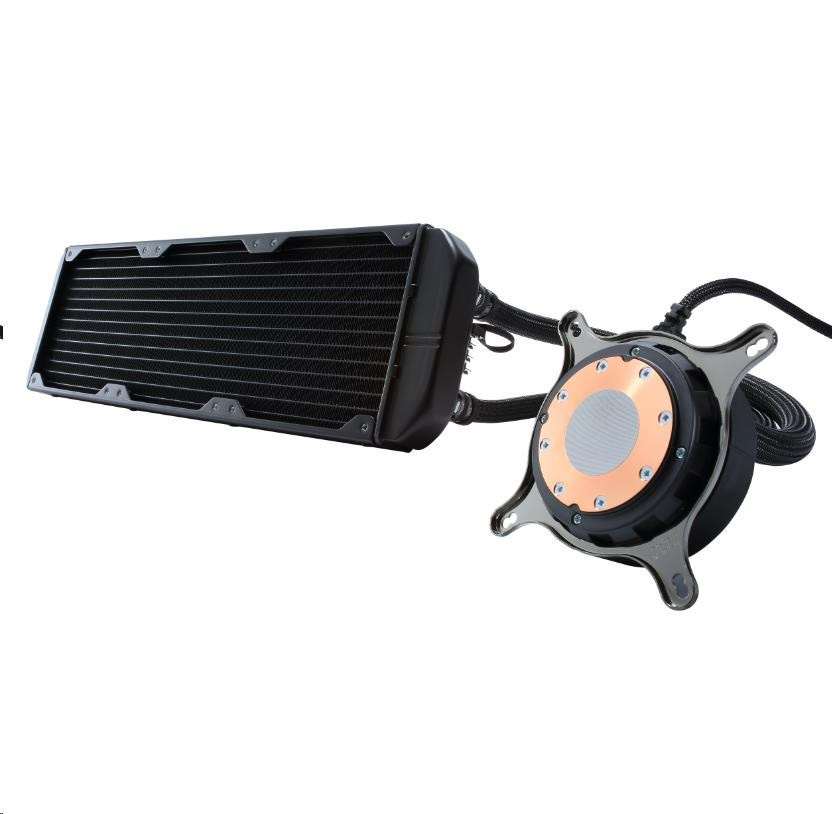

| Coldplate material | Copper |
| Additional sound dampening | Integrated |
| Thermal paste | Pre-applied, high thermal conductivity |
| Sockets supported (Intel) | 1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-v3, 2066 (via included 2011-v3 kit) |
| Sockets supported (AMD) | AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) “CPU brackets and screws may vary due to manufacturer revisions.” |
| Tube length | 400 mm |
| Tube material | Sleeved low-permeability rubber tubes |

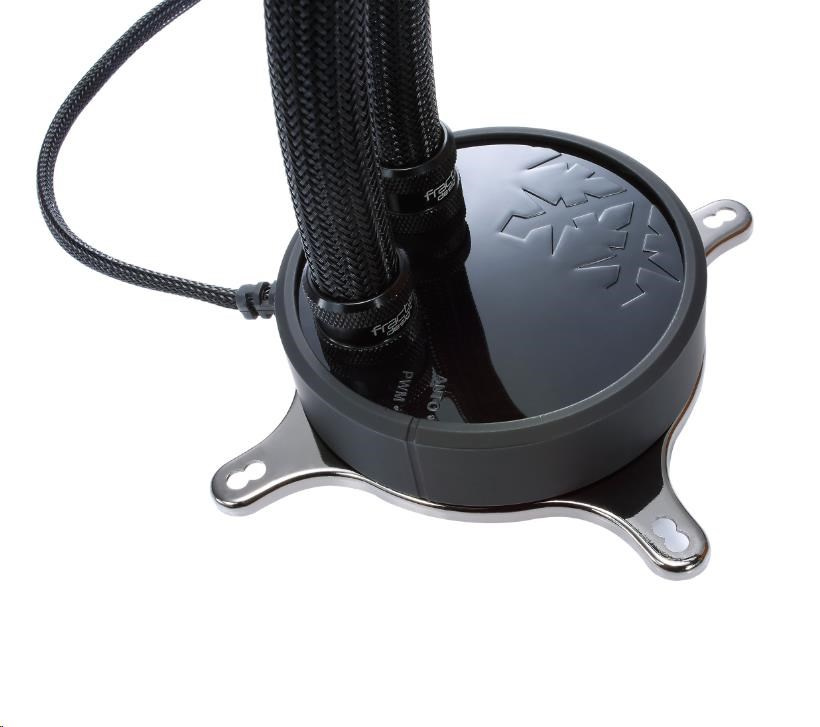

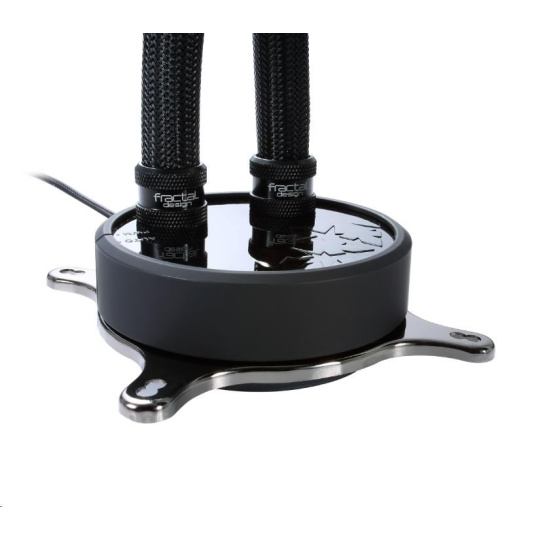

| Fittings, block side | Durable metal fittings, non-removable |

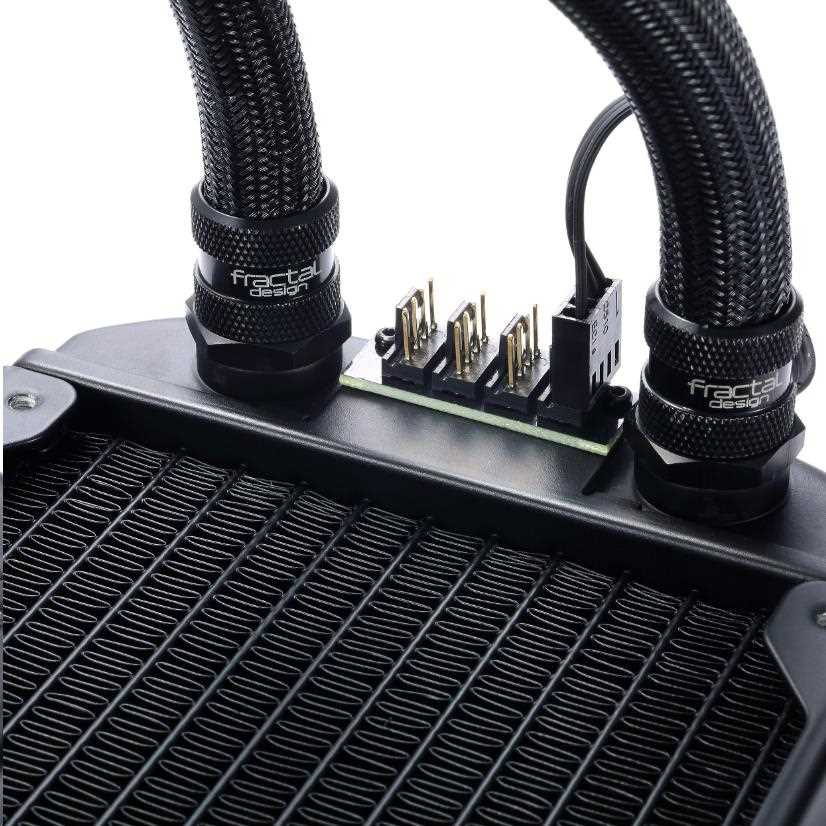

| Fittings, radiator side | Durable metal fittings, G 1/4" thread |

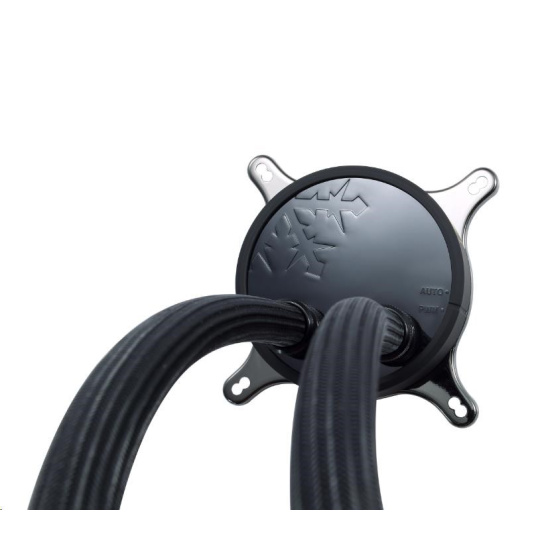

| Fan control | Integrated dual mode |
| Warranty | 5-year pre-expansion (Post-expansion, only individual components of the Fractal Design Celsius S24 or S36 are covered) |
| Fan specifications | |

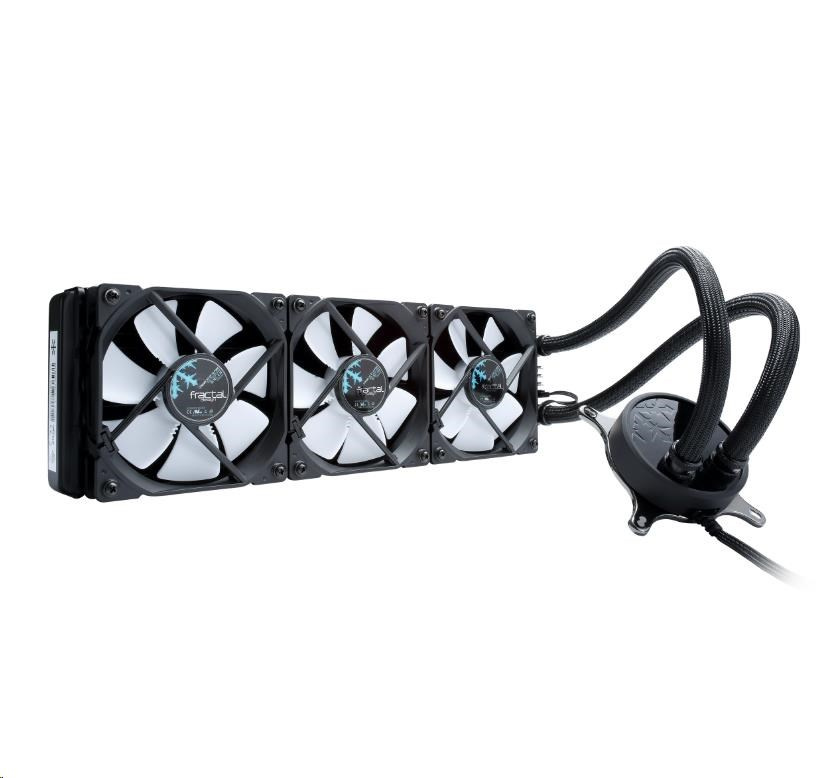

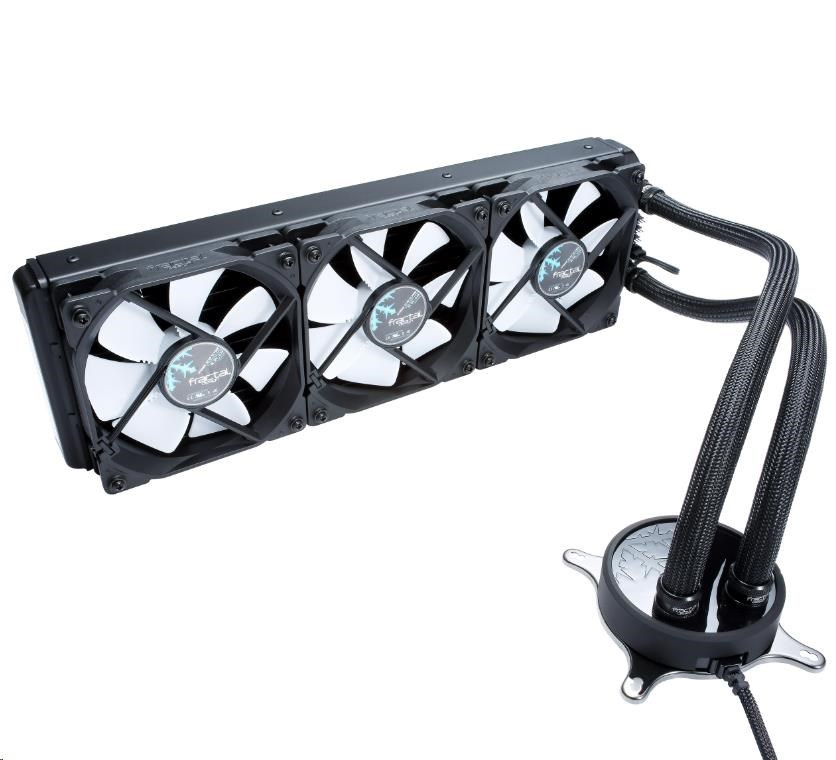

| Fan type | Fractal Design Dynamic X2 GP-12 PWM |
| Rotational speed | 500-2,000 RPM |
| Bearing | LLS |
| PWM control | Yes |
| Acoustical noise (full speed) | 32.2 dB (A) |
| Maximum air flow | 148.8 m3/h | 87.6 CFM |
| Maximum static pressure | 2.30 mm H2O |
| Input voltage | 12 V |
| Maximum input current | 0.2 A |
| MTBF | >100,000 hours |
| Pump specification | |
| Rotational speed | 1,950-3,150 RPM |
| Bearing type | Ceramic bearing and shaft |
| PWM control | Yes |
| Acoustical noise (full speed) | 20,0 dB (A) |
| Maximum pressure, 50°C | 1m H2O | 1.45 PSI |
| Input voltage | 12 V |
| Input current (without fans) | 0.15 A |
| Rated input power (with fans) | 9 W |
| MTTF | >50,000 hours |

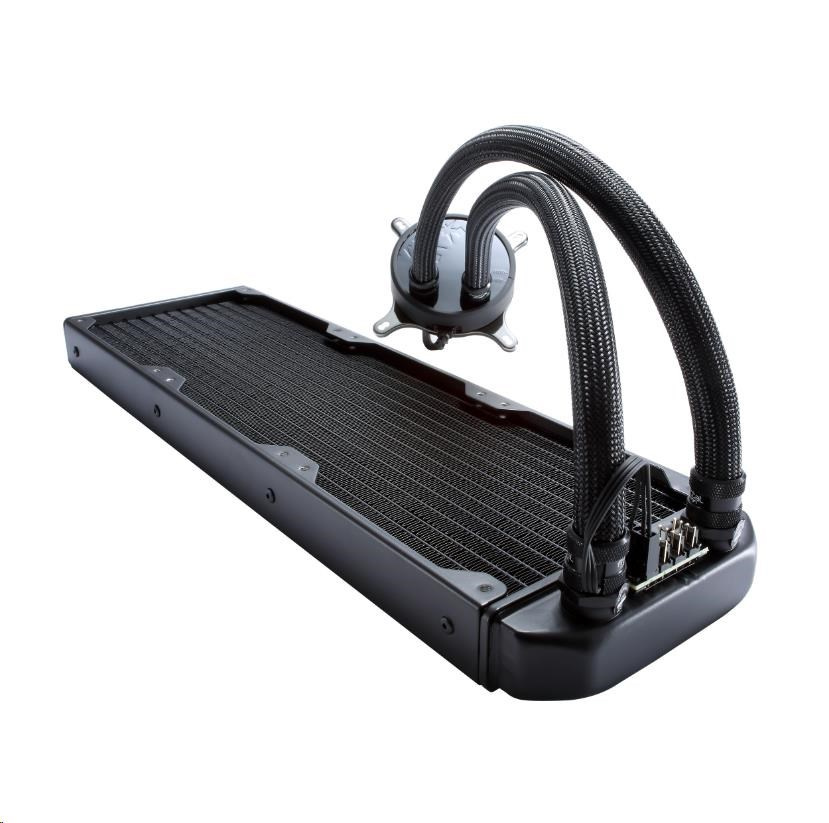

| Radiator specification | |
| Dimensions | 403 x 123 x 30 mm |
| Housing material | Aluminum |
| Fin material | Aluminum |
| Port threads | G 1/4" |
| Fan screw threads | UNC 6-32 |
| Other | |

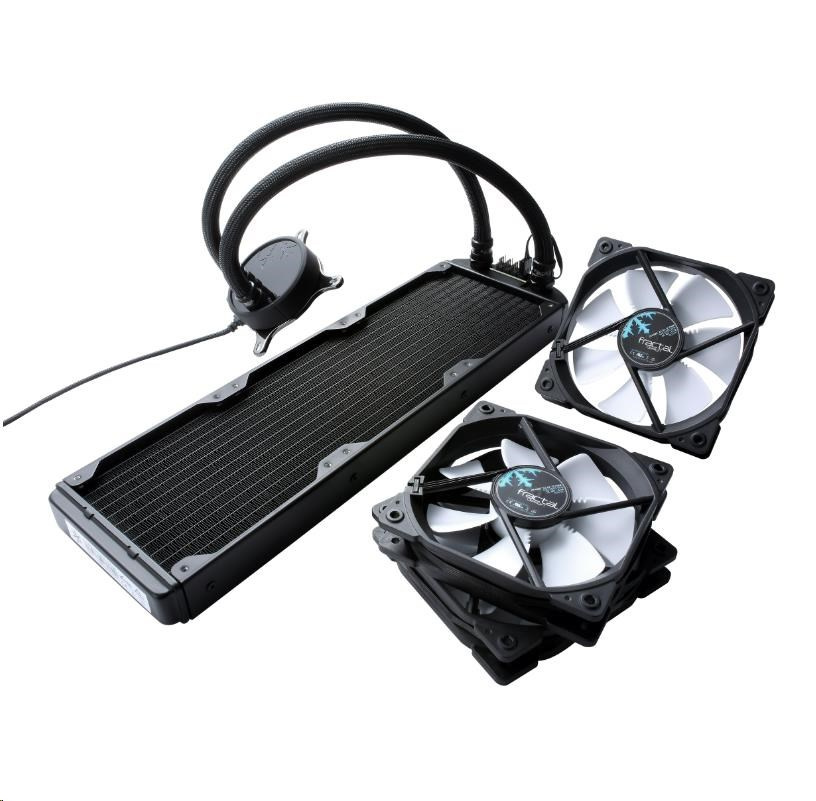

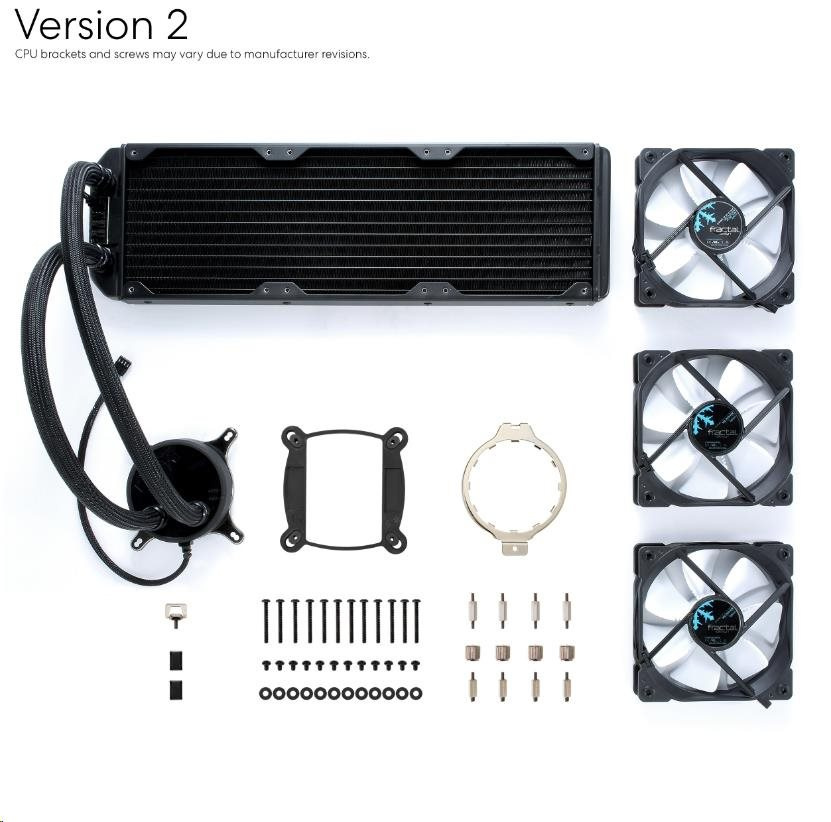

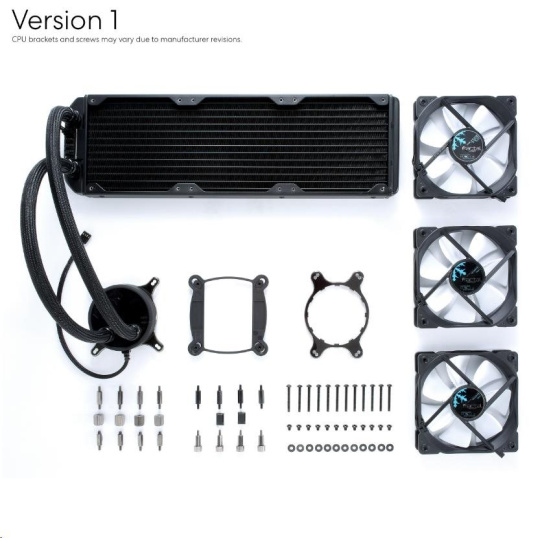

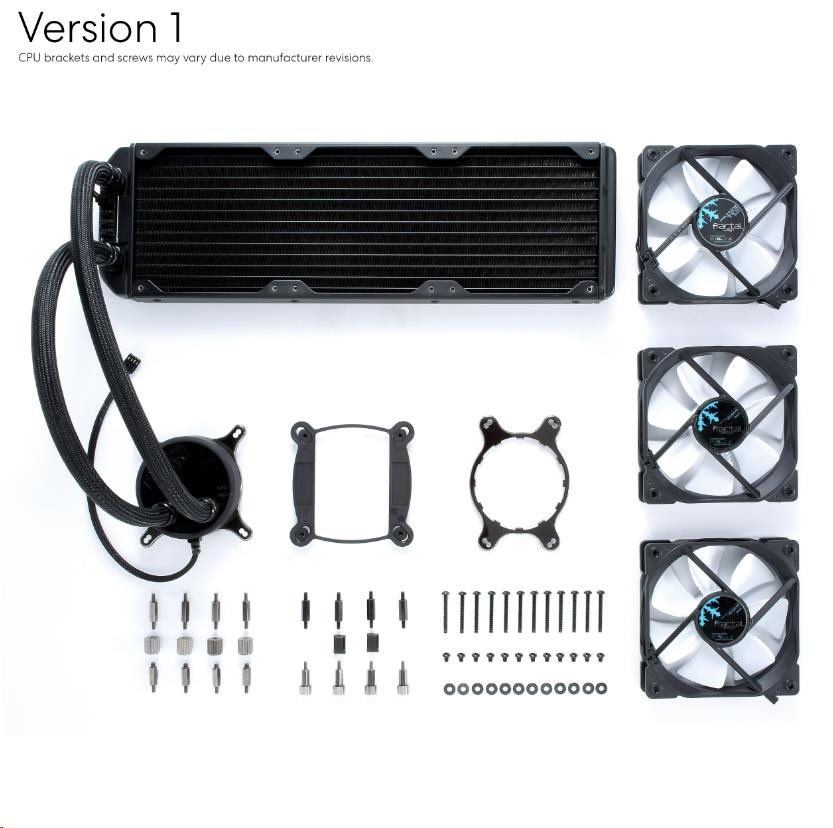

| Package contents | Celsius S36 system, 3x Dynamic X2 GP-12 PWM fans, Multilingual user manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws |
| Package Dimensions | 472 x 144 x 177 |
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
.ParametryPorovnání
Využití chladiče
Na procesory
Typ chladiče
Vodní
Velikost ventilátoru
120x120
