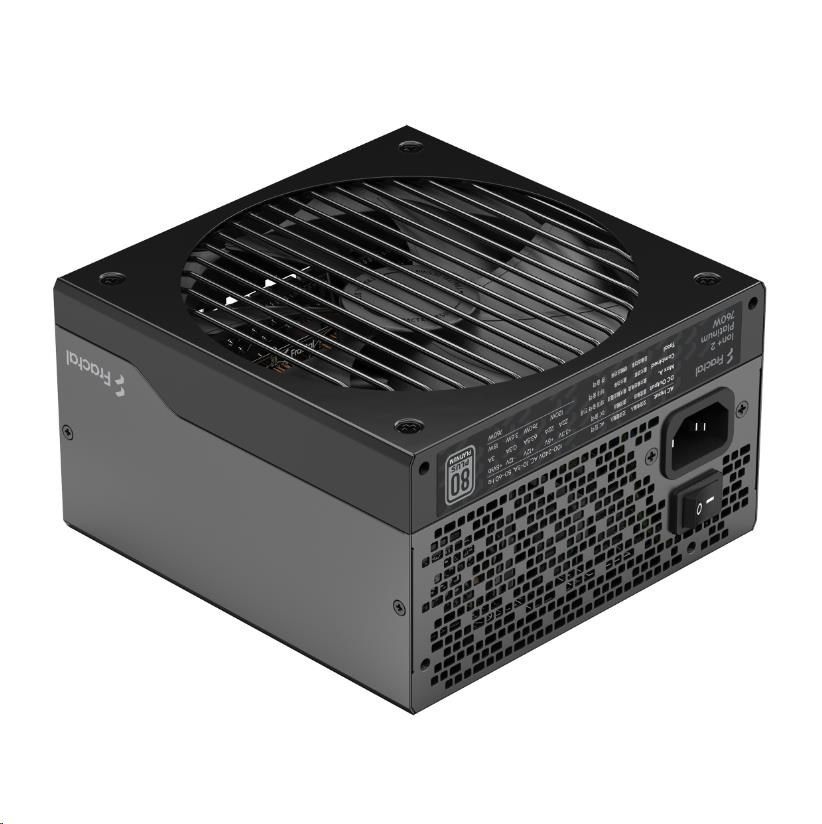

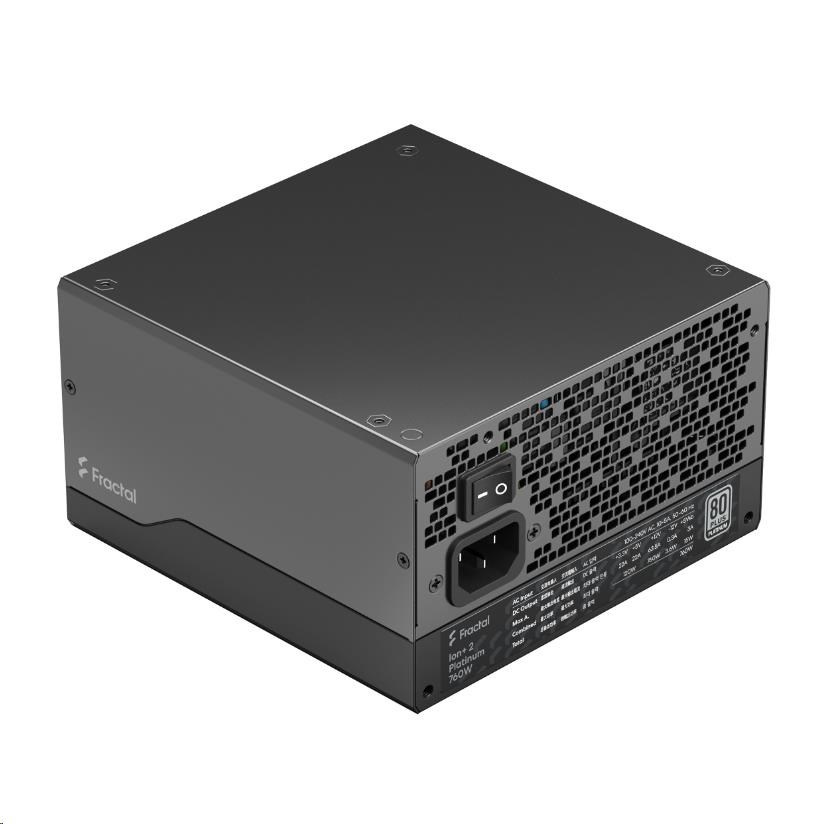

FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
Popis a parametry
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

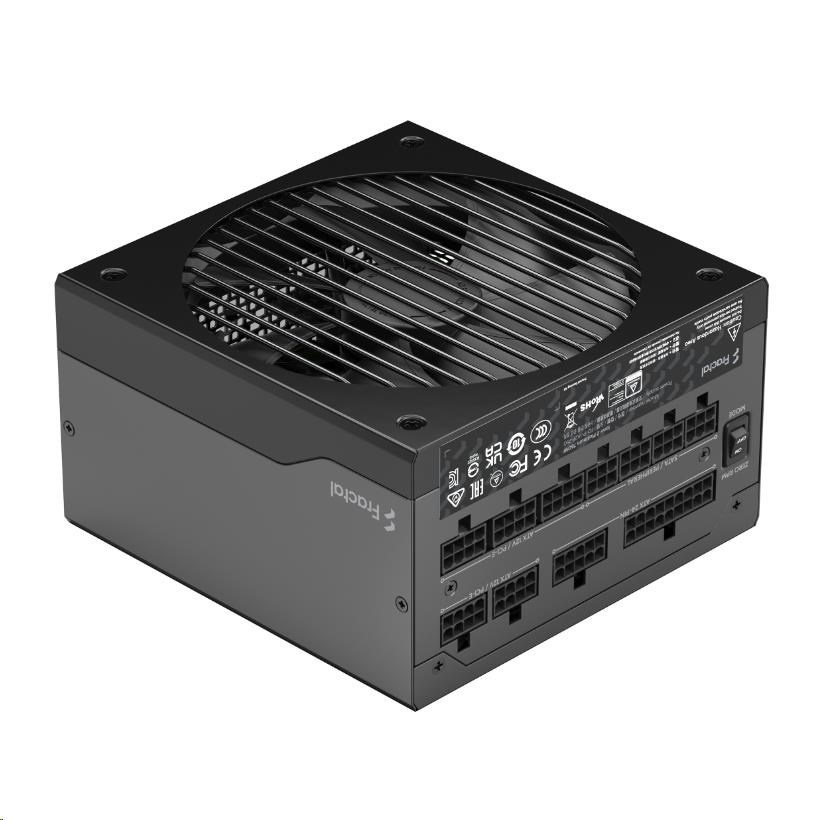

Ion+ 2 Platinum 760W
The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.
- 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
- Great electrical output quality with tight voltage regulation and low ripple and noise

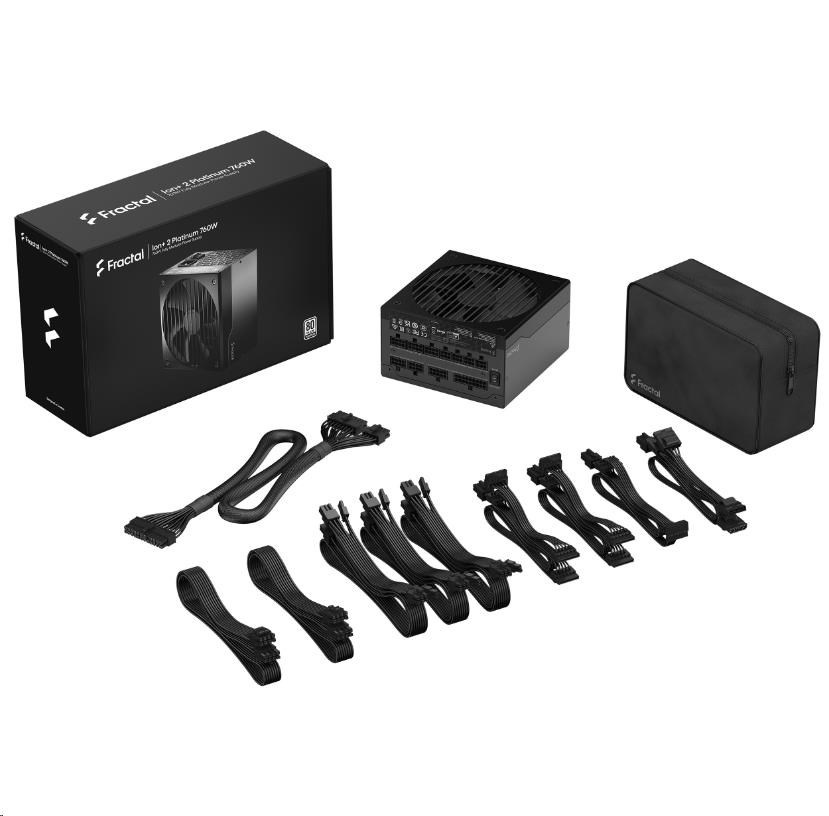

- Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
TECHNICAL SPECIFICATIONS
| 80PLUS® certification | Platinum |

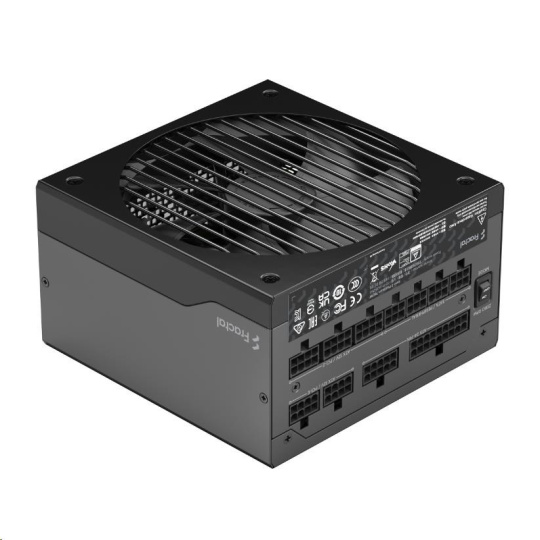

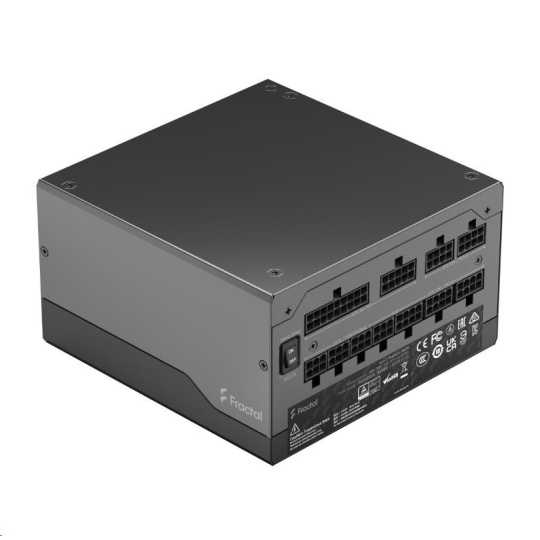

| Modular cables | Fully Modular |

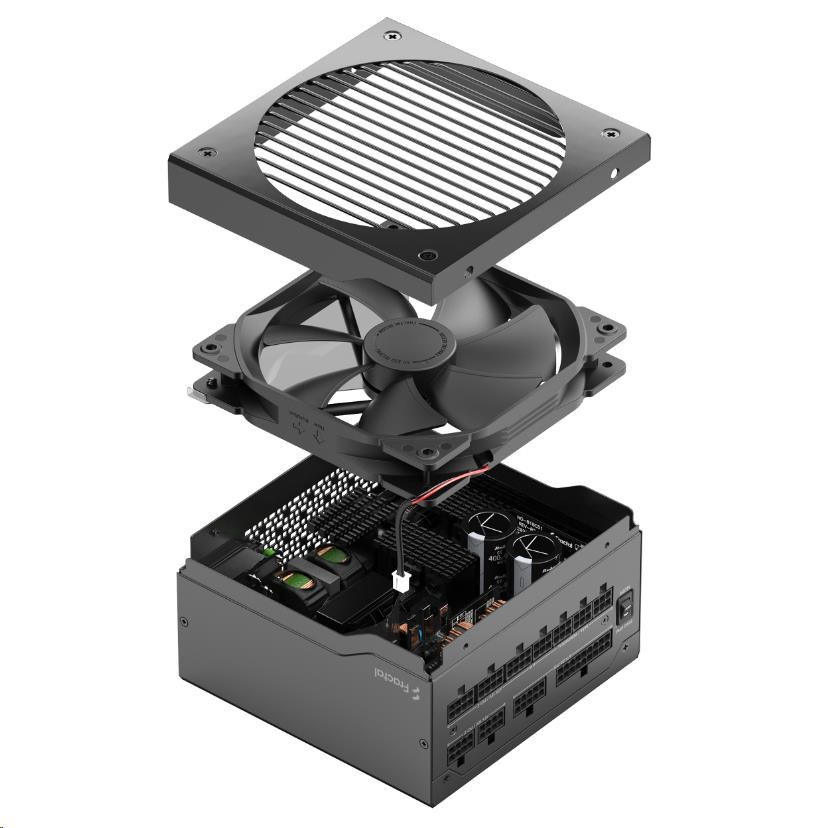

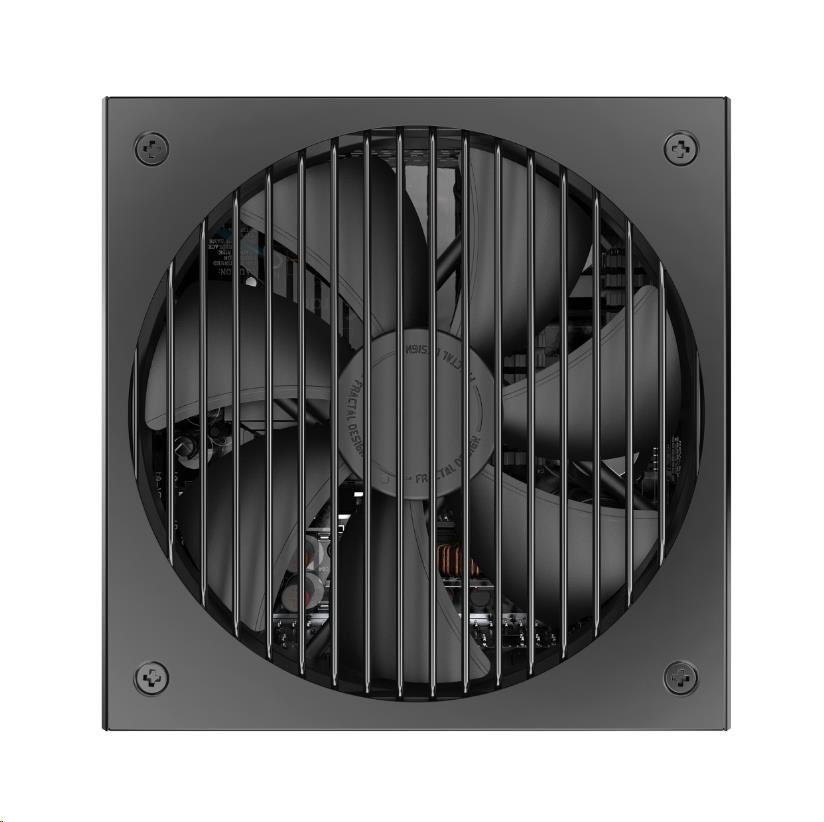

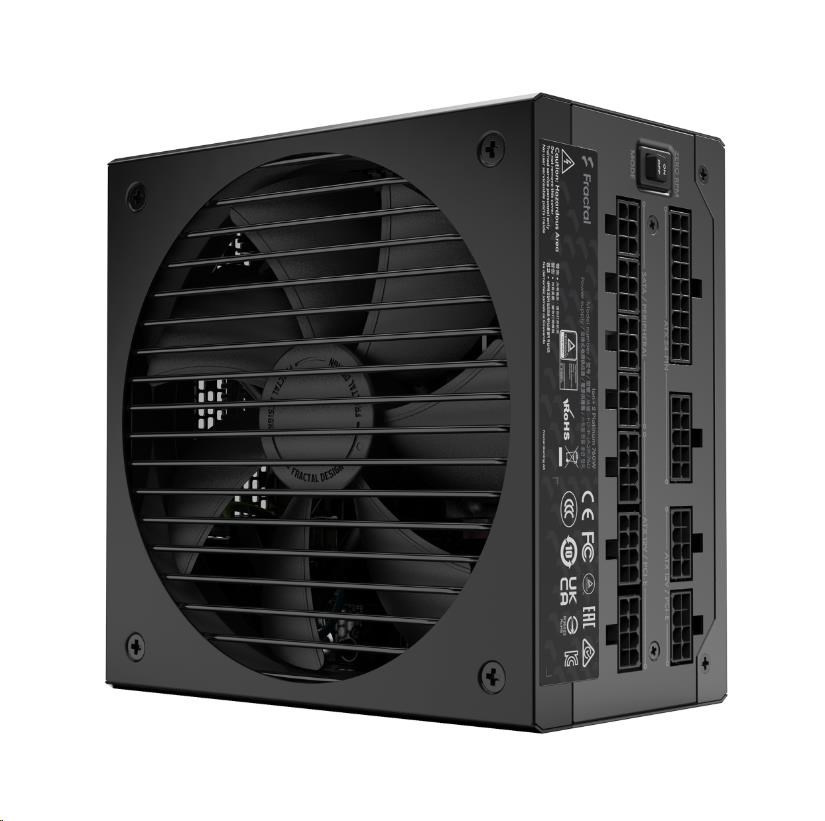

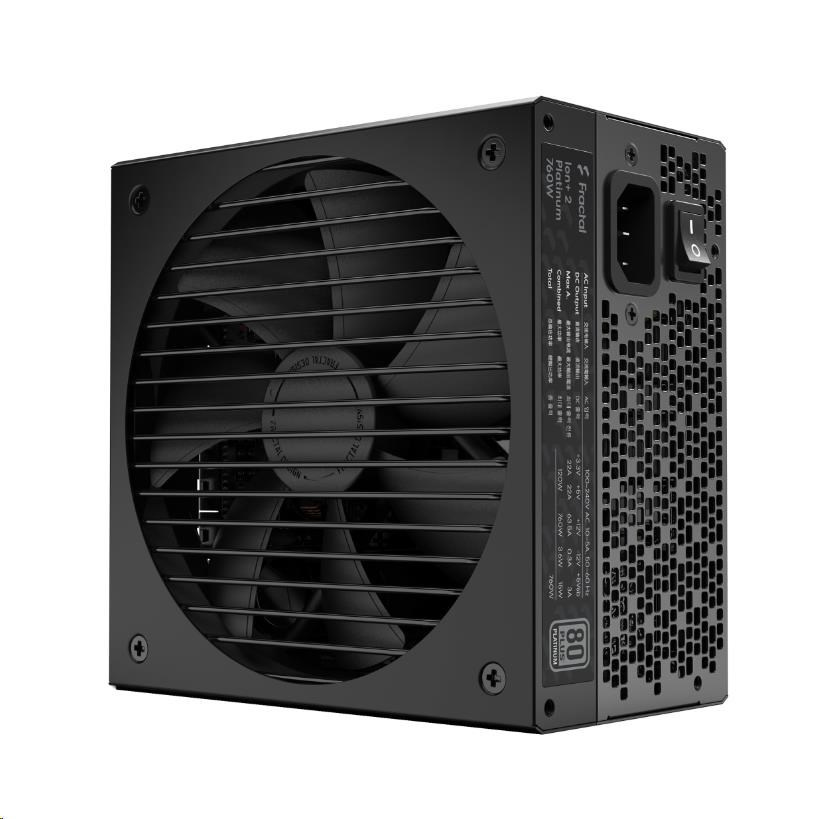

| Fan type | 140 mm FDB bearing Fractal Design Dynamic series fan |
| Maximum operating temperature (full load) | 50°C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |

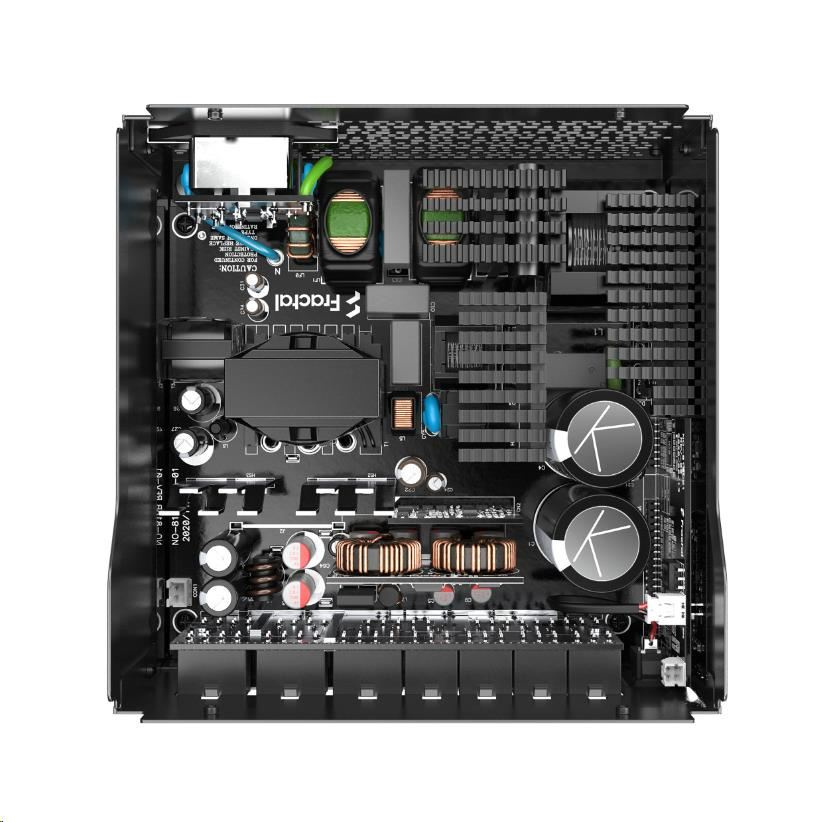

| Capacitors | Japanese |
| Life expectancy | 100,000 hours |
| Cable type | Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires |
| Input voltage | 100-240V C |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Protection features | Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection |
| PSU specification compliance | ATX12V 2.52; EPS12V 2.92 |
| Sleep state compliance | C6/C7 |
| Approvals & certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
| Warranty | 10 years |

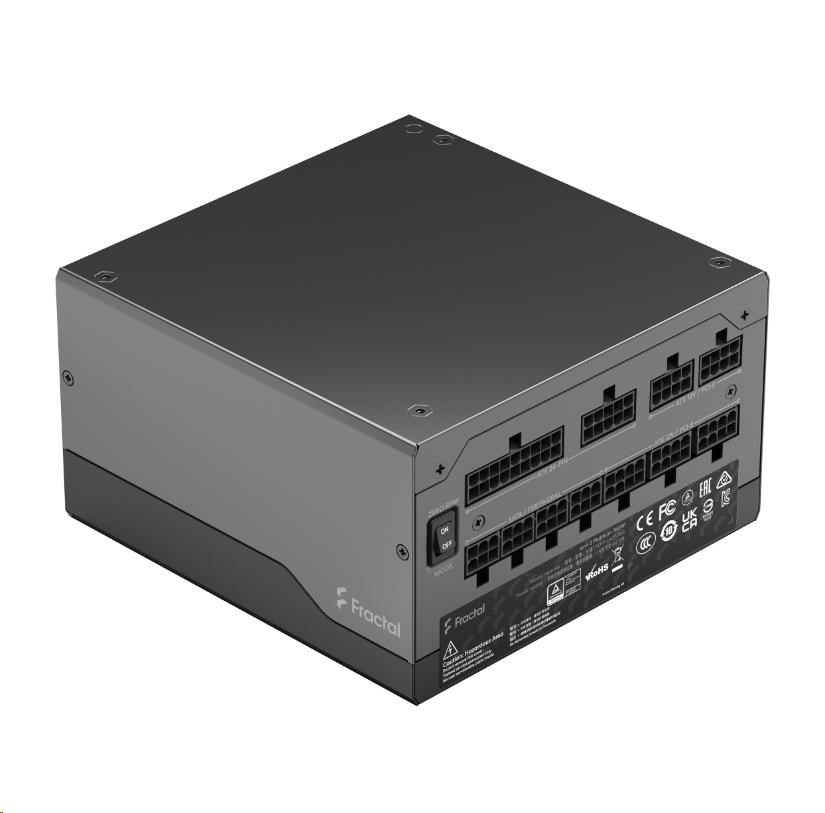

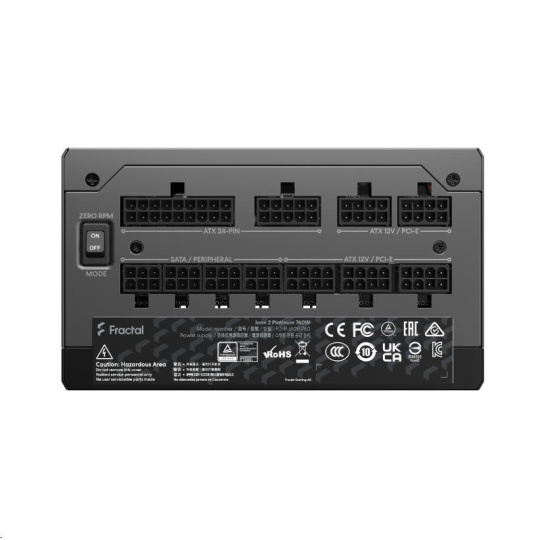

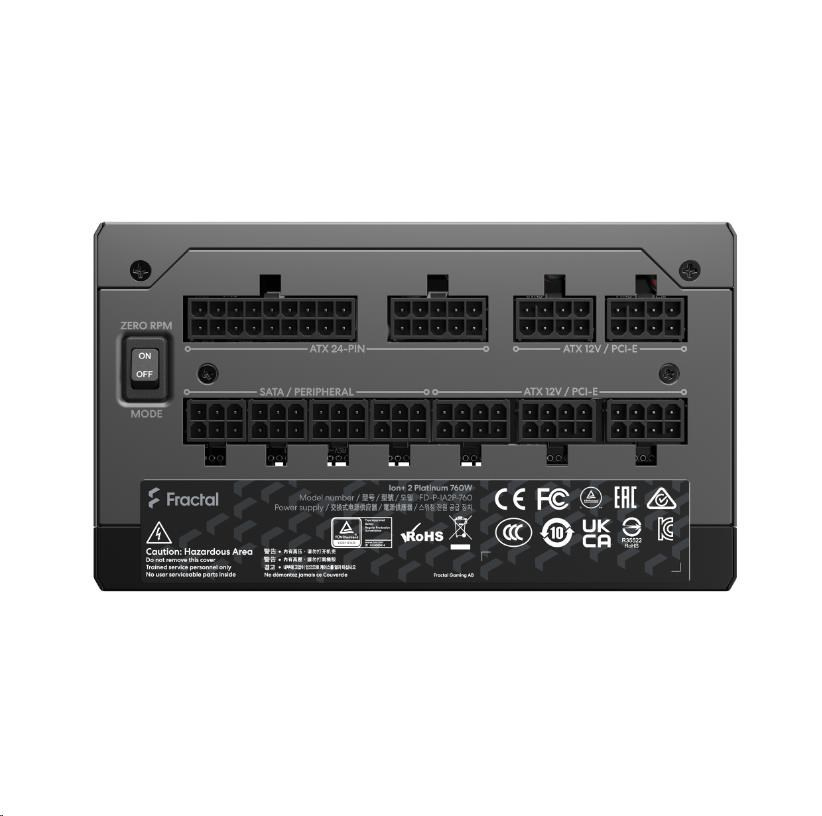

| Connectors | |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 6 |
| SATA | 10 |
| Peripheral | 4 |

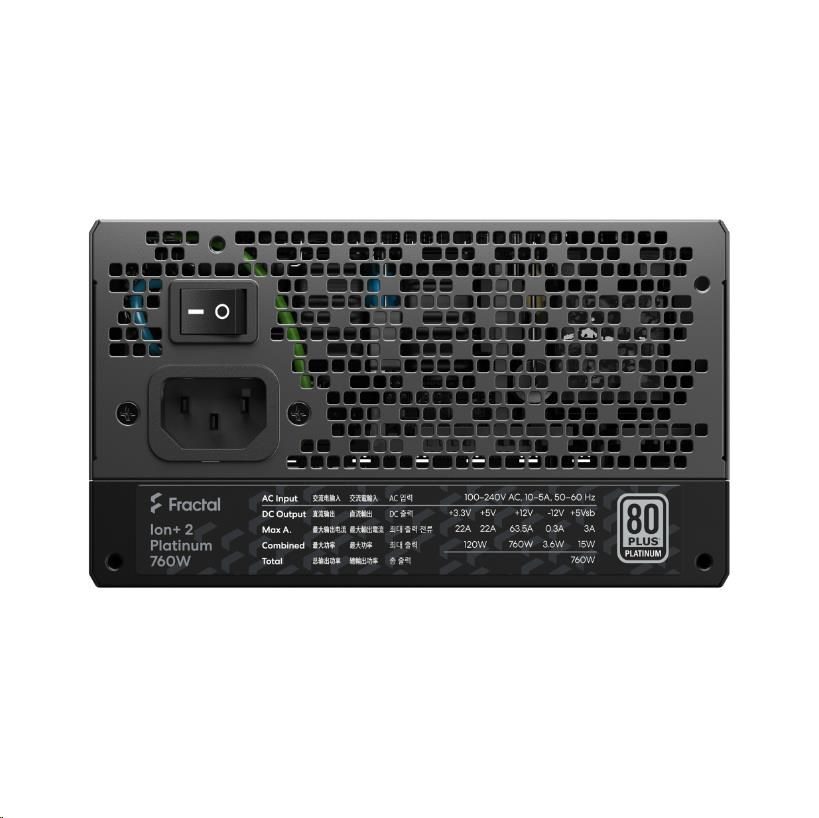

| DC Output | |
| 3.3V | 22A |
| 5V | 22A |
| 3.3V and 5V combined | 120W |
| 12V | 63.3A |
| -12V | 0.3A |
| +5Vsb | 3A |
| Total Power | 760W |
| Cable Configuration (length in mm between connectors) | |
| ATX 20+4 pin | 600 |
| ATX 12V 4+4 pin | 700 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+120 |
| SATA | 400+150+150+150 mm & 650+150mm |
| Peripheral | 400+150+150+150 mm |
.
ParametryPorovnání
Konektory
PCIe 8-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Platinum
Modulární kabeláž
Ano
Výkon zdroje (W)
760
