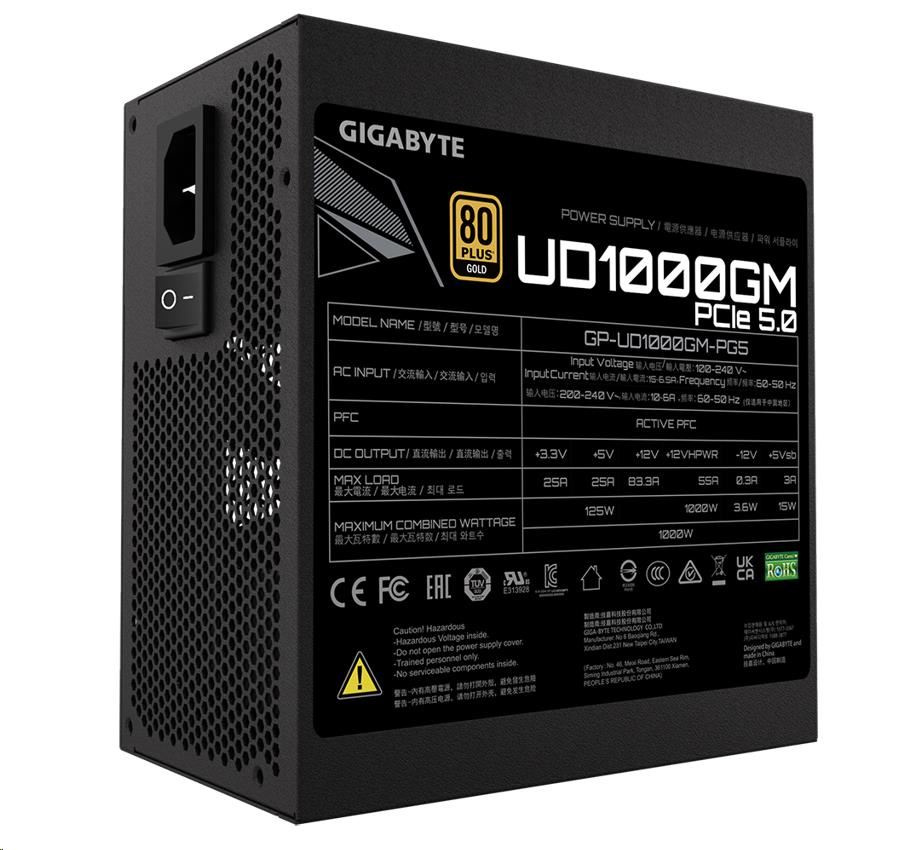

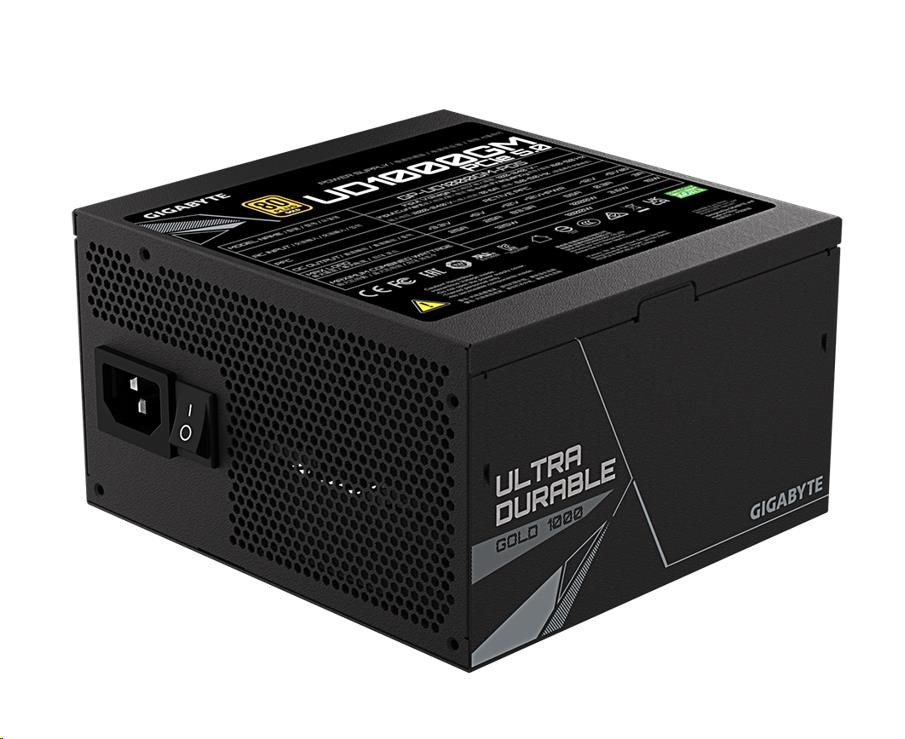

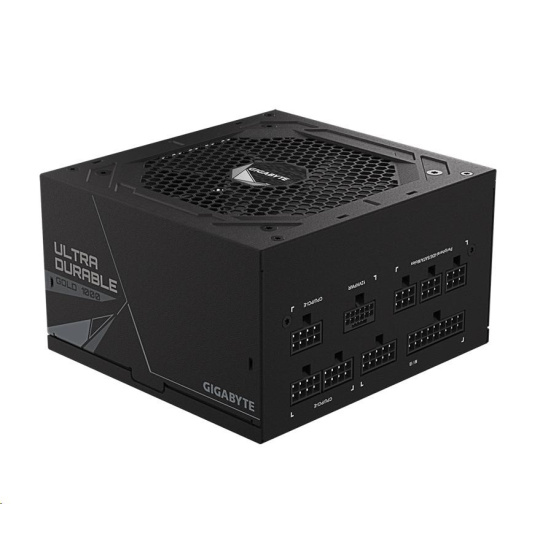

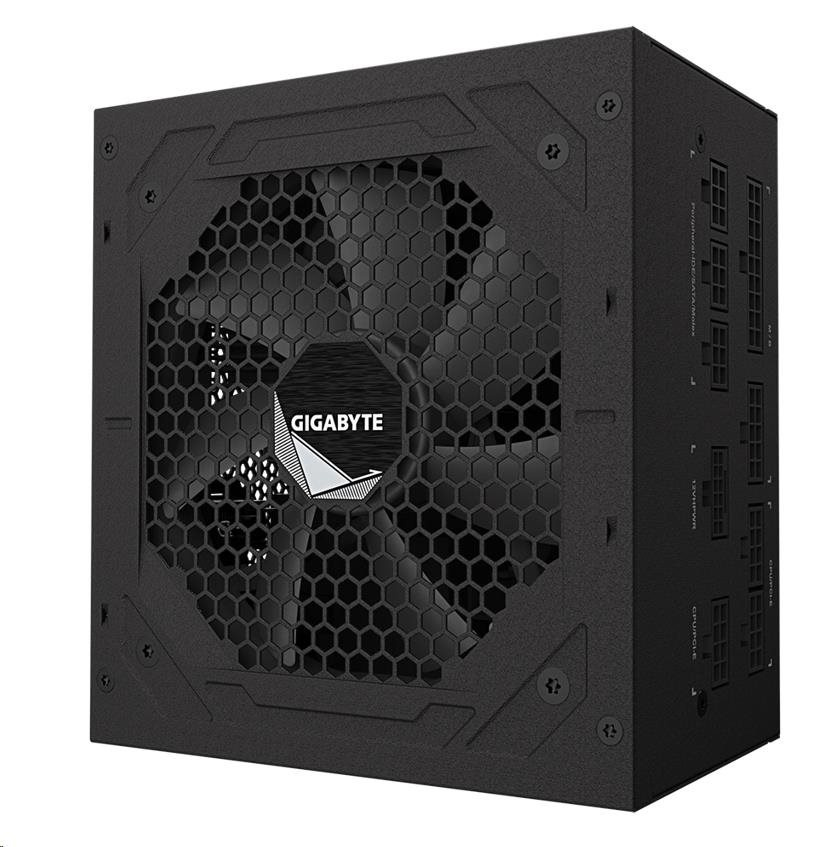

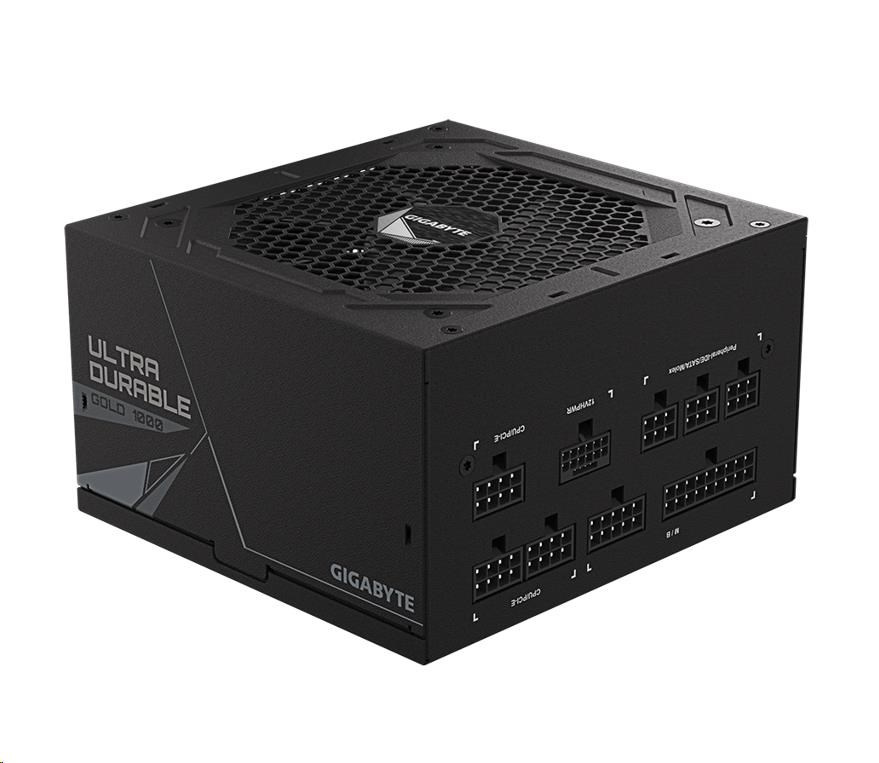

GIGABYTE zdroj UD1000GM PG5 Rev.2.0, 1000W, 80+ Gold, 120mm fan
Popis a parametry
GIGABYTE zdroj UD1000GM PG5 Rev.2.0, 1000W, 80+ Gold, 120mm fan
UD1000GM PG5 (rev. 2.0)
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution

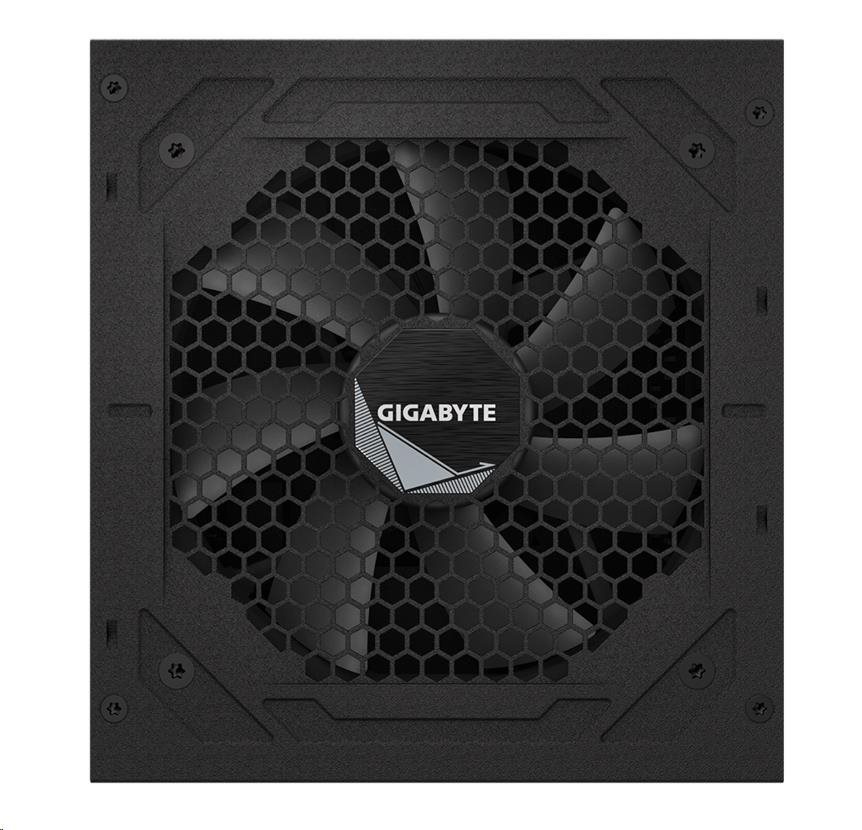

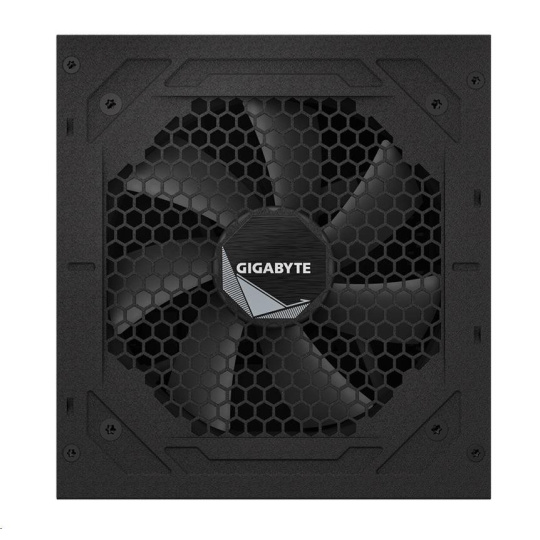

- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty (Adjusted according to different regions)
Model
GP-UD1000GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1000W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black

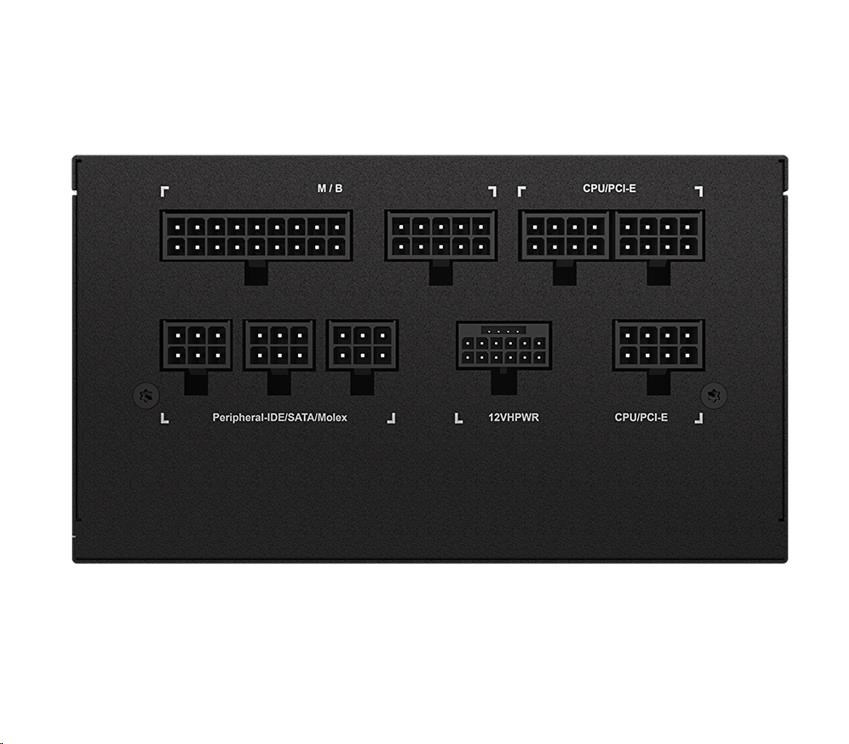

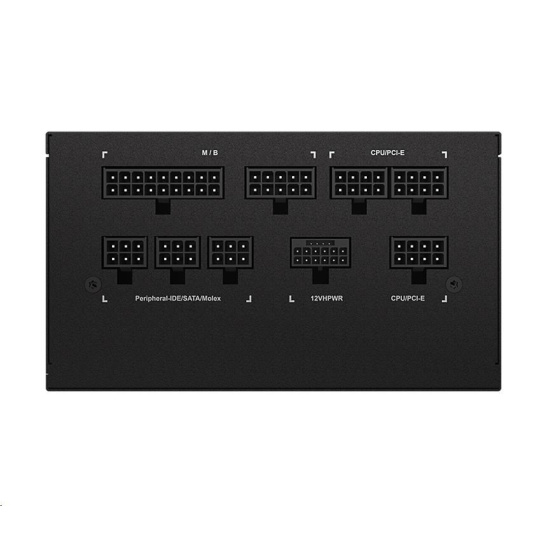

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

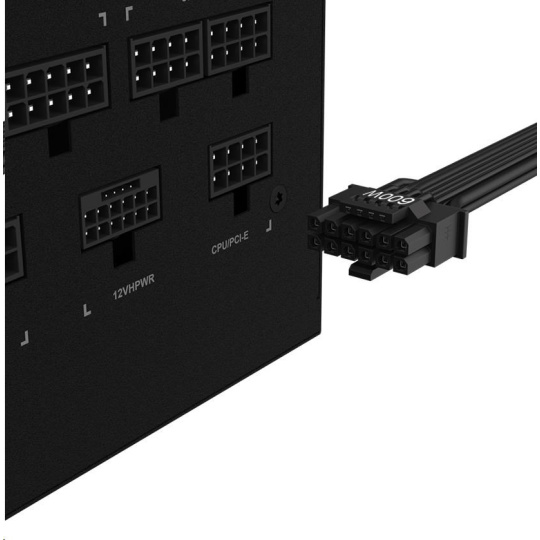

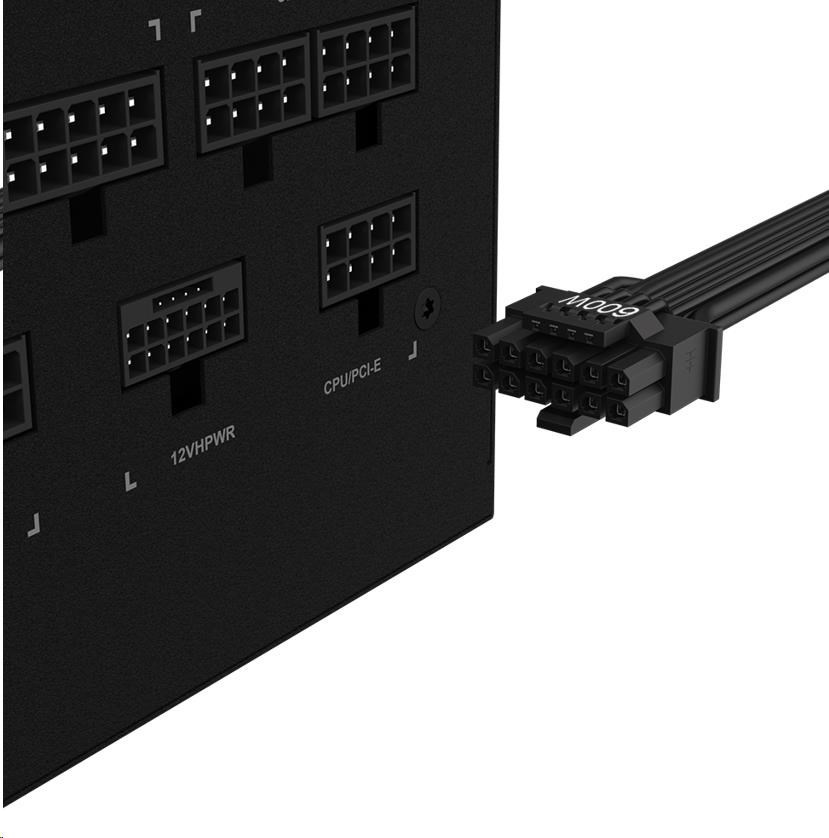

PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
8pin CPU 2x
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Výkon zdroje (W)
1000
