HPE PL ML350g11 4514Y (2.0G/16C) 2x32G (p64706) MR408i-o 2x2.4TB/10k SAS 8-24SFFU3 4x1Gb 2x1000W NBD333 Smart Choice
Popis a parametry
HPE PL ML350g11 4514Y (2.0G/16C) 2x32G (p64706) MR408i-o 2x2.4TB/10k SAS 8-24SFFU3 4x1Gb 2x1000W NBD333 Smart Choice
HPE PL ML350g11 4514Y (2.0G/16C) 2x32G (p64706) MR408i-o 2x2.4TB/10k SAS 8-24SFFU3 4x1Gb 2x1000W NBD333 Smart Choice

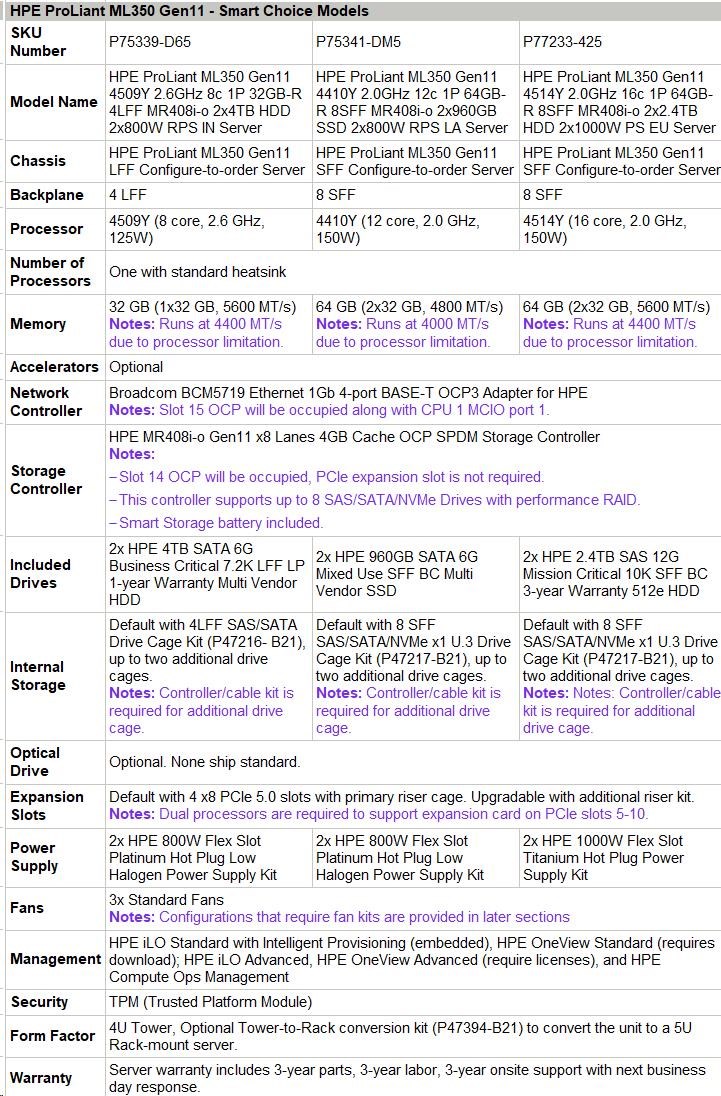

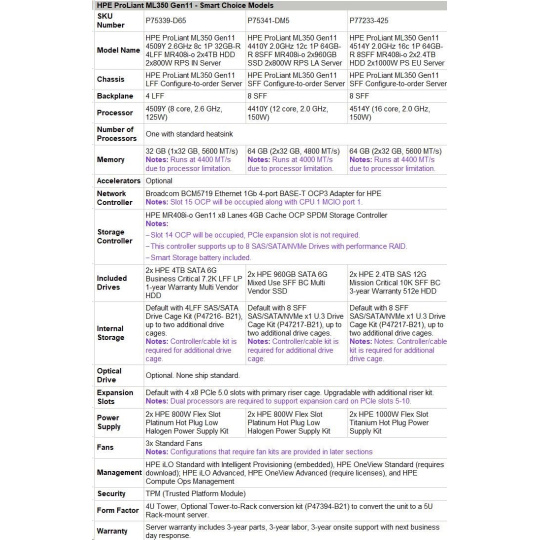

| Specification | P77233-425 |
|---|---|
| Model Name | HPE ProLiant ML350 Gen11 4514Y 2.0GHz 16c 1P 64GB-R 8SFF MR408i-o 2x2.4TB HDD 2x1000W PS EU Server |
| Chassis | SFF Configure-to-order |
| Backplane | 8 SFF |
| Processor | 4514Y (16 core, 2.0 GHz, 150W) |
| Number of Processors | One with standard heatsink |
| Memory | 64 GB (2x32 GB, 5600 MT/s) Runs at 4400 MT/s due to processor limitation. |
| Network Controller | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter, Slot 15 OCP occupied with CPU 1 MCIO port 1. |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller Slot 14 OCP occupied. Supports up to 8 SAS/SATA/NVMe Drives with RAID.Smart Storage battery included. |
| Included Drives | 2x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e HDD |
| Internal Storage | 8 SFF Drive Cage (P47217-B21) Default with 8 SFF SAS/SATA/NVMe x1 U.3 Drive Cage Kit (P47217-B21), up to two additional drive cages. Notes: Notes: Controller/cable kit is required for additional drive cage. |
| Optical Drive | Optional. None ship standard. |
| Expansion Slots | 4 x8 PCIe 5.0 slots standard; more with riser kitDual processors required for slots 5-10. |
| Power Supply | 2x 1000W Flex Slot Titanium |
| Fans | 3x Standard FansAdditional kits required for certain configs. |
| Management | HPE iLO Standard, HPE OneView Standard (download)Advanced features require licenses |
| Security | TPM (Trusted Platform Module) |
| Form Factor | 4U Tower; Optional 5U Rack-mount conversion kit (P47394-B21) |
| Warranty | 3-year parts, labor, and onsite support with next business day response |
.
ParametryPorovnání
Řada procesorů
Intel 16 Core Xeon
RAID
60
Provedení serveru
Tower
Počet instalovaných HDD
2
Redundantní zdroj
Ano
Redundantní větráčky
Volitelně
Maximální počet slotů PCIe
6 a více
Hot-plug cage pro HDD
2.5" SFF
Model procesoru
Intel Xeon 5416S
Výrobce CPU
Intel
HDD Kapacita (GB)
2400
Velikost paměti RAM (GB)
64
Maximální paměťová kapacita serveru (GB)
8192
Maximální počet procesorů
2
Maximální počet HDD v serveru
24
HPE PL ML350g11 4514Y (2.0G/16C) 2x32G (p64706) MR408i-o 2x2.4TB/10k SAS 8-24SFFU3 4x1Gb 2x1000W NBD333 Smart Choice
