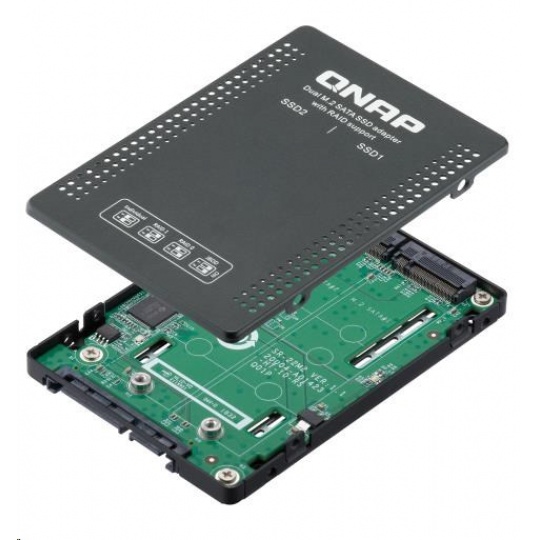

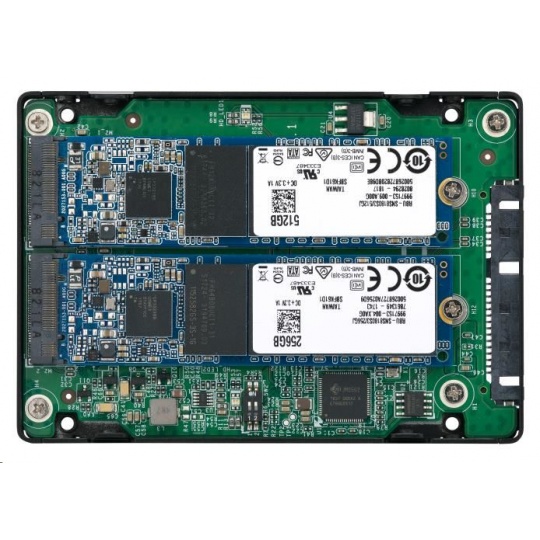

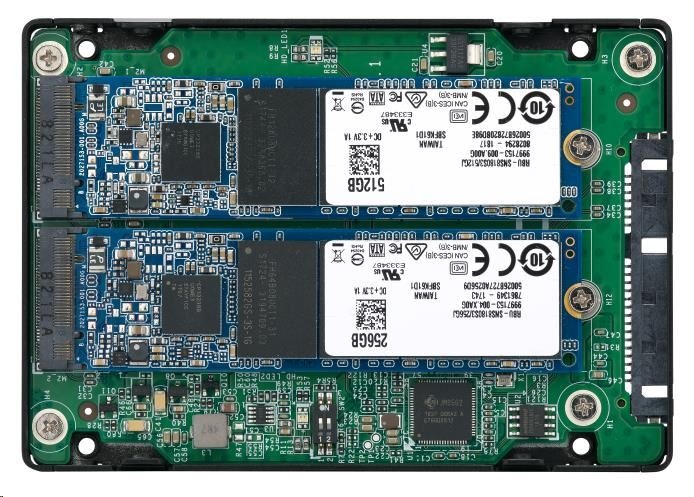

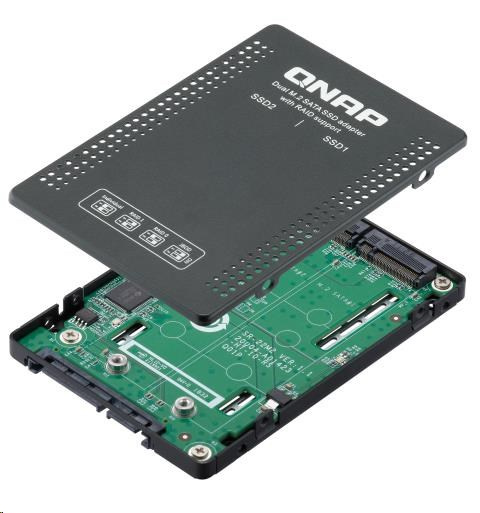

QNAP QDA-A2MAR diskový adaptér 2x M.2 SATA do 2,5" SATA
Popis a parametry
QNAP QDA-A2MAR diskový adaptér 2x M.2 SATA do 2,5" SATA
QNAP QDA-A2AR
Použijte dva M.2 SATA SSD moduly v jedné 2,5” pozici pro diskové jednotky SATA s podporou RAID pro počítače a NAS
Model QDA-A2MAR může pojmout dva M.2 SATA SSD moduly do jedné 2,5” pozice pro diskové jednotky SATA. Pro QDA-A2MAR není nutný žádný softwarový ovladač a lze jej nainstalovat do počítače/pracovní stanice (Windows®, Linux®) nebo QNAP NAS, aby bylo možné flexibilně přidávat vysoce výkonné M.2 SATA SSD s konfiguracemi RAID s ohledem na různé úložné potřeby.
Stránky produktu: https://www.qnap.com/cs-cz/product/qda-a2mar
| Standard Warranty | 1 rok |
| Supported Drives | 2 x M.2 2280 SATA SSD (B Key) |
| Hostitelské rozhraní | SATA 6 Gb/s |
| Podporované operační systémy | 1. QTS 4.4.1 (or later) 2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2 3. Ubuntu |
| Dimensions (L x W x H) | 100,5 × 69,9 × 9,5 mm |
| Hmotnost | 0.1 kg |
| Podpora RAID | RAID 0, 1 |
| Poznámka | The connected drive may not reach its optimal performance due to protocol translation and some overhead. All the drive data will be cleared upon drive initialization or RAID mode switching with the QDA-A2MAR. Ensure that all data is backed up beforehand. Window and Linux PC supports all four modes mentioned above. QTS does not support Individual mode. It is recommended that only drives with identical model numbers and capacities are used to create a RAID 0/1 group because the total storage space will be equal to the size of the smallest drive. The SATA controller of the PC must support port multipliers to recognize two drives in the Individual mode configuration. Consult your system provider and install the latest drivers for your SATA controller. Installing a QNAP disk adapter in another QNAP disk adapter is not supported. (e.g. QDA-A2MAR cannot be installed in the QDA-A2AR.) TR-002/TR-004 RAID expansion enclosures do not support QDA-A2AR/QDA-A2MAR. Computer SATA ports or the USB to SATA adapters/cables that do not support 12V output (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR. QTS identifies the drives of QDA-A2MAR as a single volume. Installing at least two QDA-A2MAR in the NAS is required to use Qtier function. |
QNAP QDA-A2MAR diskový adaptér 2x M.2 SATA do 2,5" SATA
