SEASONIC zdroj 750W FOCUS SPX-750 (2021), 80+ GOLD
FOCUS SPX-750 (2021)

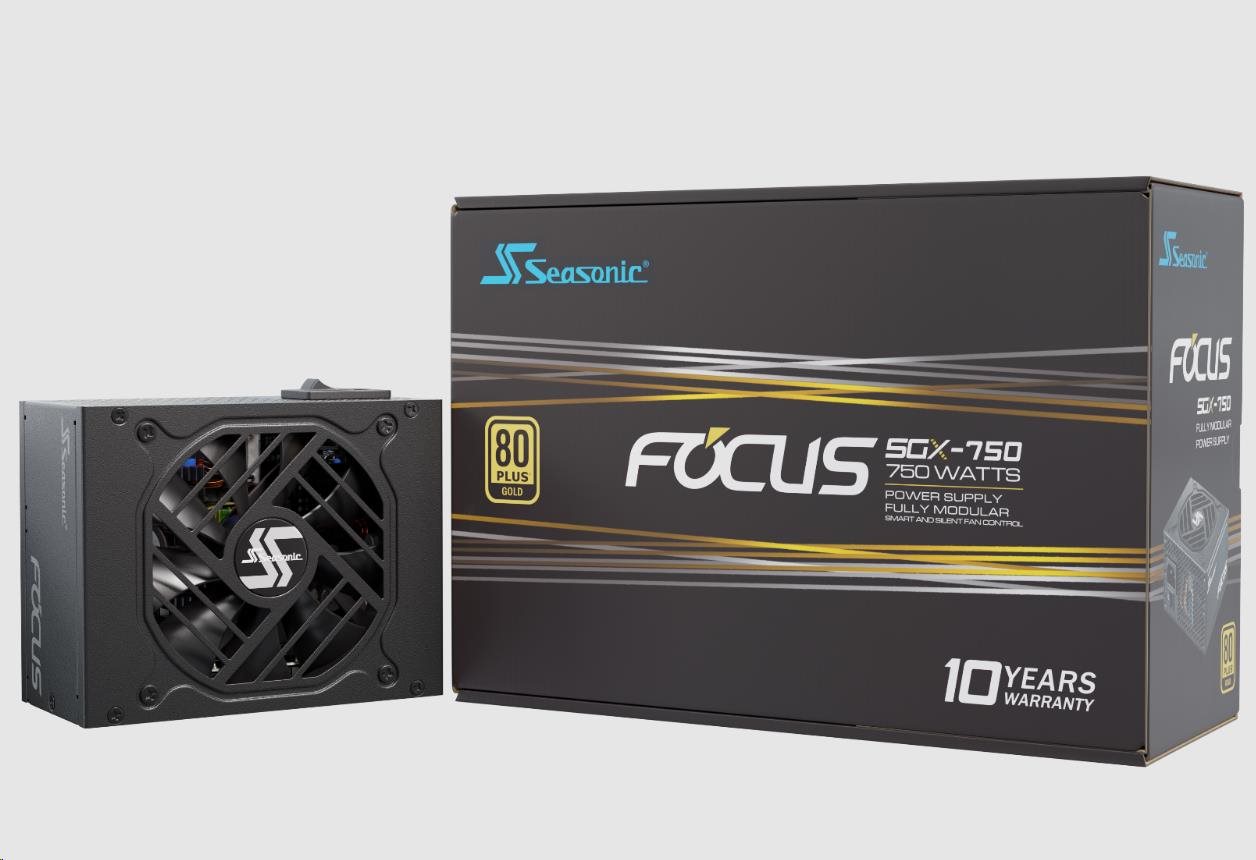

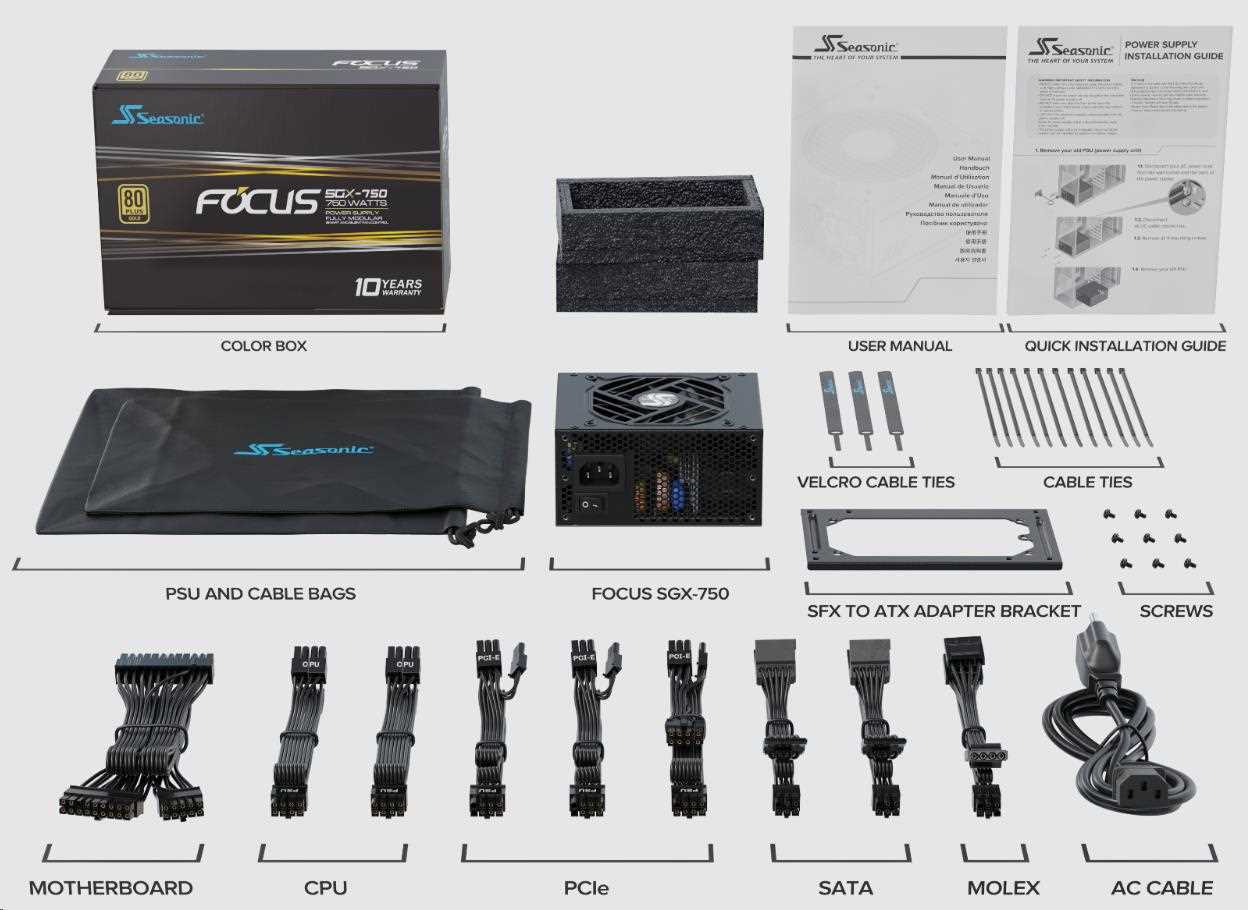

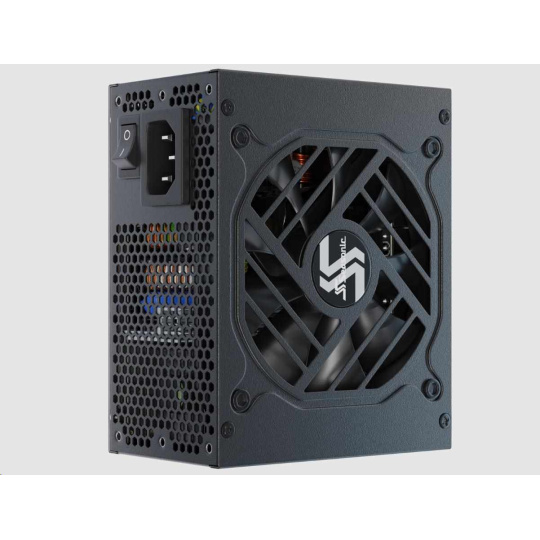

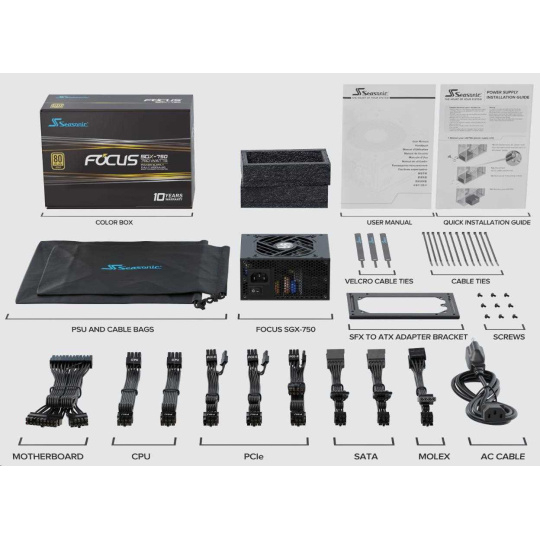

The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
- SFX 12 V / ATX 12 V
- Fully Modular
- 80 PLUS Gold Certified
- 10 Years Warranty
TECHNICAL SPECIFICATIONS
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel SFX 12 V / ATX 12 V |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |

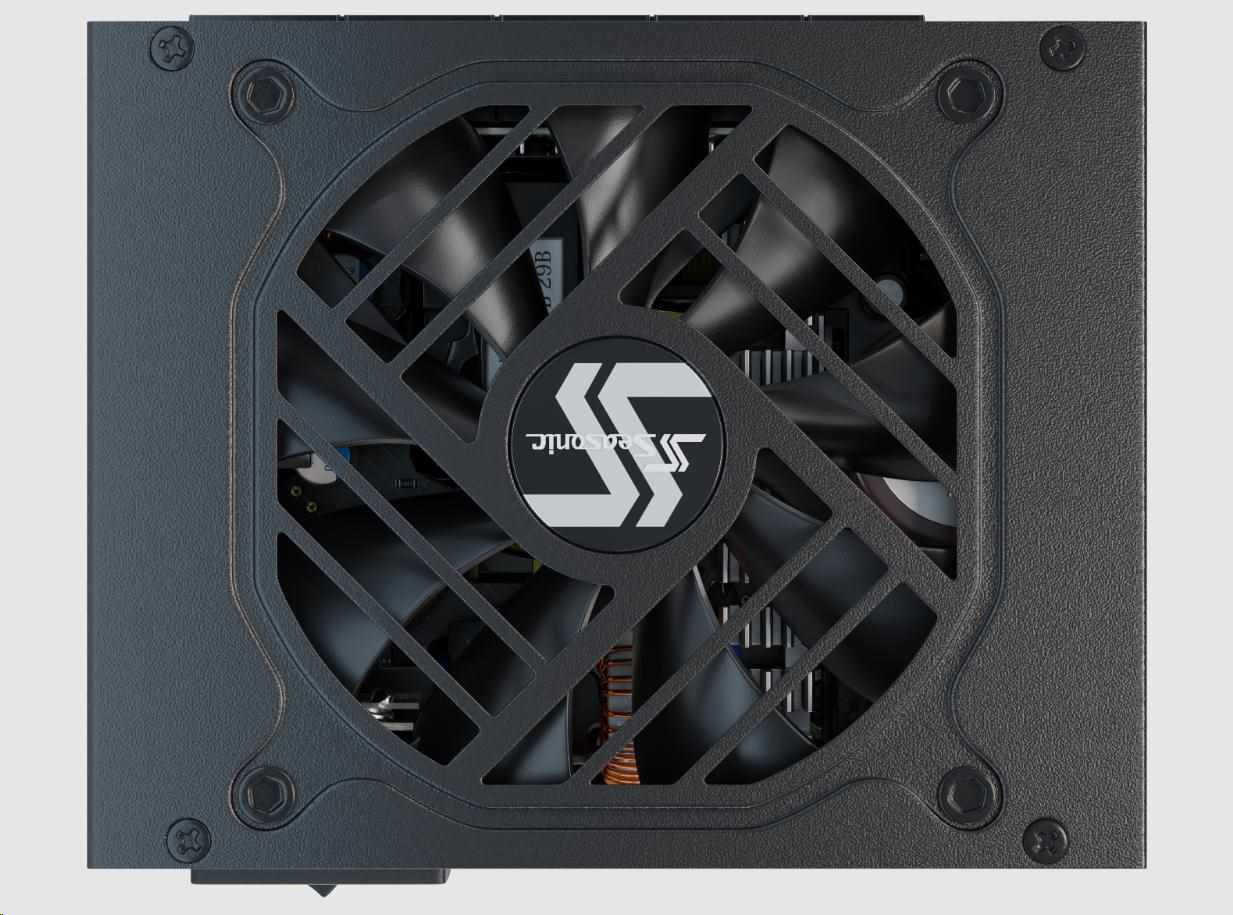

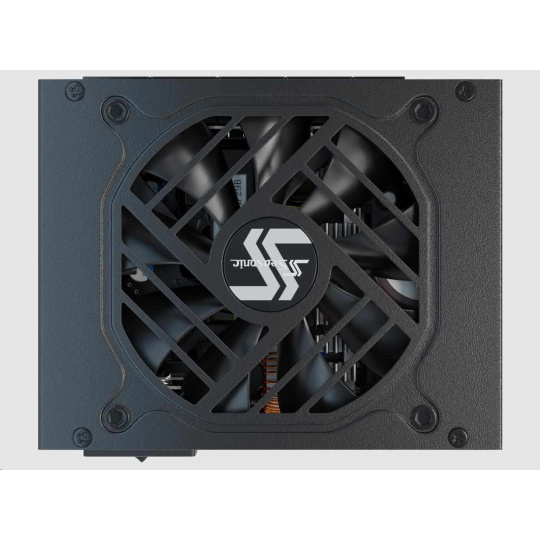

| Fan Size | 92 mm |
| Fan Control | Premium Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fully Modular |
| Cable type | Flat black cables |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 10 Years |

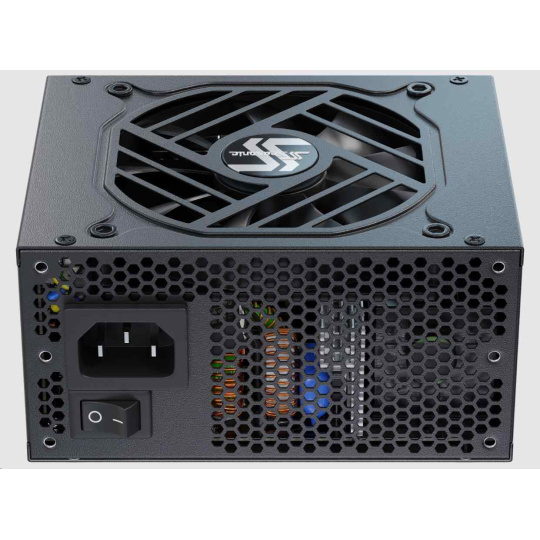

| AC Input | Voltage: 100 V - 240 V Current: 10 - 5 A Frequency: 50 Hz - 60 Hz |
.
ParametryPorovnání
Formát zdroje
SFX
Konektory
Molex
Konektory pro základní desku
EPS 8-pin
Vlastnosti zdroje
Modulární kabeláž
Efektivita zdroje
80 Plus Platinum
Modulární kabeláž
Ano
Podsvícení
Bez podsvícení
Výkon zdroje (W)
750
