TP-Link Archer AX72 Pro OneMesh/EasyMesh WiFi6 router (AX5400,2,4GHz/5GHz,4xGbELAN,1x2,5GbELAN/WAN,1xUSB3.0)
Popis a parametry
TP-Link Archer AX72 Pro OneMesh/EasyMesh WiFi6 router (AX5400,2,4GHz/5GHz,4xGbELAN,1x2,5GbELAN/WAN,1xUSB3.0)
TP-Link Archer AX72 Pro
Multigigabitový WiFi 6 router AX5400 s 2.5 Gigabit WAN/LAN Portem
- Gigabit WiFi pro 8K streamování – 5400 Mb/s WiFi pro rychlejší procházení, streamování a stahování, to vše současně.
- Plně vybavená Wi-Fi 6 – Je vybavena špičkovou strukturou 4T4R a HE160 v pásmu 5 GHz, která umožňuje ultrarychlé připojení 4,8 Gb/s.
- Připojí 100+ zařízení – Podporuje MU-MIMO a OFDMA pro snížení přetížení a zčtyřnásobení průměrné propustnosti.
- Široké pokrytí – 6× antény a Beamforming zajišťují široké pokrytí.
- HomeShield – prémiové bezpečnostní služby TP-Link udržují vaši domácí síť v bezpečí díky špičkovým funkcím pro ochranu sítě a internetu věcí.
- Více větracích otvorů, méně tepla– Vylepšená oblast větracích otvorů umožňuje ještlepší výkon.

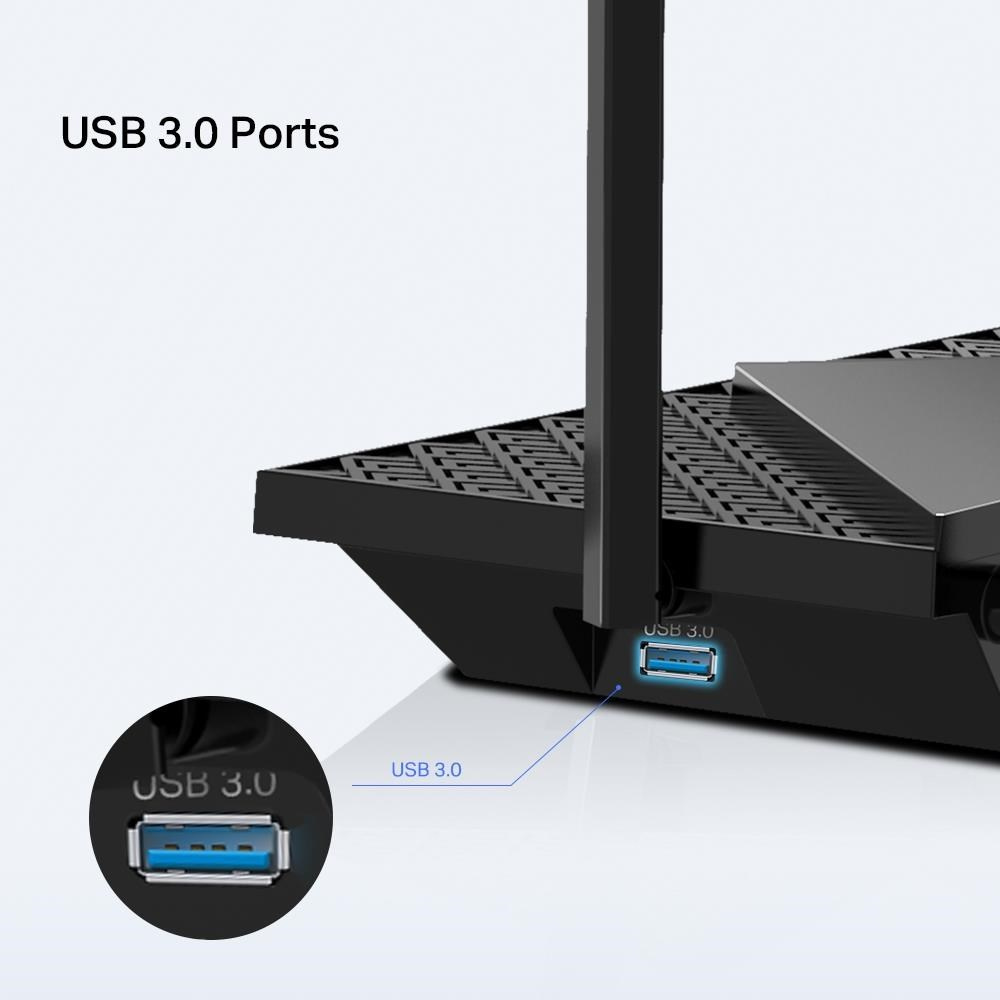

- USB Sharing – 1× port USB 3.0 umožňuje snadné sdílení médií a budování privátního cloudu.
- Snadné nastavení – Nastavte router během několika minut pomocí aplikace Tether.
Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/archer-ax72-pro/
Technické specifikace
| WIRELESS | |
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1 GHz Dual-Core CPU |

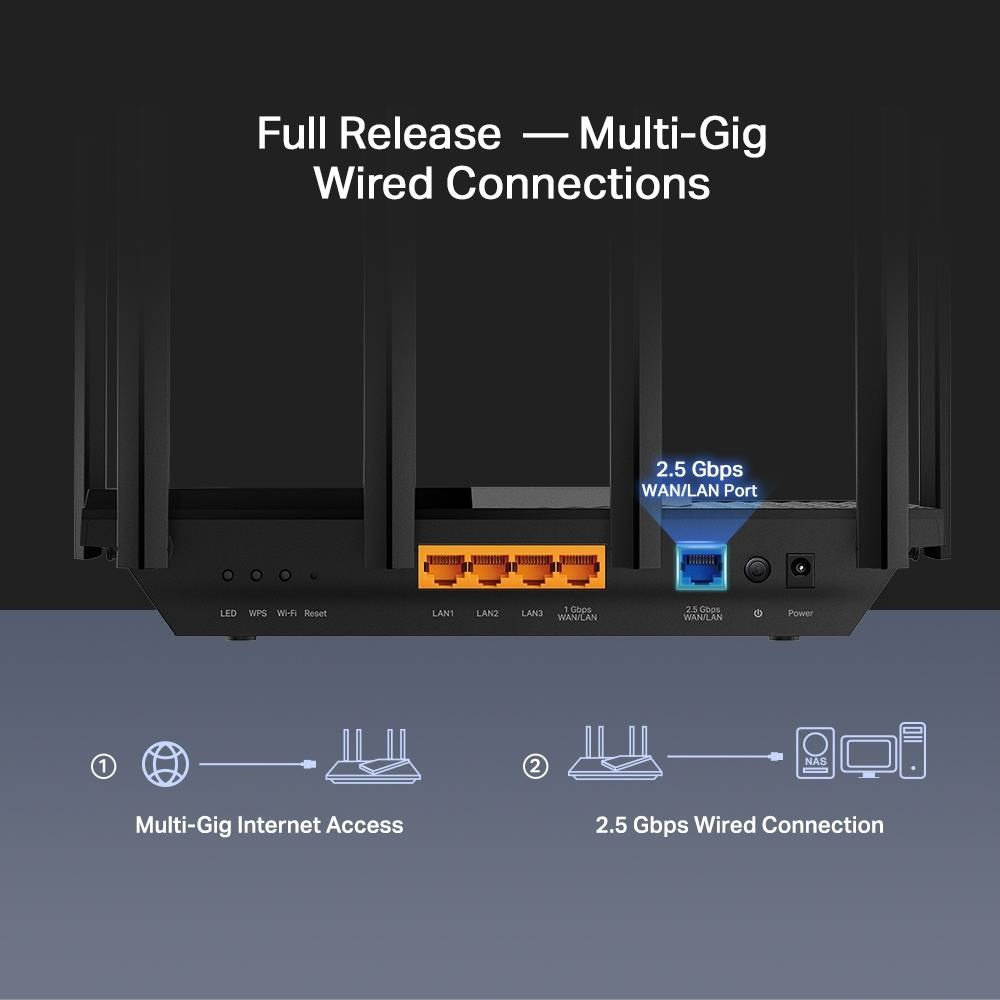

| Ethernet Ports | 1× 2.5 Gigabit WAN/LAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V = 2.5 A |
| SECURITY | |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity | 2.4GHz: 11ac VHT20 MCS0:-94.5dBm 11ac VHT20 MCS8:-72.5dBm 11ac VHT40 MCS0:-92.5dBm 11ac VHT40 MCS9:-69.5dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm 11ax HE40 MCS11:-62dBm 5GHz: 11ac VHT20 MCS0:-97dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS0:-95dBm 11ac VHT40 MCS9:-70dBm 11ac VHT80 MCS0:-91.5dBm 11ac VHT80 MCS9:-66dBm 11ac VHT160 MCS0:-86dBm 11ac VHT160 MCS9:-61dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91.5dBm 11ax HE40 MCS11:-62dBm 11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85.5dBm 11ax HE160 MCS11:-55dBm |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
| Package Contents | Wi-Fi Router Archer AX72 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
.
ParametryPorovnání
Typ aktivního prvku
AP (Access Point)
Frekvenční pásmo (GHz)
2,4
Připojení externí antény
Ne
Podporované standardy
802.11a/n
USB port
Ne
Další vlastnosti
Rodičovská kontrola
Slot na SIM kartu
Ne
Počet portů LAN
5
Použití
Vnitřní
Zabezpečení
WPS
Typ antény
Vestavěná
Počet portů LAN
5
