TP-Link EAP653 UR OMADA WiFi6 AP (AX3000,2,4GHz/5GHz,1xGbELAN,1xPoE-in)
Popis a parametry
TP-Link EAP653 UR OMADA WiFi6 AP (AX3000,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

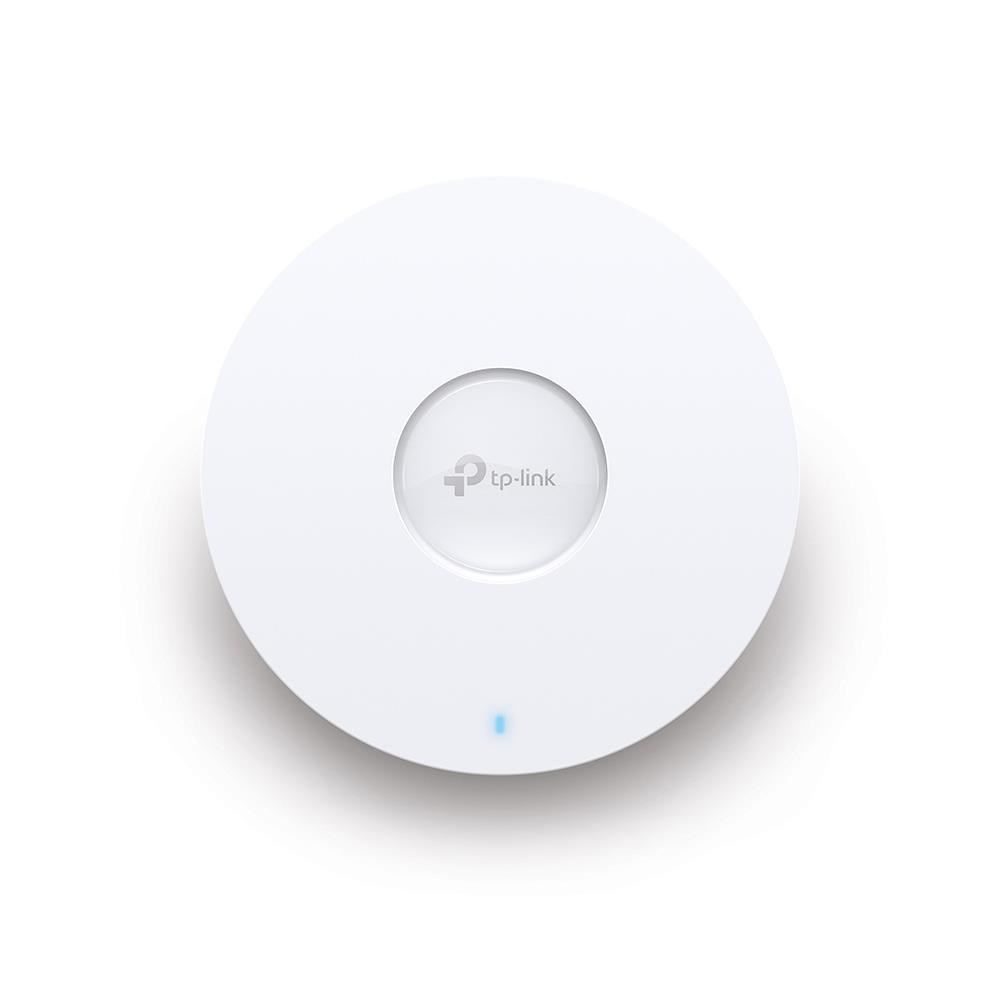

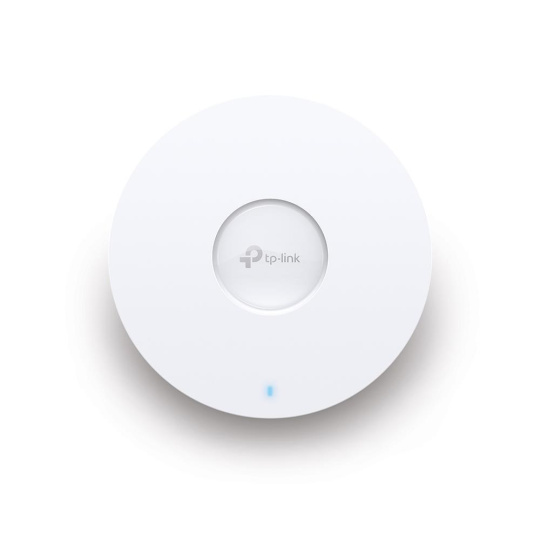

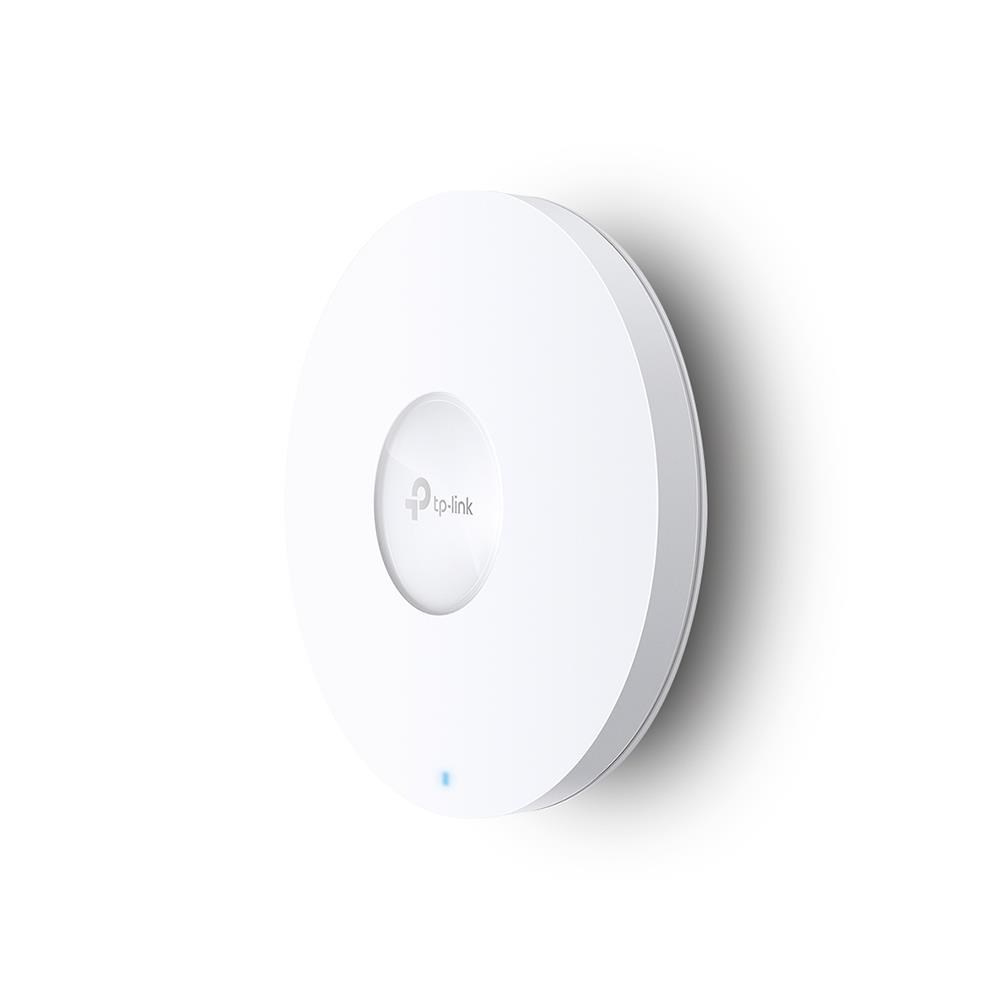

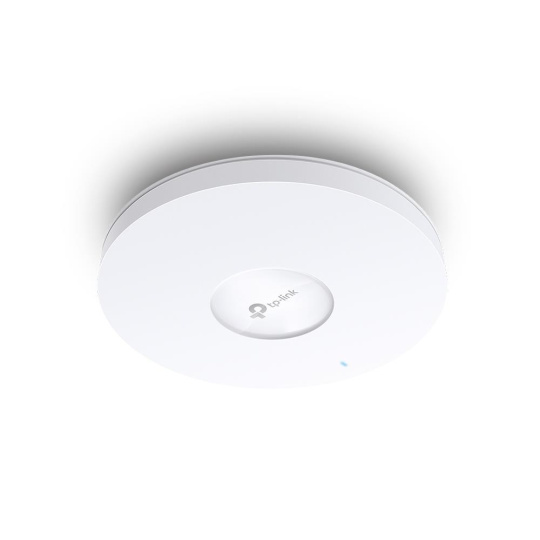

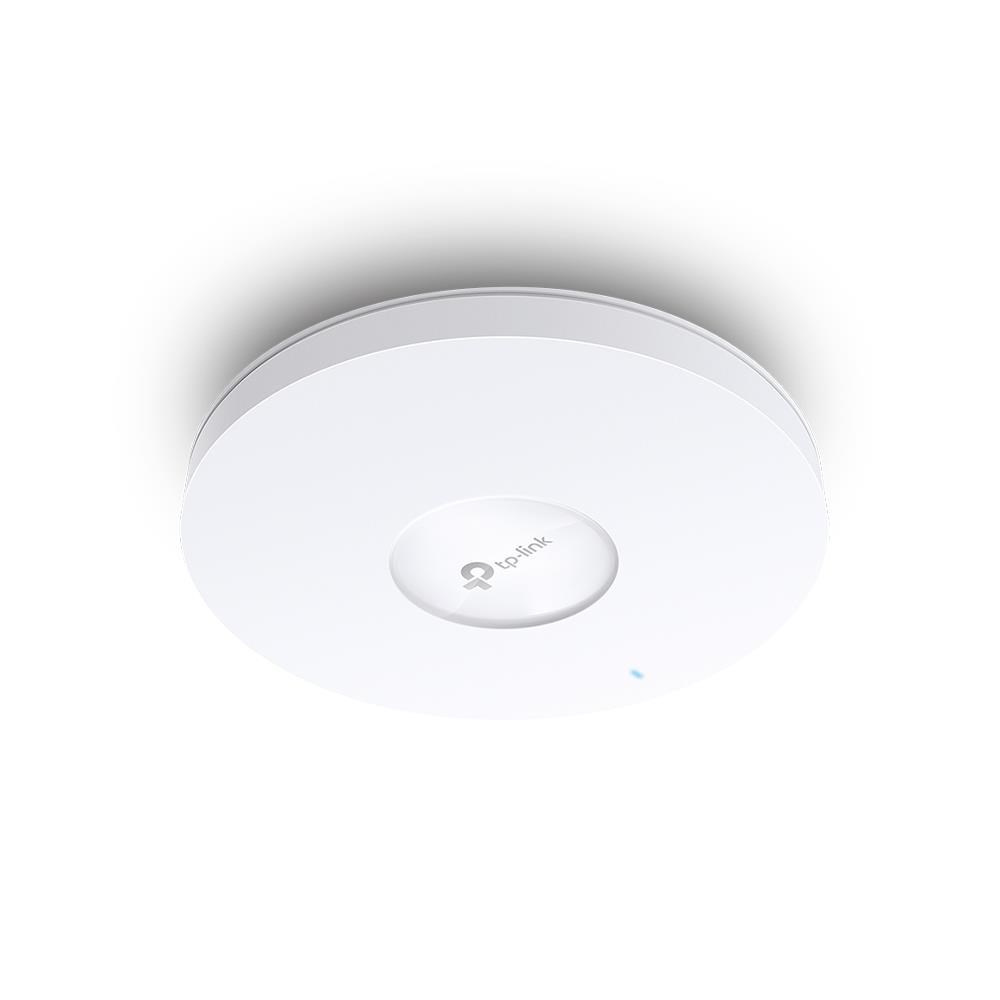

TP-Link EAP653 UR
Přístupový bod AX3000 WiFi 6 pro montáž na strop
- Velmi rychlé WiFi 6 rychlostí: - 2402 Mb/s na 5 GHz t+ 574 Mb/s na 2,4 GHz
- Bezdrátové pokrytí s mimořádným dosahem díky většímu počtu antén s vyšším vysílacím výkonem
- Podpora technologií WiFi 6, jako je HE160, 1024-QAM atd
- Pokročilé funkce: Omada Mesh, bezproblémový roaming atd
- Napájení PoE+: Podporuje standard 802.3at PoE+ i stejnosměrný proud (adaptér není součástí dodávky)
- Velmi tenký design: Elegantní design ?16cm × 3,3cm přináší větší agilitu.
- Integrace s platformou Omada SDN pro centralizovanou správu
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-access-point/eap653-ur/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | 1× Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE |
| Power Consumption | • EU: 14.2 W • US: 15.5 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi |

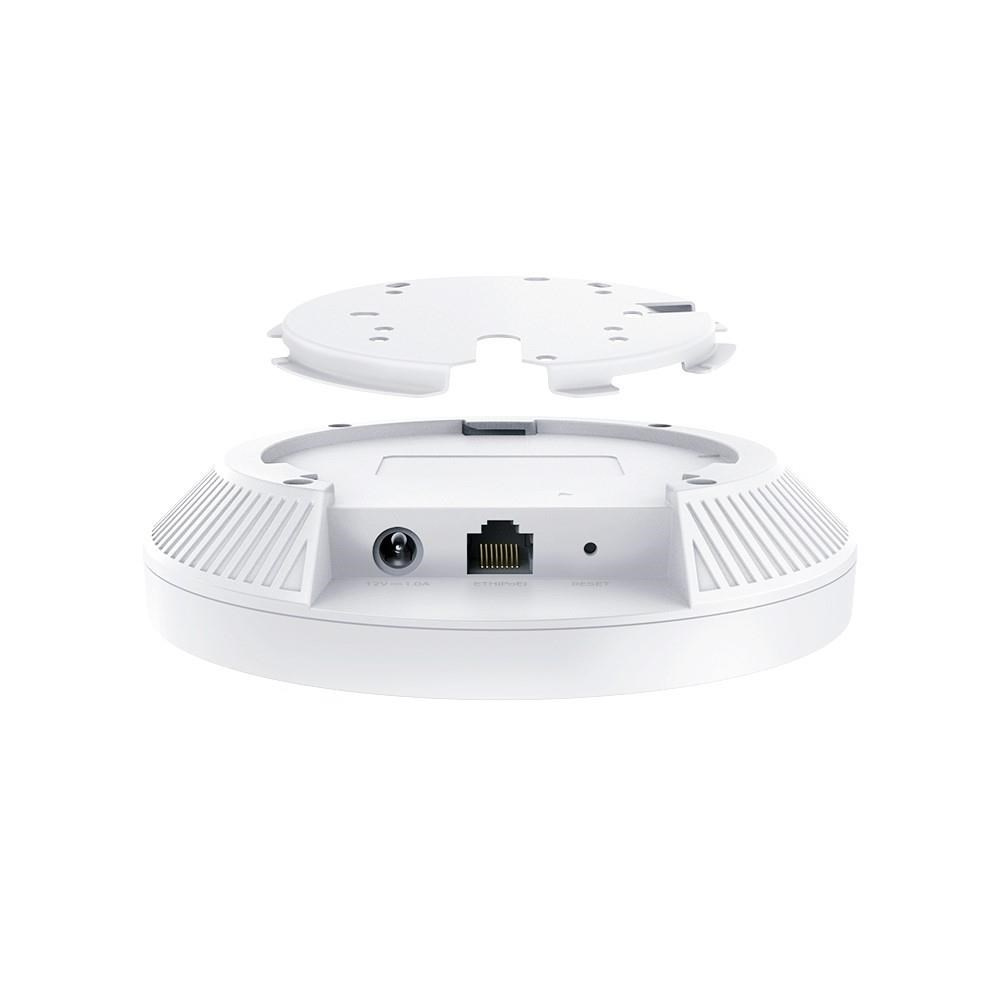

| Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
| WIRELESS FEATURES | |
| Coverage | 140?(1500 ft2)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Typ aktivního prvku
MU-MIMO
Frekvenční pásmo (GHz)
5
Připojení externí antény
Ne
Podporované standardy
802.11a/n
USB port
Ne
Další vlastnosti
Podpora Wi-Fi Mesh
Slot na SIM kartu
Ne
Použití
Vnitřní
Zabezpečení
WPA-PSK
Typ antény
Integrovaná
Typy PoE
PoE - In
Počet portů LAN
1
