TP-Link ER7406 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbEWAN/LAN,1xUSB3.0)

Funkce:Router, VPN; Počet portů LAN:5; Gigabit ethernet; USB port; Počet SFP portů:1; Další vlastnosti:Podpora IPv6, Firewall, Management, FTP server, VLAN.... více
4 323.14 Kč bez DPH
Skladem 3 ks
5 231 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 324213
EAN: 8885020622300
Záruka: 60 Měsíc(ů)
Výrobce: TP-link
Popis a parametry

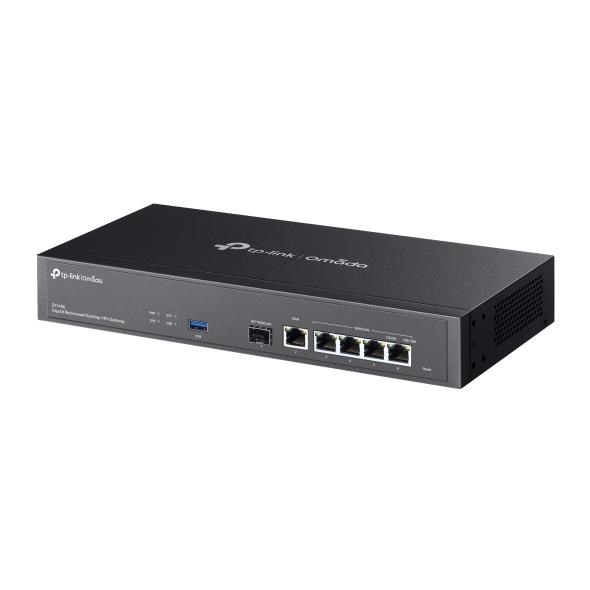

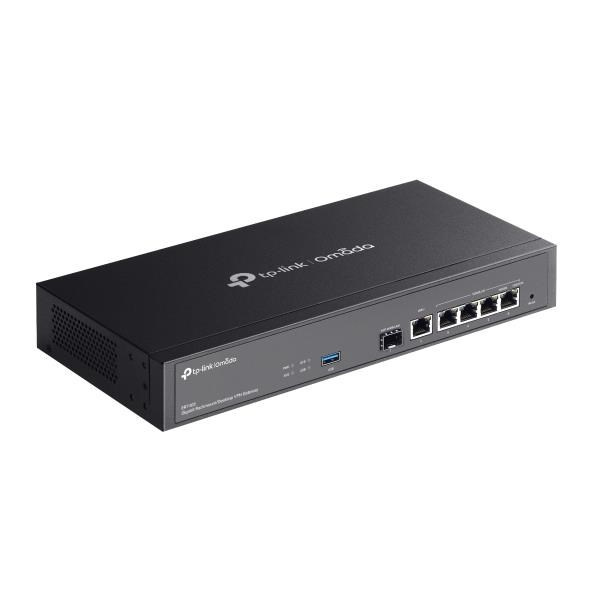

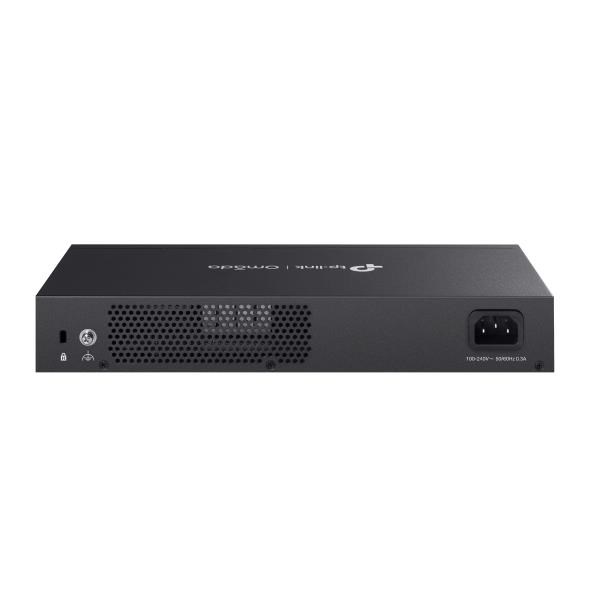

TP-Link ER7406 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbEWAN/LAN,1xUSB3.0)

TP-Link ER7406

Omada Gigabitová gateway VPN pro montáž do racku / na stůl

  • 1× gigabitový SFP WAN/LAN port
  • 5× gigabitových RJ45 portů (1× WAN, 4× WAN/LAN)
  • 1× USB 3.0 port (podporuje USB úložiště a LTE zálohování s LTE donglem)
  • Vyvažování zátěže na až 5 WAN portech zvyšuje využití více-linek širokopásmového připojení
  • Vysoce zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN
  • Centralizovaná správa v cloudu přes web nebo aplikaci Omada
  • Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro zvýšenou bezpečnost
  • Montáž do racku/stolní provedení

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7406

Technické specifikace

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets
• ARP Scanning§
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button
Power Supply 100-240VAC, 50/60Hz
Flash 128 MB NAND
DRAM 512 MB DDR4
LED PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop
• Rackmountable
Max Power Consumption • 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)
PERFORMANCE
IPS Throughput TCP: 229 Mbps;
UDP: 188 Mbps
DPI Throughput TCP: 933 Mbps;
UDP: 927 Mbps
GRE • Unencrypted: 611.9 Mbps
• Encrypted: 325.0 Mbps
WireGuard VPN 341.3 Mbps
Concurrent Session 150
New Sessions /Second 5,3
NAT (Static IP) 945.3 Mbps / 940.5 Mbps
NAT(DHCP) 939.6 Mbps / 940.9 Mbps
NAT(PPPoE) 943.6 Mbps / 940.9 Mbps
NAT (L2TP) 880.1 Mbps / 859.0 Mbps
NAT (PPTP) 855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps
OpenVPN 139.1 Mbps
L2TP VPN Throughput • Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps
PPTP VPN Throughput • Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps
SSL VPN Throughput 131.6 Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,279 pps / 81,275 pps
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing • Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
GRE ? (Only in Standalone Mode)
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)**
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)**
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)**
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User /Voucher*/ SMS/Radius*)
• External Radius Server
• External Portal Sever<*
• LDAP§
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute) (only in Standalone Mode)
• NTP Synchronize (only in Standalone Mode)
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
.
ParametryPorovnání
USB port
Ano
Gigabit ethernet
Ano
Další vlastnosti
Firewall
Další vlastnosti
Management
Další vlastnosti
VLAN
Další vlastnosti
FTP server
Další vlastnosti
Podpora IPv6
Funkce
Router
Funkce
VPN
Počet portů LAN
5
Počet SFP portů
1
