TP-Link OMADA JetStream switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)
Popis a parametry
TP-Link OMADA JetStream switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)

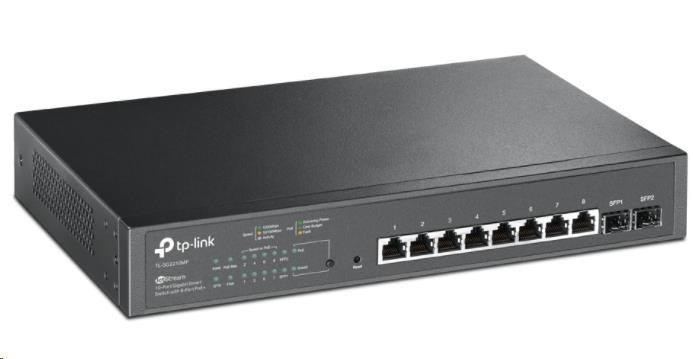

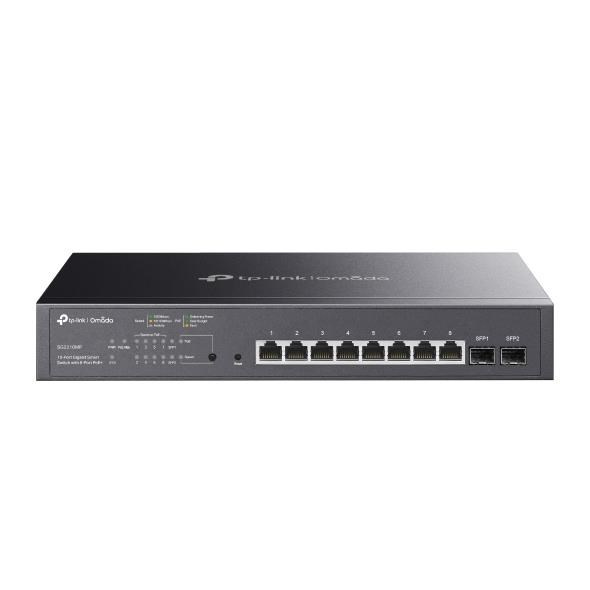

TP-Link JetStream switch SG2210MP
10portový gigabitový inteligentní switch JetStream s 8 porty PoE+
- Příkon přes PoE až 150 W: 8 portů napájených přes PoE+ vyhovující standardu 802.3at/ af s celkovým napájením až 150W.
- Plné gigabitové porty: 8 gigabitových portů s napájením přes PoE + a 2 gigabitové SFP sloty poskytují vysokorychlostní připojení.
- Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralizovaná správa cloudů a inteligentní monitorování.
- Centralizovaná správa: Přistup do cloudu a aplikace Omada pro mimořádné pohodlí a snadnou správu.
- Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, ověřování dosahu, a více.
- Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
Více informací o technologii TP-Link PoE >
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2210mp/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots |
| Network Media | • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) • 100BASE-FX: MMF, SMF • 1000BASE-X: MMF, SMF |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Mounting | Rackmount/Desktop |
| Max Power Consumption | • 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected) |
| Max Heat Dissipation | • 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • DHCP Relay - DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2) |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2210MP • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Technologie
Gigabit Ethernet 1000Mbps
Management
SNMP/RMON
Management
Web
Vlastnosti switche
Funkce POE po portech
Provedení
Rack mounted 19"
Provedení
Desktop
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ne
Počet portů LAN
8
Maximální počet portů
10
Počet SFP portů
2
PoE budget (W)
150
Počet PoE+ portů
8
