TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
Popis a parametry
TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

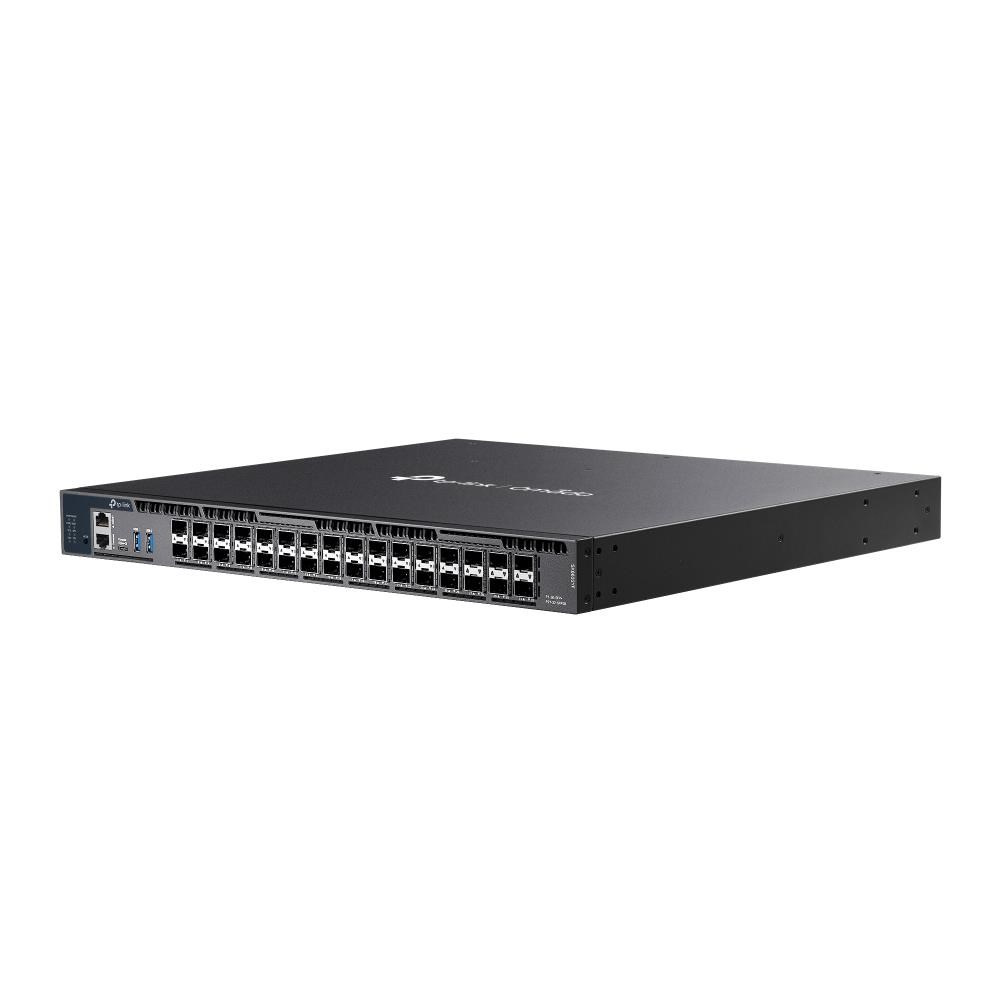

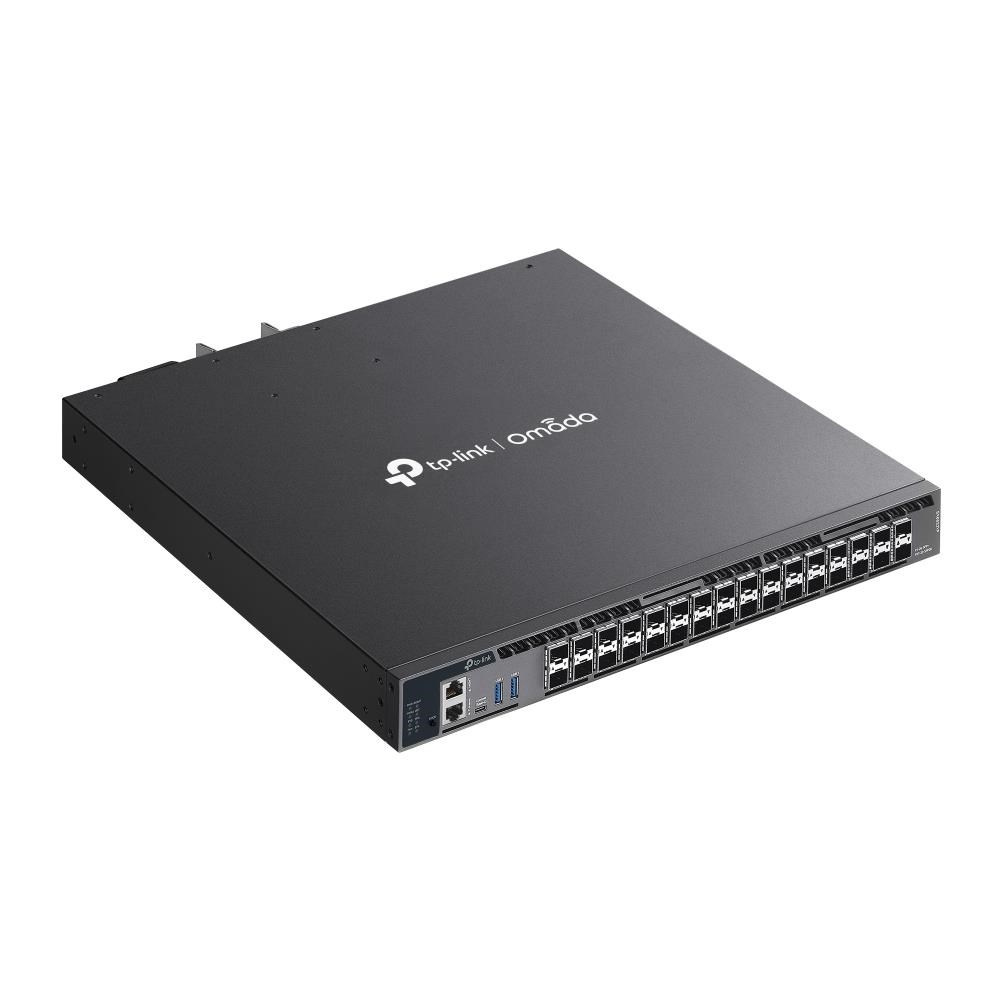

TP-Link OMADA switch SX6632YF
26portový 10G stohovatelný L3 řízený agregační switch se 6x 25G sloty
- 26× 10G SFP+ sloty a 6× 25G SFP28 sloty
- Přepínací kapacita 820 Gbps
- Fyzické stohování pro vestavěnou redundanci a výkon
- Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Bezpečnostní strategie: ACL, Port Security, DoS Defend, 802.1X
- Vysoce dostupné se dvěma napájecími zdroji*, VRRP a ERPS
- Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
- Samostatná správa přes web, CLI, SNMP a RMON
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx6632yf/#specifications
Technické specifikace
HARDWARE FEATURES | |
Interface | • 6× 10/25G SFP28 Slots • 26× 10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type C Console Port • 1× RJ45 Management Port |

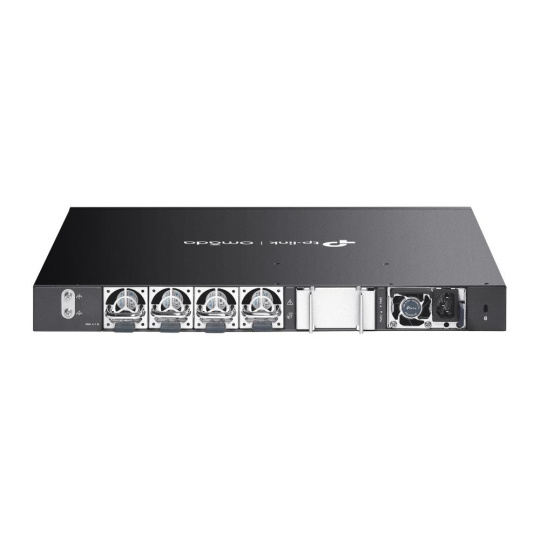

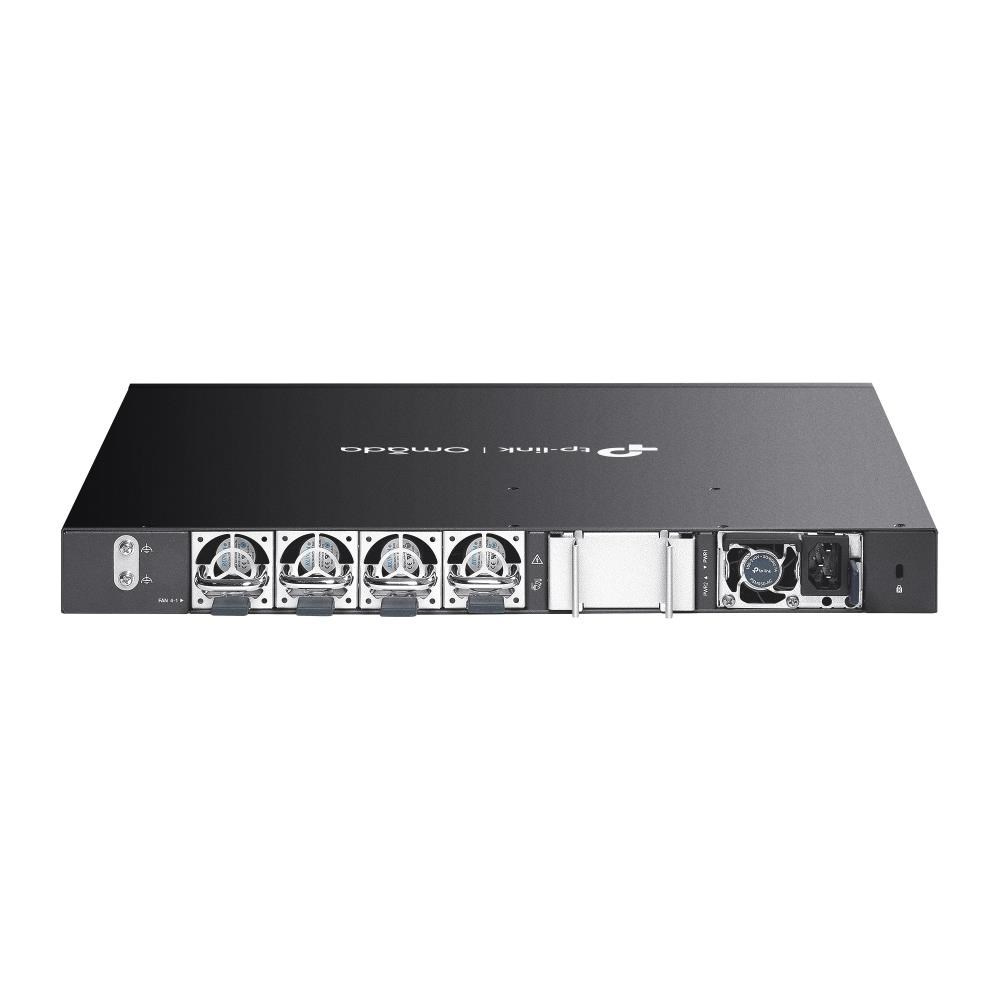

Fan Quantity | Four field-replaceable and hot-swappable fans |
Physical Security Lock | ? |
Power Supply | Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) |
Power Consumption | 86.7 W (110 V/60 Hz) |
Dimensions ( W x D x H ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
Mounting | Rack Mountable |
Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) |
PERFORMANCE | |
Switching Capacity | 820 Gbps |
Stacking | • Stacking Number: 8 • Stacking Port: 25G SFP28 • Stack Bandwidth: Up to 300 Gbps (6 stack ports) |
Packet Forwarding Rate | 610.1 Mpps |
MAC Address Table | 128 K |
Packet Buffer Memory | 8 MB |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • Voice VLAN • User-Defined OUI |
L3 Features | • Routing IP Interfaces - Static Routing - Host Route Table - RIP v1/v2 - RIPng - OSPFv2/v3 - VRRP - ECMP - ARP Proxy • DHCP - DHCP Server - DHCP Relay - DHCPv6 Relay - DHCP Snooping - DHCPv6 Snooping • Multicast - Multicast Table - IGMP v1/v2/v3 - Static Multicast Routing |
L2 and L2+ Features | • Switching - Port Mirroring(SPAN) - RSPAN - Loopback Detection - Traffic Monitor • Trunking - Static LAG - LACP 802.3ad • Mac Address - MAC Address Table - Static MAC - Dynamic MAC Address - Filtering MAC Address - MAC Flapping • STP - STP 802.1d - RSTP 802.1w - MSTP 802.1s - Loop/Root/TC Protect - BPDU Protect/Filtering • ERPS • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering |
Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† |
VLAN | • IEEE 802.1q Tag VLAN • MAC VLAN • Protocol VLAN • VLAN VPN(QinQ) • Private VLAN • GARP/GVRP • Voice VLAN • Multicast VLAN • Management VLAN |
Security | • Access Security - Port/MAC/IP-based Access Control - SSL - SSH • Port Security • Port Isolation • CPU-Deffend • Time Range - Time Range Defination - Periodic Time Range - Absolute Time Range - Time Holiday • ACL - Entries - L2/L3/L4 ACL - ACL Action - ACL over VLAN - ACL over Port • IP-MAC Binding - IP+MAC+PORT+VID Binding - Manual Binding - ARP Scanning - DHCP Filter - DHCPv6 Filter - DHCP Option 82 • ARP Inspection (Dynamic ARP Inspection) • IP Source Guard • IPv6 Source Guard • ND Neighbor Discovery/ ND Snooping/ ND Filtering • DoS Defend • Authentication, Authorization & Accounting (AAA) - 802.1X Port Authentication - RADIUS Authentication - RADIUS Accounting - TACACS+ Authentication |
MANAGEMENT | |
Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log |
OTHERS | |
Package Contents | • SX6632YF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | • Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters |
ParametryPorovnání
Technologie
10 Gigabit optika
Management
Web
Management
SNMP/RMON
Provedení
Rack mounted 19"
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Funkce
L3
Funkce
Stohovatelnost
Ventilátor
Ano
Počet portů SFP28
5
Počet portů LAN
26
Přenosová rychlost LAN (Mb/s)
10000
Maximální počet portů
32
Počet SFP+ portů
26
