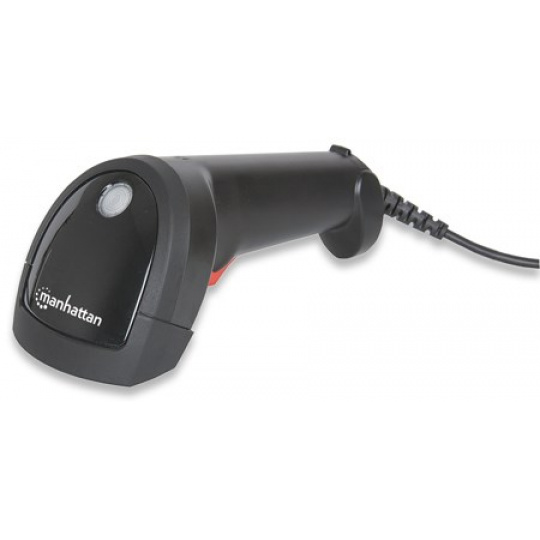

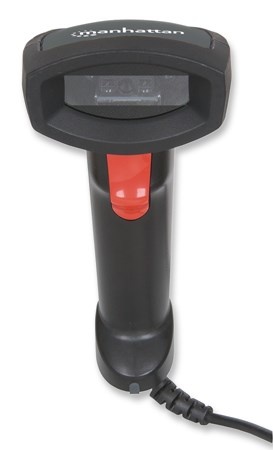

MANHATTAN Čtečka čárových kódů CCD Gun Type, CCD, IP54, 500 mm Scan Depth, Black, Enterprise Box
MANHATTAN Čtečka čárových kódů CCD Gun Type, CCD, IP54, 500 mm Scan Depth, Black, Enterprise Box
Improve speed, accuracy and productivity.
Manhattan Linear CCD Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts, and has a rugged impact-resistant housing for years of reliable service of reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Features:
Helps speed data entry, reduce errors and improve efficiency; ideal for retail transactions and automated processes
Keyboard Wedge Decoder displays data as if directly entered from keyboard
Wide scan field provides quick, accurate reads with up to 500 scans per second up to 500 mm (20 in.) away
Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more
Switchable interface integrates with most PCs
Easy to install and use without software or special training
Three-Year Warranty
Specifications:
Standards and Certifications
FCC
CE
RoHS
General
Light source: 632nm, visible red LED
Scanner range: 500 mm
Resolution: 0.1 mm (4 mil) @ PCS 0.9
Reading indicator: tone and LED
Ambient light: 100,000 lux maximum (sunlight)
Scan rate: Smart detection, up to 500 scans/second
Interface: KBW / RS232 / USB (HID or Virtual Comport)
Switch: trigger
Code Support
UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacy, Code 128, Codabar/MW7, Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code)
Physical
Dimensions, scanner: 18 x 7 x 7 cm (7 x 2.76 x 2.76 in.)
Weight: scanner 0.15 kg (0.33 lbs.)
Operating temperature: 0 - 50°C
Storage temperature: -20 60°C
Relative humidity: 20 - 95% (non-condensing)
Housing: ABS and rubber
Sealing: IP54
Electrical
Supply voltage: DC +5 V +/- 5%
Current draw: 70 mA
Package Contents

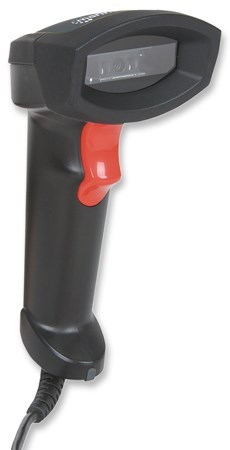

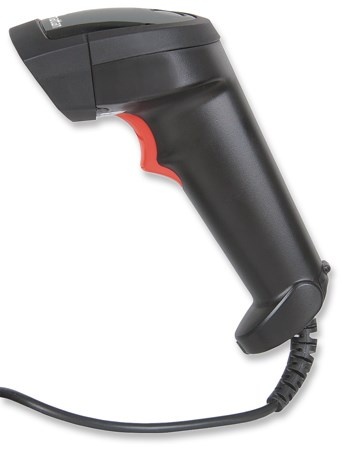

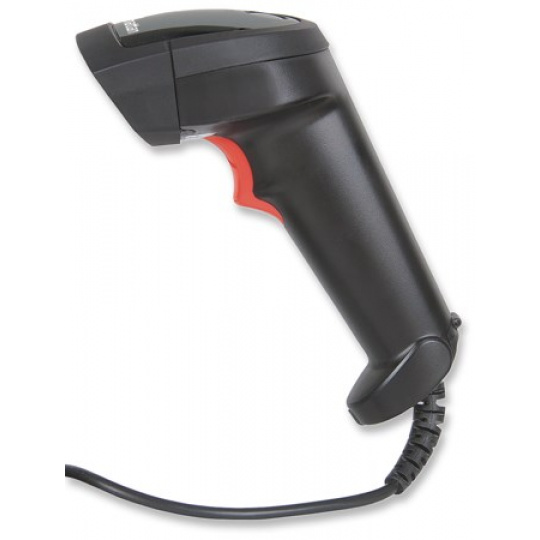

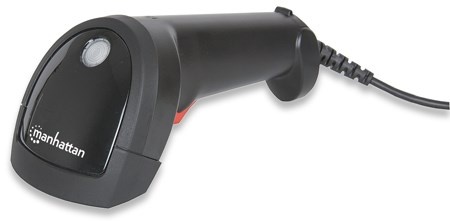

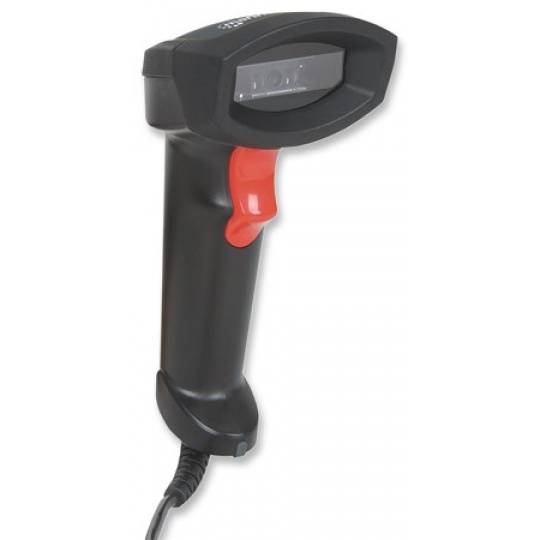

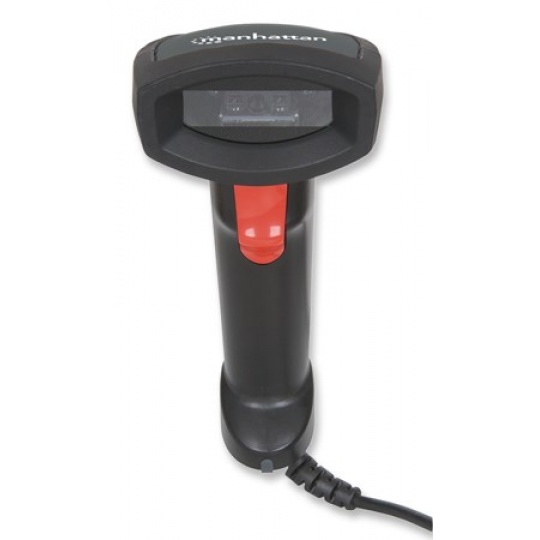

Long Range Linear CCD Barcode Scanner
User manual
